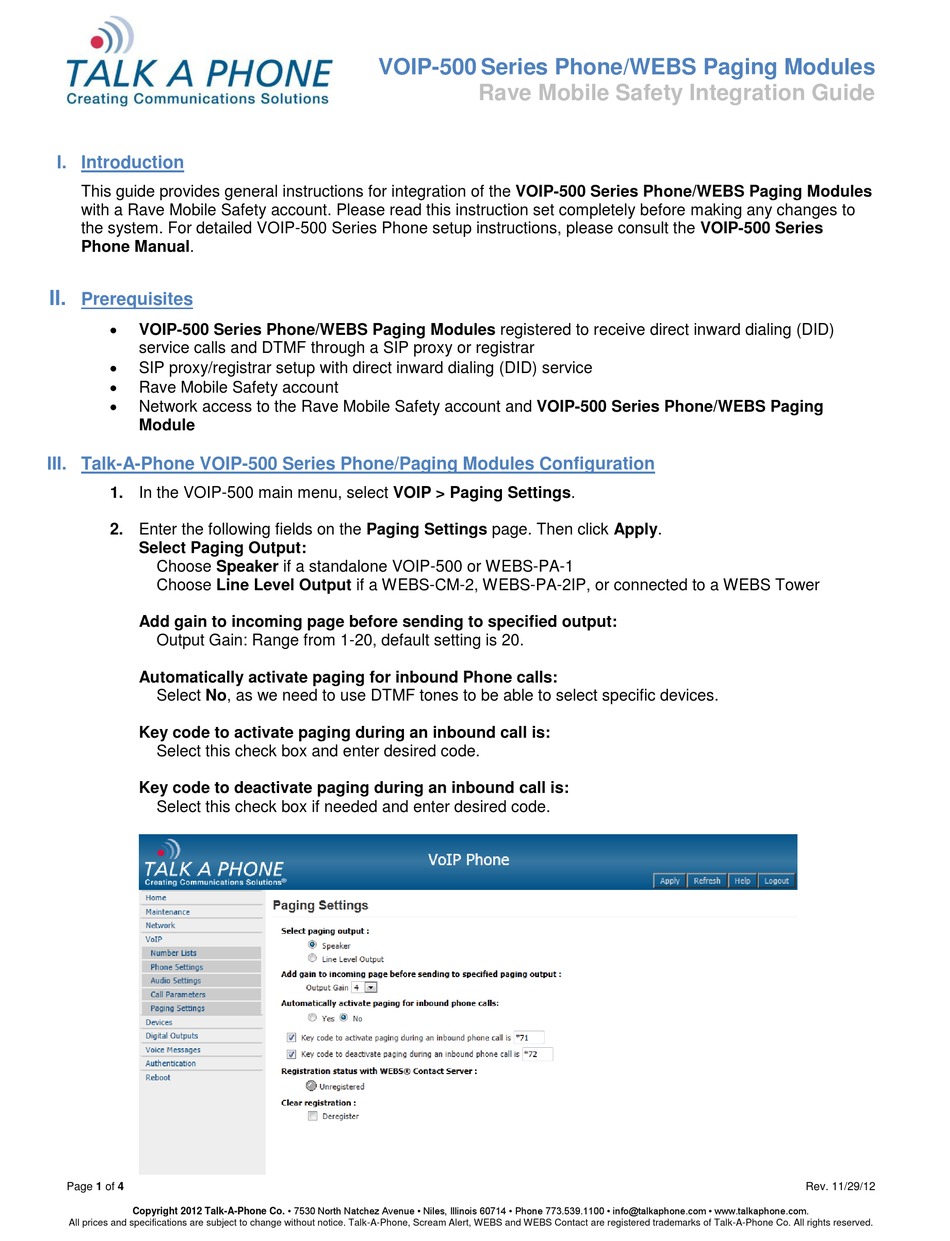

Talkaphone VOIP-500 Series Integration Manual

I. Introduction
This guide provides general instructions for integration of the VOIP-500 Series Phone/WEBS Paging Modules
with a Rave Mobile Safety account. Please read this instruction set completely before making any changes to
the system. For detailed VOIP-500 Series Phone setup instructions, please consult the VOIP-500 Series
Phone Manual.
II.
Prerequisites

VOIP-500 Series Phone/WEBS Paging Modules registered to receive direct inward dialing (DID)
service calls and DTMF through a SIP proxy or registrar

SIP proxy/registrar setup with direct inward dialing (DID) service

Rave Mobile Safety account

Network access to the Rave Mobile Safety account and VOIP-500 Series Phone/WEBS Paging
Module
III. Talk-A-Phone VOIP-500 Series Phone/Paging Modules Configuration
1. In the VOIP-500 main menu, select VOIP > Paging Settings.
2. Enter the following fields on the Paging Settings page. Then click Apply.
Select Paging Output:
Choose Speaker if a standalone VOIP-500 or WEBS-PA-1
Choose Line Level Output if a WEBS-CM-2, WEBS-PA-2IP, or connected to a WEBS Tower
Add gain to incoming page before sending to specified output:
Output Gain: Range from 1-20, default setting is 20.
Automatically activate paging for inbound Phone calls:
Select No, as we need to use DTMF tones to be able to select specific devices.
Key code to activate paging during an inbound call is:
Select this check box and enter desired code.
Key code to deactivate paging during an inbound call is:
Select this check box if needed and enter desired code.
