Evikon PluraSens E2618-CO-DM Manual

Carbon monoxide
Colourless, odourless, and tasteless gas. Highly toxic.
Synonyms: Carbonous oxide, Carbon(II) oxide, Flue gas, Monoxide
Chemical formula CO
Molar weight 28
Relative gas density (to air) 0.97
Conversion 1 ppm = 1.15 mg/m
Boiling point −191.5 °C
Low explosive limit (LEL), % vol in air 12.5
Upper explosive limit (UEL), % vol in air 74
Odour Odourless
Hazards Highly toxic. Mild poisoning causes
lightheadedness, confusion, headache,
dizziness, and flu-like effects. Larger
exposures can lead to toxicity of the
CNS and heart, and death. After acute
poisoning, long-term problems may
occur. CO also have negative effects
on a baby if exposed during
pregnancy. Chronic exposure to low
levels can lead to depression,
confusion, and memory loss.
Exposure limits TWA 40 mg/m
(NIOSH)
IDLH 1380 mg/m
3
Conversion of ppm to mg/m is calculated for 25°C and 1 atm.
Installation guidelines
(See Installation and connections section for general information.)
Carbon monoxide has practically the same density as air and spreads evenly in the
room. Install the sensor in a proximity to possible leakage or generation source, taking
into consideration the temperature of the gas, the air currents in the room etc.
Calibration
E2618-CO transmitters have been calibrated by Manufacturer with standard gas
mixtures before delivery. Provided that the sensor is used under moderate
conditions, field recalibration is recommended every 6 months. Please contact your
dealer for more information.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with soft damp cloth. Do not use any abrasive cleaning agents. Do
not immerse the device into water or any cleaning media.
Delivery set
–Transmitter E2618 (wall mount or duct mount version)
– Mounting accessories:
4 screws with plastic dowels for wall mount version
rubber flange for duct mount version.
fixing clamp for remote probe version
E2618-CO_UM_EN
Specifications
Sensor type
Sampling method
Detection range
Maximum overload
3
Resolution / digital unit
Response time T90
Repeatability
Sensor lifetime
Calibration interval
Signal update
Load resistance
Digital interface
Power supply options
Power consumption
Analog outputs
Outputs assignment
Cable connections
3 /35 ppm
Enclosure
3
/1200 ppm
Dimensions
CE marking
Operating conditions
LCD option
Operating temperature
Display dimensions
Number of digits
Character height
Other features
Other options
Remote probe
Warranty
This product is warranted to be free from defects in material and workmanship for a
period of one year from the date of original sale. During this warranty period
Manufacturer will, at its option, either repair or replace product that proves to be
defective. This warranty is void if the product has been operated in conditions outside
ranges specified by Manufacturer or damaged by customer error or negligence or if
there has been an unauthorised modification.
Evikon MCI OÜ
Tel. +372 733 6310
Rev 16.07.2019
electrochemical cell
diffusion
0...1000 ppm
2000 ppm
1 ppm
< 30 s
< ± 5%
> 6 years
6 months
every 1 second
R < (Us - 2 V) / 22 mA for 4-20 mA
L
R > 250 kOhm for 0-10 V mode
L
RS485, Modbus RTU protocol; no galvanic isolation
11...30 VDC or 24 VAC
< 2 VA
2 × 4-20 mA / 0-10 V, user settable
OUT1 2 gas; OUT2 2 gas
NOTE For LCD version only OUT1 is available.
screwless spring loaded terminals
grey ABS, wall or duct mount, protection class IP65
H82 × W80 × D55 mm
according to 2014/30/EU and EN61326-1 requirements
-20...+50 °C, 15...90 %RH, atmospheric pressure
non ATEXrated areas, non-aggressive atmosphere
NOTE The sensor may exhibit sensitivity to acetylene,
etylene, hydrogen and nitric oxide
0...+50 °C
72 × 36 mm
3.5 7-segment
14 mm
Backlight
Protection IP65, default cable length 3.0 m;
max height 80 mm, max diameter 65 mm
Teaduspargi 7, Tartu info@evikon.eu
50411 Estonia www.evikon.eu

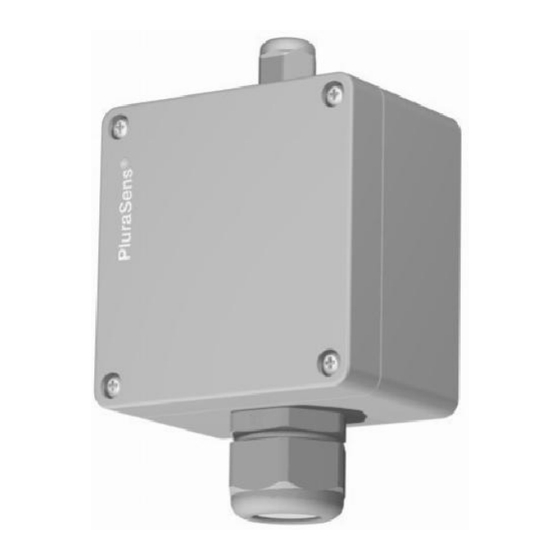

Carbon Monoxide Transmitter
E2618-CO
User Manual
®
PluraSens
