Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
Description

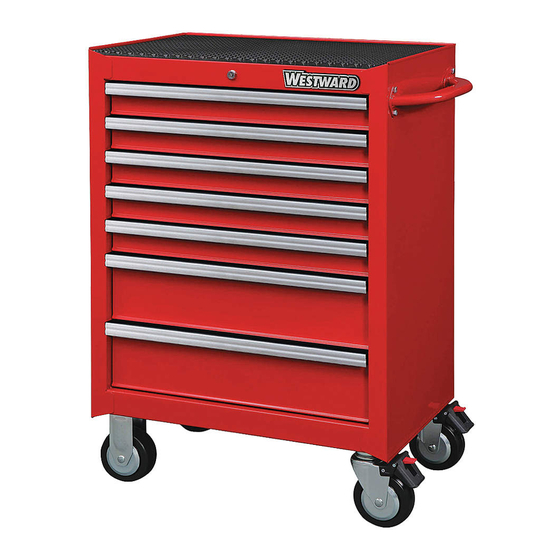

This Westward heavy-duty trolley has a durable coating and finish, sturdy construction, and heavy load capacity to
extend product life. Heavy-duty full extension ball bearing slides ensuring smooth functionality of all drawers.
Ball bearing slides have a quick release design that gives great flexibility when reconfiguring the drawers. And auto
return features of the chest is for added safety to prevent unwanted, accidental opening of drawers while in transit. The
trolley includes an internal locking system for added security. This trolley is ideal for professional mechanics, and garage
owners interested in storing and organizing tools and parts.
Unpacking
When unpacking unit, please ensure the unit is upright. Avoid using sharp objects to open the unit.
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier.
Specifications and Dimensions
Mold
32H888,32H889,32H890
32H894,32H895,32H896
Loading Capacity of Drawers
Width of drawer
26" (660mm)
42" (1,066mm)
57" (1,448mm)
72" (1,829mm)
MGC200002
Printed in Taiwan
09/12
32H888-32H890
Type
Casters
5"X 2" PP casters
Heavy Duty
5"X 2'" PP casters
Heavy Duty
Max. Load
80lb. (35Kg)
100lb. (45Kg)
130lb. (59Kg)
260lb. (118Kg)
32H888-32H890, 32H894-32H896
TROLLEY
32H894-32H896
Dimensions (Imperial / Metric)
No. of
Drawer
Width
7
26.7"(678MM)
5
26.7"(678MM)
1
Depth
Height
18"(457MM)
39.4"(1000MM)
18"(457MM)
33.3"(846MM)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Westward 32H888
Summary of Contents for Westward 32H888
- Page 1 32H894-32H896 Description This Westward heavy-duty trolley has a durable coating and finish, sturdy construction, and heavy load capacity to extend product life. Heavy-duty full extension ball bearing slides ensuring smooth functionality of all drawers. Ball bearing slides have a quick release design that gives great flexibility when reconfiguring the drawers. And auto return features of the chest is for added safety to prevent unwanted, accidental opening of drawers while in transit.
-
Page 2: General Safety Information
Westward Operating Instructions and Parts Manual 32H888-32H890, 32H894-32H896 General Safety Information Please ensure all drawers must be closed and locked completely before moving the trolley. Handle and swivel casters must be attached on the same side of the product. Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an un-level surface, which may cause personal injury or product damage. -
Page 3: Limited One-Year Warranty
Westward Operating Instructions and Parts Manual 32H888-32H890, 32H894-32H896 TROLLEY ASSEMBLY Side handle After unpacking unit, inspect carefully for parts. The side handle is Washer composed of the handle, washers, and screws. Please assemble the handle as figure shown. The handle should be on the same side as the brake casters. - Page 4 Westward Operating Instructions and Parts Manual 32H888-32H890, 32H894-32H896 TROLLEY Replace the lock parts To release lock set: ① using hand tool like pinchers. 1. Remove the spring clip ②, ③, 2. Pull out the whole central lock including bolt lock central ④.
-
Page 5: Repair Parts List
32H852-32H857, 32H888-32H896 TROLLEY To remove the drawer: 1. To remove the drawer, release the retaining clips by pushing the lever up on one side and down on the other side simultaneously. 2. Pull the drawer out. To install the drawer: Place drawer on the slide rail and push into unit.
