Jadak HS-1RS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

HS-1RS User Guide
HS-1RS User's Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-1RS and is the answer not in the manual?

Questions and answers

Related Manuals for Jadak HS-1RS

Summary of Contents for Jadak HS-1RS

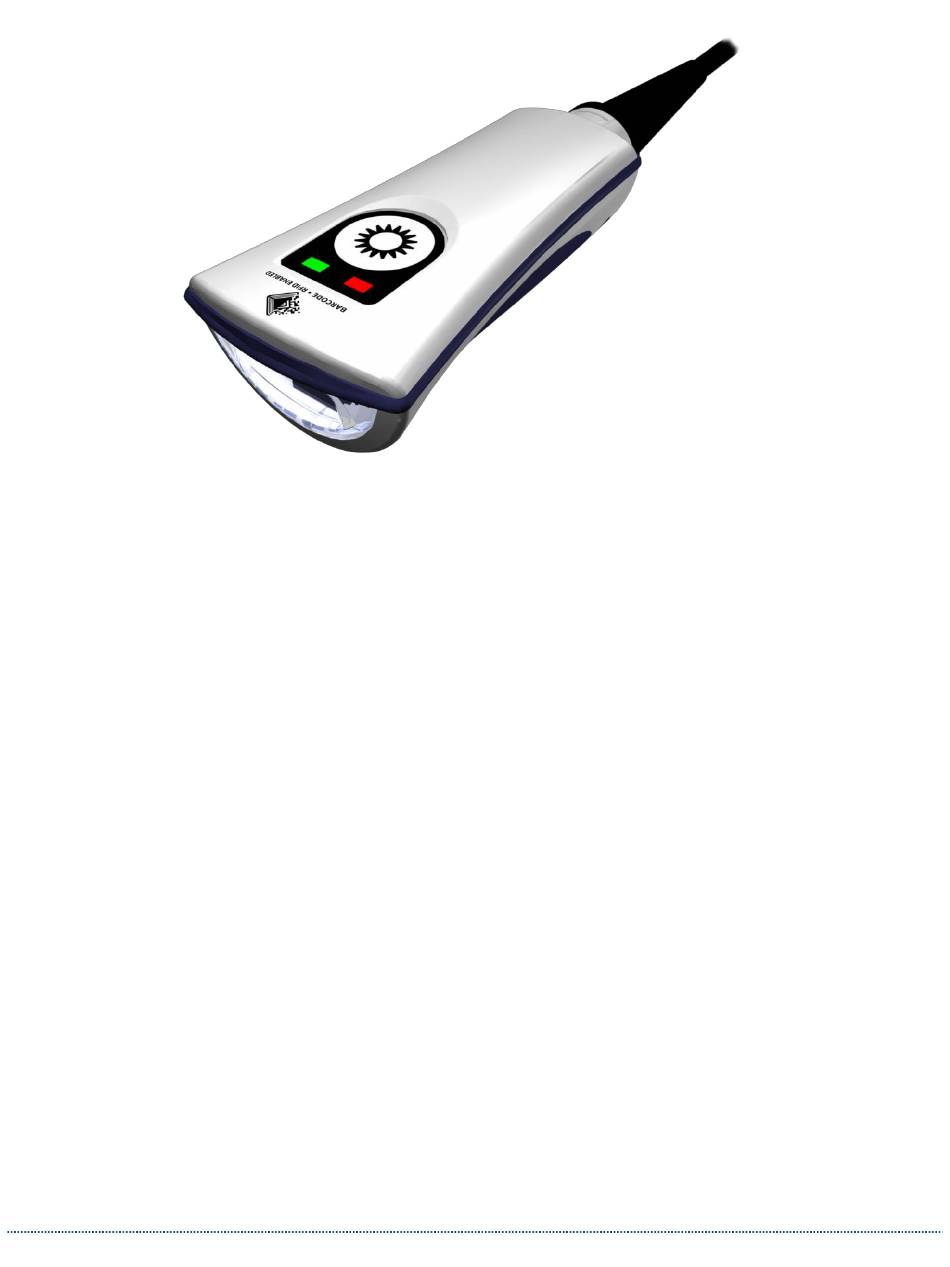

  • Page 1 HS-1RS User Guide HS-1RS User’s Manual Page i...
  • Page 2 No part of this product or document may be reproduced in any form by any means without prior written authorization of Novanta Corporation and its licensors, if any. TECHNICAL SUPPORT AND CONTACT INFORMATION Telephone: 315.701.0678 www.JADAKtech.com Email: support@jadaktech.com HS-1RS User’s Manual Page ii...
  • Page 3 Revision History DATE Version Description 02/26/2020 Original Original HS-1RS manual. HS-1RS User’s Manual Page iii...

  • Page 4: Table Of Contents

    JADAK HS-1RS Imager Identification ..................13 Reading Techniques ........................ 14 Interface Settings Connecting the HS-1RS with USB Port ................... 16 Interface Options ........................17 USB COM Port Emulation ....................17 USB HID Keyboard Emulation .................... 17 Keyboard Country Layout ....................18 HID Keyboard Rate ......................
  • Page 5 Barcode Suffix Block String ....................28 6 - RFID RFID Overview ........................29 RFID Mode On/Off ........................29 RFID Reading .......................... 29 RFID Start/Stop Read Block Number ..................29 RFID Re-read Delay ........................ 30 RFID Read Block ........................31 HS-1RS User’s Manual Page v...
  • Page 6 Maximum Exposure ......................... 38 Target White Value ........................38 Image Width and Height ..................... 39 Decode Window ........................39 Decode Window Top/Bottom ....................39 Decode Window Left/Right ....................40 8 - Symbologies All Symbologies ........................41 HS-1RS User’s Manual Page vi...
  • Page 7 Code 39 Check Digit ......................47 Code 39 Convert to Code 32 / Pharmacode ............... 47 Trioptic Code 39 ......................... 47 Code 93 ........................... 48 Code 93 Defaults ........................ 48 Code 93 On/Off ........................48 HS-1RS User’s Manual Page vii...
  • Page 8 Matrix 2 of 5 On/Off ......................53 Matrix 2 of 5 Minimum and Maximum Length ..............54 MSI ............................54 MSI Defaults ........................54 MSI On/Off .......................... 54 MSI Minimum and Maximum Length .................. 54 HS-1RS User’s Manual Page viii...
  • Page 9 2D Matrix Symbologies ......................59 Aztec Code ..........................59 Aztec Code Defaults ......................59 Aztec Code On/Off ......................59 Data Matrix ..........................59 Data Matrix Defaults ......................59 Data Matrix On/Off ......................59 2D Matrix Symbologies ......................60 HS-1RS User’s Manual Page ix...
  • Page 10 Compliance and IP Notices...................... 67 Statement of Agency Compliance .................... 67 FCC Class B Compliance Statement ..................67 HS-1RS Series N Certificate of Conformity ......... Error! Bookmark not defined. Appendices Appendix A - Command Format ....................70 Appendix A1-2 Command List and Standard Default Parameters ........... 73 Appendix A1-2 RFID Command List and Standard Default Parameters ........
  • Page 11 Appendix C - Sample Bar Codes ..................... 80 Appendix D - ASCII Conversion Chart ..................81 HS-1RS User’s Manual Page xi...

  • Page 12: Introduction

    Frequency ( 125 KHz or 134 KHz) RFID tags in close distance (10 to 40mm). With a small ergonomic shape, the HS-1RS can be used in a wide variety of applications, but is specifically designed for healthcare applications and environments. The HS-1RS has a sealed housing that protects it from day to day debris and spills and is built with medical grade plastics that are compatible with popular medical cleansers and disinfectants.

  • Page 13: Hardware Overview

    Do not stare into beam. Some versions of the HS-1RS use a 650 or 655 nm laser and a pattern forming element to generate a laser aiming pattern which represents the imager's field of view throughout its entire depth of field. The pattern's center dot indicates the center of the field of view.

  • Page 14: Reading Techniques

    If the code being scanned is highly reflective (e.g., laminated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted reflection. HS-1RS User’s Manual Page 14...
  • Page 15 HS-1RS User’s Manual Page 15...

  • Page 16: Interface Settings

    Interface Settings Connecting the HS-1RS with USB Port Note: These instructions are for use with the USB (JADAK CBL-0144) cable. 1. If you are using USB Serial Communication Port Emulation interface, you must first load the driver for that interface onto your computer.

  • Page 17: Interface Options

    Interface Options USB COM Port Emulation Scan the following code to program the HS-1RS to emulate a regular RS-232-based COM port. Note: The HS-1RS must be power cycled after programming this interface! USB COM Emulation USB HID Keyboard Emulation Scan the following code to program the HS-1RS for USB HID Keyboard mode.

  • Page 18: Keyboard Country Layout

    Keyboard Country Layout When the HS-1RS is set to USB HID Keyboard Emulation, use the following commands or programming barcodes to set the specific Keyboard layout for your language. Default = United States. * United States: United Kingdom: Belgium: Denmark:...

  • Page 19: Hid Keyboard Rate

    HID Keyboard Rate If you use the HS-1RS in USB HID Keyboard mode, it’s possible to change the speed of the data output when an RFID tag or barcode is read, akin to someone typing the data faster or slower on a keyboard.

  • Page 20: Default Options

    Default Options Custom Default Settings Scan the following code revert the unit to its custom default settings. Note: The HS-1RS must be power cycled after programming this command! To set custom defaults, please contact Jadak. Factory Default Settings Scan the following code revert the unit to its factory default settings.

  • Page 21: Input/Output Settings

    No Reads Not every trigger event will result in a successful barcode read. When there is no code read the HS-1RS may return a no read signer in the form of the characters NR. Default = Disable No Read. * Disable No Read...

  • Page 22: Trigger Modes

    In order to scan barcodes, you need to ‘trigger’ the HS-1RS. This can be done in various ways. You can activate the HS-1RS by sending the trigger command TRGON serially or by pressing the trigger button on the scanner itself.

  • Page 23: Trigger Time Out

    Note: Good Read Delay is most effective when in Presentation Mode or when Multiple Symbol Mode is turned on in combination with the other Trigger Modes. Setting examples: * No Good Read delay Good Read delay 0.2 seconds Good Read delay 0.5 seconds Good Read delay 1.0 seconds HS-1RS User’s Manual Page 23...

  • Page 24: Multiple Symbols Mode

    If you press and hold the trigger, aiming at a series of symbols, it will read unique symbols once, beeping (if turned on) for each read. The HS-1RS attempts to find and decode new symbols as long as the trigger is pulled, and the same symbol will not be read more than once. When this programming selection is turned Off, the HS-1RS will only read the symbol closest to the aiming beam.

  • Page 25: Firmware Overview (Utilities)

    3 – Firmware Overview (Utilities) Utilities Overview This chapter describes some utilities that can tell more about certain aspects of the HS-1RS hand scanner. Report the list of available Programming Commands All of the supported serial command of the imager, along with a short description and the current setting value will be serially output when this barcode is scanned.

  • Page 26: Data Editing

    Use the following codes to transmit an AIM ID character or a Symbol ID Character. See Appendix B for a chart of all supported barcodes and their corresponding AIM ID characters. Default = Don’t Transmit AIM ID. * Don’t Transmit AIM ID Transmit AIM ID Transmit Symbol ID HS-1RS User’s Manual Page 26...

  • Page 27: Barcode Prefix

    Prefix characters are user-definable data characters that can be sent before scanned data. It’s possible for the HS-1RS to enable and set a specific prefix for all scanned Barcode data only. This can help to discern barcode data from RFID data when both are output alternately.

  • Page 28: Barcode Suffix

    Suffix characters are user-definable data characters that can be sent after scanned data. It’s possible for the HS-1RS to enable and set a specific suffix for all scanned Barcode data only. Note: This Barcode Suffix will be separate from any set RFID suffixes or general suffixes.

  • Page 29: Rfid

    6 - RFID RFID Overview Besides being able to scan 1D and 2D barcodes, the HS-1RS can also read (and write to) RFID tags, using LF RFID technology at 125 KHz/134 KHz and HF RFID technology at 13.56 MHz. RFID Mode On/Off It’s possible to enable or disable the RFID part of the HS-1RS.

  • Page 30: Rfid Re-Read Delay

    RFID Time Out 10.0 seconds RFID Re-read Delay This sets the time period before the HS-1RS can read the same RFID tag a second time. Setting a proper re-read delay time protects against accidental re-reads of the same tag. Several commonly used re-read delay menu command barcodes are included below. Use the command RFIDDLY x (where ‘x’...

  • Page 31: Rfid Read Block

    RFID Read Block The HS-1RS can read the hex value-data stored in various RFID blocks from a tag at once or you can tell it to output specific ones. RFIDRBK uses the following arguments: -TagType(1=IS015693,2=MfUL,3=MfClassic,4=Topaz) -Block Number (0-xx) -HexKey(optional for MifareClassic Only)

  • Page 32: Rfid Data Text Mode

    RFID Data Text Mode The HS-1RS can output the (partial) data of an RFID tag in either binary or text. Use the codes below to enable or disable the Data Text Mode. Default = Enabled. *RFID Text Enabled RFID Text Disabled RFID UID Only The HS-1RS has the option to only output the UID of a scanned tag.

  • Page 33: Rfid Prefix

    ASCII and it’s not possible to interject a Carriage Return in the middle of the block string. For instance, if you want the prefix to be [RFID], send: PRERBLK [RFID]. Please contact JADAK if you need further help. Default RFID Prefix Block string is: (R) Example codes:...

  • Page 34: Rfid Suffix

    Tab symbol (as hex 09) and then ABC (ASCII characters again), send the following: SUFRBLK 123\x09ABC Please contact JADAK if you need further help. The default RFID Suffix Block string is a Carriage Return (hex ‘0D’). * RFID Suffix Block \x0D HS-1RS User’s Manual...

  • Page 35: Rfid Presentation Time Out

    Presentation mode. By pressing the trigger button, you can toggle between Barcode and RFID Presentation mode. By default, this is an infinite duration, but you can also have the HS-1RS switch back to barcode presentation mode from RFID mode after a specific time.

  • Page 36: Beeper Sounds

    This can be useful for certain notifications. Five different beeper tones are available in the HS- 1RS. Use the command LEDINDC x (where ‘x’ is a value between 0 and 4), to have the HS-1RS light up one of its LED Indicators in various ways.

  • Page 37: Imaging

    7 - Imaging Imaging Overview The HS-1RS cannot be used to take images with. While this could be very helpful in applications such as patient identity verification, signature capturing, or any other situation where you need to take an image, the internal structure of the HS-1RS doesn’t allow for such transmissions.

  • Page 38: Auto Exposure

    EXP_MAX x (where ‘x’ is a value between 1 and 7874), or by building a menu command barcode. Please contact JADAK if assistance is needed. Default value = 100. Setting examples: Target White Value Set the Target White Value within a range of 48 to 212.

  • Page 39: Image Width And Height

    0 and 639, or by building a menu command barcode. Default Top boundary = 256. Default Bottom boundary = 384. Please contact JADAK if assistance is needed HS-1RS User’s Manual Page 39...

  • Page 40: Decode Window Left/Right

    Default Left boundary = 338. Default Right boundary = 506. Please contact JADAK if assistance is needed This is a screenshot of an example where a Decode Window with T=260, B=390, L=40, R=170 was used to speed up decoding a Data Matrix code that was offset to the left in the Field of View.

  • Page 41: Symbologies

    Symbologies On code (Enable All). If on the other hand, you want to decode only a particular symbology, scan All Symbologies Off (Disable All) followed by the On/Enable symbol for that particular symbology. Disable All Enable All HS-1RS User’s Manual Page 41...

  • Page 42: Linear Symbologies

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 2 and 55, or by building a menu command barcode. Please contact JADAK if assistance is needed. Codabar Minimum Length Codabar Maximum Length HS-1RS User’s Manual...

  • Page 43: Code 11

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 1 and 55, or by building a menu command barcode. Please contact JADAK if assistance is needed. Code 11 Minimum Length Code 11 Maximum Length HS-1RS User’s Manual...

  • Page 44: Code 11 Check Digit

    Code 11 Check Digit The HS-1RS may look for a check digit to decide if the code is valid. Code 11 usually has 1 check digit and some codes have 2 check digits. Either option can be chosen to be validated.

  • Page 45: Code 128

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 0 and 55, or by building a menu command barcode. Please contact JADAK if assistance is needed. Code 128 Minimum Length...

  • Page 46: Code 39

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 0 and 48, or by building a menu command bar code. Please contact JADAK if assistance is needed. Code 39 Minimum Length...

  • Page 47: Code 39 Check Digit

    Trioptic Code 39 symbols always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate bar code below. Default = Disabled. Note: You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously. Enable * Disable HS-1RS User’s Manual Page 47...

  • Page 48: Code 93

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 0 and 55, or by building a menu command barcode. Please contact JADAK if assistance is needed. Code 93 Minimum Length Code 93 Maximum Length HS-1RS User’s Manual...

  • Page 49: Composite Code

    1 and 2435, or by building a menu command barcode. Default minimum length = 1. Default maximum length = 2435. Please contact JADAK if assistance is needed. Composite Code Minimum Length Composite Code Maximum Length HS-1RS User’s Manual...

  • Page 50: Ean-8/Jan 8

    EAN-13/JAN 13 EAN-13/JAN 13 Defaults Set the EAN-13 settings to their default configuration with this code. EAN-13/JAN 13 On/Off Scan one of the codes below to enable or disable EAN-13. Default = Enabled. * Enable Disable HS-1RS User’s Manual Page 50...

  • Page 51: Gs1 Databar (Formerly Rss-14)

    Scan one of the codes below to enable or disable GS1 DataBar Limited. Default = Enabled. * Enable Disable GS1 DataBar Expanded (Formerly RSS-Expanded) Scan one of the codes below to enable or disable GS1 DataBar Expanded. Default = Enabled. * Enable Disable HS-1RS User’s Manual Page 51...

  • Page 52: Interleaved 2 Of 5

    The minimum and maximum length for this barcode can be set either by sending the serial command shown under the barcodes below with a value between 2 and 55, or by building a menu command barcode. Please contact JADAK if assistance is needed. Interleaved 2 of 5 Minimum Length Interleaved 2 of 5 Maximum Length HS-1RS User’s Manual...

  • Page 53: Interleaved 2 Of 5 Check Digit

    Set all Matrix 2 of 5 settings to their default configuration with this code. Matrix 2 of 5 On/Off Scan one of the codes below to enable or disable Matrix 2 of 5. Default = Disabled. Enable * Disable HS-1RS User’s Manual Page 53...

  • Page 54: Matrix 2 Of 5 Minimum And Maximum Length

    1 and 55, or by building a menu command barcode. Default minimum length = 4. Default maximum length = 55. Please contact JADAK if assistance is needed. Matrix 2 of 5 Minimum Length Matrix 2 of 5 Maximum Length MSI Defaults Set all MSI settings to their default configuration with this code.

  • Page 55: Msi Check Digits

    4 and 48, or by building a menu command barcode. Default minimum length = 4. Default maximum length = 48. Please contact JADAK if assistance is needed. MSI Minimum Length MSI Maximum Length MSI Check Digits With MSI symbols, one check digit is mandatory and always verified by the reader.

  • Page 56: Upc-A

    Default=Transmit * Transmit UPC-A Check Do Not Transmit UPC-A Check UPC-E(0) UPC-E(0) Defaults Set the UPC-E(0) settings to their default configuration with this code. HS-1RS User’s Manual Page 56...

  • Page 57: Upc-E On/Off

    UPC-E(0) Expanded Mode. Default = Disabled. Enable * Disable UPC-E1 Scan one of the codes below to enable or disable UPC-E(1). Default = Disabled. Enable * Disable HS-1RS User’s Manual Page 57...

  • Page 58: 1D Stacked Symbologies

    Disable MicroPDF417 MicroPDF417 Defaults To set the default values for Micro PDF417, scan this code: MicroPDF417 On/Off Scan one of the codes below to enable or disable Micro PDF417. Default = Disabled. Enable * Disable HS-1RS User’s Manual Page 58...

  • Page 59: 2D Matrix Symbologies

    Data Matrix Defaults To set the default values for Data Matrix, scan this code: Data Matrix On/Off Scan one of the codes below to enable or disable Data Matrix. Default = Enabled. * Enable Disable HS-1RS User’s Manual Page 59...

  • Page 60: 2D Matrix Symbologies

    QR Code Defaults To set the default values for QR Code, scan this code: QR Code On/Off Scan one of the codes below to enable or disable QR Code. Default = Enabled. * Enable Disable HS-1RS User’s Manual Page 60...

  • Page 61: Product Specifications

    9 - Product Specifications HS-1RS User’s Manual Page 61...

  • Page 62: Standard Cable Pin Out

    Standard Cable Pin out 2 Data + 10 Pin Modular Plug 3 Tied to 5 volt power connects to the imager handle 4 Supply ground 7 5 volt power connection 10 Data - HS-1RS User’s Manual Page 62...

  • Page 63: Maintenance

    Cleaning the Scanner Housing The HS-1RS is IP54 rated when the cable is attached. This means that liquids and dusts will not penetrate into the housing, however, the scanner should not be submerged in water or other liquids.

  • Page 64: Interface Cable

    Should the cable be damaged, the cable can be replaced in the field. NOTE: The use of non-JADAK cables voids the warranty, only a JADAK cable can be used to keep the IP54 rating.

  • Page 65: 11 - Customer Support

    JADAK provides assistance and service for all its products. To obtain warranty or non-warranty service, return the unit to JADAK (postage paid) with a copy of the dated purchase record attached. Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product.

  • Page 66: Limited Warranty

    This includes but is not limited to: cables, power supplies, cradles, and docking stations. JADAK extends these warranties only to the first end users of the products. These warranties are non-transferable. The duration of the limited warranty for the HS-1RS is for one (1) year. HS-1RS User’s Manual...

  • Page 67: Compliance And Ip Notices

    Compliance and IP Notices Statement of Agency Compliance Model Number: HS-1RS FCC ID: QV5HS1RS IC: 5407A-HS1RS EU: CE The product is designed to support the following regulatory and safety standards as a standalone unit. The end user will need to verify general EMC compliance as implemented in their host system.
  • Page 68 L'appareil ne doit pas être co-localisé ou utilisé en conjonction avec une autre antenne ou un autre émetteur. Responsible Party: Novanta Address: 125 Middlesex Turnpike, Bedford, MA 01730, USA Internet Contact Information: www.novanta.com HS-1RS User’s Manual Page 68...
  • Page 69 HS-1RS User’s Manual Page 69...

  • Page 70: Appendices

    Appendices Appendix A - Command Format The HS-1RS accepts a wide range of configuration commands. Commands can be sent to the imager wither by scanning menu bar symbol or via Serial commands sent from the host machine. The HS-1RS command format is.
  • Page 71 Query Goal: What is the range of possible values for the Code 128 Max Length? Send: #128MAXL *[CR] Response: #0-55[CR] Query Goal: What is the default value for the Code 128 Max Length? Send: #128MAXL ^[CR] Response: #55[CR] HS-1RS User’s Manual Page 71...
  • Page 72 #C11MAXL Code 11 Max Symbol Length 1-55 #C11MINL Code 11 Min Symbol Length 1-55 #C93DEFA Default Code 93 Parameters #C93ENAB Enable Decoding Code 93 #C93MAXL Max Code 93 Symbol Length 0-55 #C93MINL Min Code 93 Symbol Length 0-55 HS-1RS User’s Manual Page 72...

  • Page 73: Appendix A1-2 Command List And Standard Default Parameters

    Restore All Settings To Factory Defaults DEFAULT Restore All Settings To Custom Defaults DEVSERN Show Device Serial Number DLYGDRD 0 to 30000 Good Read Delay (in milliseconds) DLYRERD 0 to 30000 Re-read Delay (in milliseconds) DMXDEFA Default Data Matrix Parameters HS-1RS User’s Manual Page 73...
  • Page 74 Max MSI Symbol Length MSIMINL 4 to 48 Min MSI Symbol Length MULTSYM 0 to 1 Multiple Symbol mode NO_READ 0 to 1 Enable No Read message PDFDEFA Default PDF417 parameters PDFENAB 0 to 1 Enable Decoding PDF417 HS-1RS User’s Manual Page 74...
  • Page 75 Set Left boundary of decode window WINDECR 0 to 843 Set Right boundary of decode window WINDECT 0 to 639 Set Top boundary of decode window XMITCID 0 to 2 Transmit Code ID (0-Off, 1-AIM ID, 2-Symbol ID ) HS-1RS User’s Manual Page 75...

  • Page 76: Appendix A1-2 Rfid Command List And Standard Default Parameters

    [CR] RFID Suffix SUFRENA 0 to 1 Enable RFID Suffix UIDONLY 0 to 1 Output the UID of an RFID tag only VIBENAB 0 to 1 Enable Vibration VIBRATE 0 to 2 Vibration Indicator 0-2 HS-1RS User’s Manual Page 76...

  • Page 77: Appendix B - Aim Ids

    3 Combined data packet comprising 13 digits from EAN-13, UPC-A or UPC-E symbol and 2 or 5 digits from supplemental symbol. 4 EAN-8 data packet. Example: A UPC-A bar code 012345678905 is transmitted as ]E00012345678905 Barcode AIM ID AIM ID Modifiers HS-1RS User’s Manual Page 77...
  • Page 78 908-909. 5 The bar code contains a GS1-128 symbol, and the first codeword is in the range 910-911. Example: A PDF417 bar code ABCD, with no transmission protocol enabled, is transmitted as ]L2ABCD. HS-1RS User’s Manual Page 78...
  • Page 79 ]X0123456789X Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/ Intelligent Mail, UPU FICS Postal HS-1RS User’s Manual Page 79...
  • Page 80 Appendix C - Sample Bar Codes UPC-A Codabar Code 128 Code 39 Code 93 Interleaved 2 of 5 PDF-417 Composite Code MicroPDF Aztec Data Matrix QR Code MaxiCode HS-1RS User’s Manual Page 80...
  • Page 81 For these Imager engines, use the 2-digit Hex values to create an ASCII character. E.g., to create an F, use ‘46’ and to create an f, use ‘66’. The first 32 characters are unprintable. Char Char Char Char Space “ & ‘ < > HS-1RS User’s Manual Page 81...
  • Page 82 · × ÷ ˜ ¸ Ø ø ™ ¹ Ù ù Š º Ú ú › » Û û œ ¼ Ü ü □ ½ Ý ý Ž ¾ Þ þ Ÿ ¿ ß ÿ HS-1RS User’s Manual Page 82...
  • Page 83 JADAK HS-1RS UM 02/26/2020...
