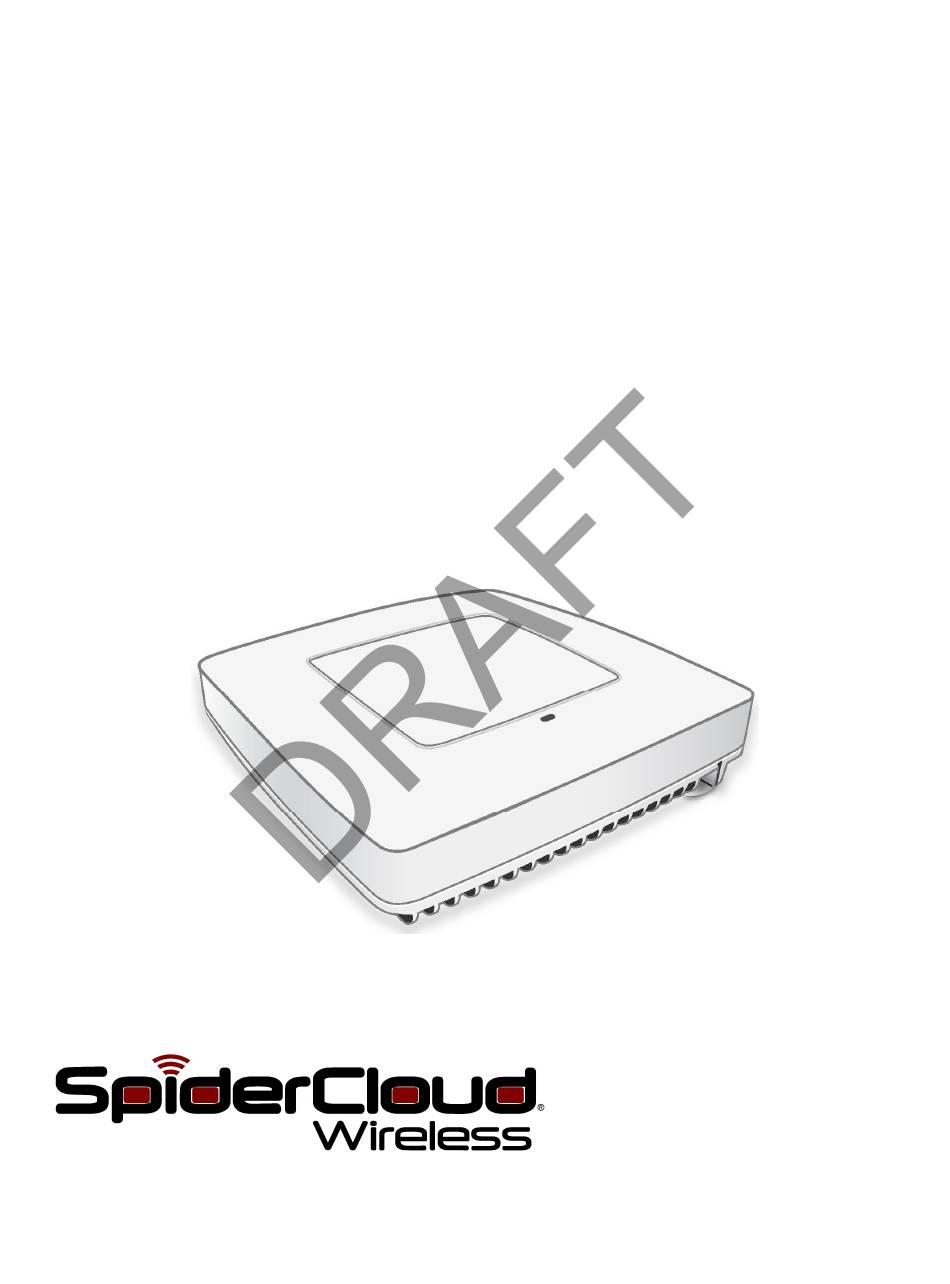

- Page 1 ® SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Part number: DOC-SCRN-330-HW-01, Rev. 1 Published: April 2018...
- Page 2 SpiderCloud Wireless. Customer agrees to implement reasonable security measures to protect such trade secrets and copyrighted material at least to the extent that Customer protects its own information of a similar nature.
-
Page 3: Table Of Contents
SCRN-330 Bracket Specifications........ - Page 4 Contents SpiderCloud Wireless, Inc. Proprietary and Confidential...
-
Page 5: About This Manual
Product Overview The SCRN-330 is a Time Division Duplexing (TDD) radio node that connects to a services node. It uses GPS to achieve phase synchronization with macro networks. Each radio node support 128 connected users and up to 8 bearers per UE. -
Page 6: Radio Node Models
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Figure 1 Radio Node Relationship to Enterprise and Mobile Operator Core Networks Radio Node Models Table 1 displays the orderable configuration of the SCRN-330 radio node: Table 1: SCRN-330 Radio Node Configurations Radio Node Model Description... -
Page 7: Radio Node System Isometric Top View And Bottom View
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Radio Node System Isometric Top View and Bottom View The following drawings display an isometric top and bottom views of the radio node: Figure 2 Radio Node Top View Figure 3 Radio Node Bottom View SpiderCloud Wireless, Inc. -
Page 8: Antennas
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Antennas The radio node includes four internal Tx/Rx antennas with a peak gain of 5dBi and operates in 2x2 mode with MIMO and one internal network listen antenna: Figure 4 shows the location of the licenced and unlicensed LTE antennas:... -
Page 9: The Top-Panel Led
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide The Top-Panel LED The radio node has one top-panel tricolor (RGB) LED to indicate power and status. This is the only LED visible under normal operating conditions. When the radio node initially boots the LED cycles through a number of colors and flashing behaviors until it is fully operational. - Page 10 SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Figure 7 shows the valid radio node cabling/powering options: Figure 7 Valid Radio Node Cabling/Powering Options The illustration below shows a generic single-port PoE+ injector. Use this injector only when a PoE+ Ethernet switch is not available.
-
Page 11: System Specifications
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide System Specifications The SCRN-330 radio node has the following chassis measurements, power requirements, and environmental requirements, and complies with the following standards. Refer to the feature guide for your services node software release for release-specific features and specifications. -
Page 12: Scrn-330 Bracket Specifications
1,363,791 hours at +40°C (104°F) SCRN-330 Bracket Specifications The SCRN-330 radio node connects to one of two brackets for ceiling or wall mounting: • a quarter-inch (0.64 centimeter) deep for cabling through a surface such as a wall or ceiling •... -
Page 13: Compliance
Refer to the E-RAN Deployment Planning Guide for information about mounting positioning and the affects on cellular coverage. Always consult local codes about mounting and wiring SpiderCloud Wireless equipment. -
Page 14: Installation And Mount Bracket Assembly
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Figure 9 Radio Node Locations When possible, locate radio node units at least 6 meters (20 feet) from an external wall. This distance maximizes indoor coverage and minimizes RF leakage outside the building. Refer to the E-RAN Deployment Planning Guide for Dual-Mode Systems and E-RAN Deployment Planning Guide for LTE Systems for more information about radio node placement. -
Page 15: Typical Radio Node Mounting Options
Installing the Radio Node The radio node receives its power source over powered Ethernet. If your wiring closet does not have existing PoE+ equipment, SpiderCloud Wireless recommends a PoE+ power injector for the radio node. See section Input Power on page 9. -
Page 16: Installing The Radio Node (Method 1)
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Attach the mount bracket to the radio node as shown in Figure Figure 10 Radio Node Slides into Mount Bracket Installing the Radio Node (Method 1) Use this method with the quarter-inch bracket when routing the Ethernet cable through an opening where the bracket will be mounted. -
Page 17: Installing The Radio Node (Method 2)
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Step 3 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket. - Page 18 SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide If needed, use a flat washer between the bracket and screw head to ensure a secure fastening. Figure 13 shows the 1.25-inch mount bracket. Figure 13 1.25-Inch Mount Bracket Step 2 Insert the RJ-45 connector through the rectangular bracket opening into the Ethernet port...
-
Page 19: Completing The Installation
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Completing the Installation Step 1 Attach a padlock or cable tie wrap into the provided slot to secure the unit to the mount bracket. Figure 15 Padlock and Lock Holes The lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is typically wall or ceiling mounted. -
Page 20: Boot Sequence And Services Node Communication
4. The services node responds with a Join Response message indicating whether the radio node is allowed to join the network or not. 5. The arrival sequence begins. The services node sends the SpiderCloud software image to the radio node. -
Page 21: Radio Node Led Boot Sequence
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Radio Node LED Boot Sequence The radio node state machine is sequential and progresses in the following order: State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5 -> State 6 A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly. -
Page 22: Radio Node Led Management
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Table 6: Radio Node LED Boot Sequence (continued) State LED Color Description Possible Failures and Actions 5. Operating Flashing The radio node loads the operating Failure to start the operating System Booting... -
Page 23: The Spidercloud Documentation Set
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide * Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node and follow IMSI features. To disable the LED display Step 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode... - Page 24 SpiderCloud system with the SpiderNet network management system. • The SpiderCloud Time Zone Reference Guide provides the information required to configure the time zone for SpiderCloud services nodes. • The SpiderCloud Call Performance Event Reporting Guide provides detailed information about call performance events files including the file format, reported events, and event parameters.
-
Page 25: Appendix A Lte Antenna Patterns
SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide Appendix A: LTE Antenna Patterns SpiderCloud Wireless, Inc. Proprietary and Confidential... - Page 26 SpiderCloud Radio Node - SCRN-330 Hardware Installation Guide SpiderCloud Wireless, Inc. Proprietary and Confidential...
