Step 3 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The
screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit
onto the studs, sheetrock, anchor, or other material you are bolting onto and that you
match the screw head with the appropriate cutout hole size on the bracket.
If needed, use a flat washer between the bracket and screw head to ensure a secure
fastening.
Step 4 Insert the RJ-45 connector into the Ethernet port as shown in
Step 5 Insert the radio node into the mount bracket.
Step 6 Push as much cable back through the wall or ceiling as possible. The mount bracket
assembly has room for some cable slack.
Installing the Radio Node (Method 2)
Use this method with the 1.25 inch bracket when routing an exposed Ethernet cable directly to the radio
node.
To route the cable openly and mount the radio node
Step 1 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The
screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit
onto the studs, sheetrock, anchor, or other material you are bolting onto and that you
match the screw head with the appropriate cutout hole size on the bracket.
SpiderCloud Wireless, Inc.
SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide

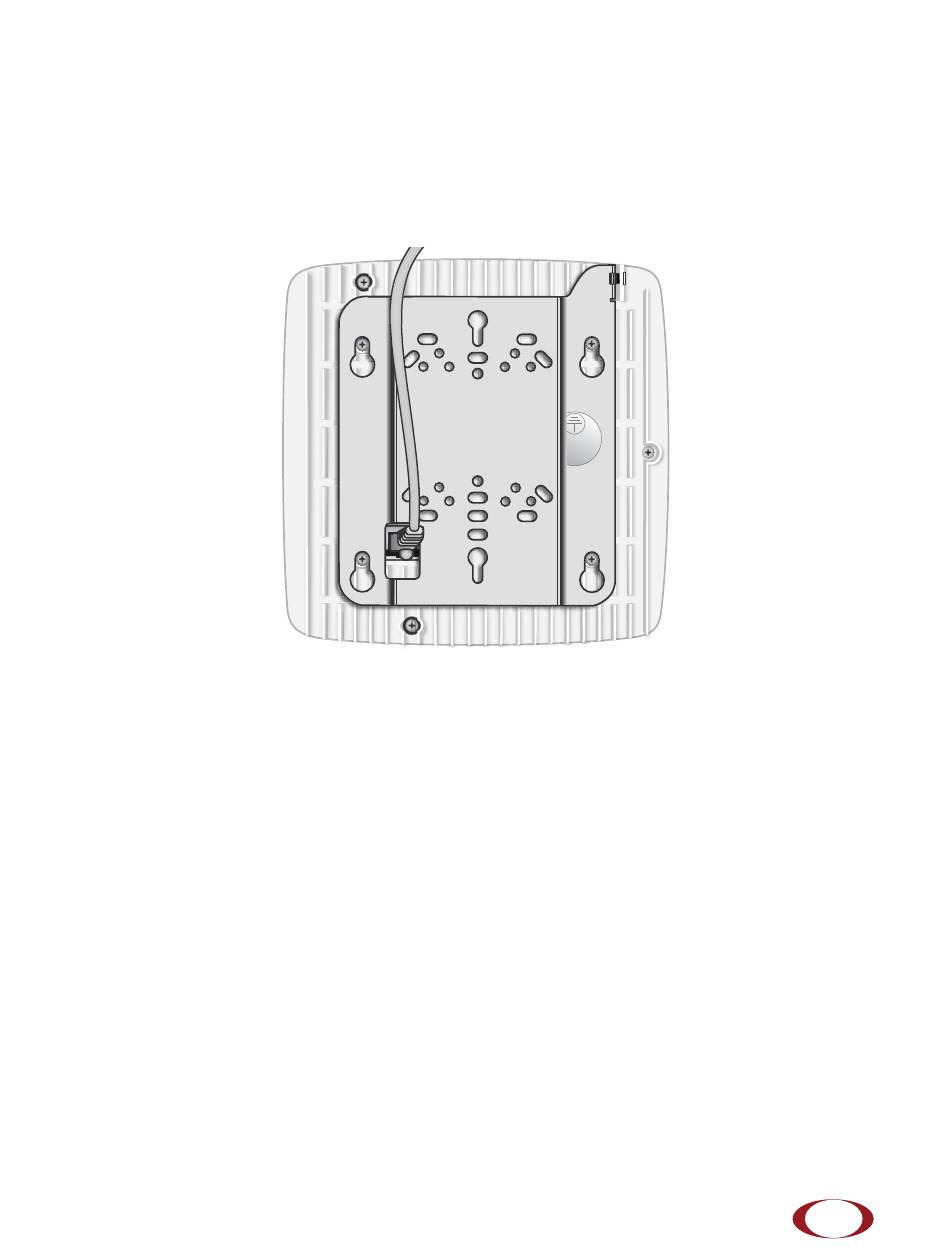

Figure 13 Route and Terminate the Cable
Figure
13:
Proprietary and Confidential
17
Advertisement
Related Manuals for SpiderCloud SCRN-220
Summary of Contents for SpiderCloud SCRN-220
- Page 1 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide Step 3 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket.
- Page 2 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide If needed, use a flat washer between the bracket and screw head to ensure a secure fastening. Figure 14 shows the 1.25-inch mount bracket. Figure 14 1.25-Inch Mount Bracket Step 2 Insert the RJ-45 connector through the rectangular bracket opening into the Ethernet port...
- Page 3 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide Completing the Installation Step 1 Attach a padlock or cable tie wrap into the provided slot to secure the unit to the mount bracket. Figure 16 Padlock and Lock Holes The lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is typically wall or ceiling mounted.
- Page 4 4. The services node responds with a Join Response message indicating whether the radio node is allowed to join the network or not. 5. The arrival sequence begins. The services node sends the SpiderCloud software image to the radio node.
- Page 5 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide Radio Node LED Boot Sequence The radio node state machine is sequential and progresses in the following order: State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5 A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly.
- Page 6 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide Table 6: Radio Node LED Boot Sequence (continued) State LED Color Description Possible Failures and Actions 4. Operating Flashing The radio node loads the operating Failure to start the operating System Booting...
- Page 7 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide * Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node and follow IMSI features. To disable the LED display Step 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode...
- Page 8 SpiderCloud system with the SpiderNet network management system. • The SpiderCloud Time Zone Reference Guide provides the information required to configure the time zone for SpiderCloud services nodes. • The SpiderCloud Call Performance Event Reporting Guide provides detailed information about call performance events files including the file format, reported events, and event parameters.
-
Page 9: Appendix A: Lte Antenna Patterns
SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide Appendix A: LTE Antenna Patterns LTE Band 2 Frequency: 1960 MHz. Peak Gain: 3.21 Dbi. 0º 90º Front Frequency: 1960 MHz. Peak Gain: 1.50 Dbi. 0º 90º SpiderCloud Wireless, Inc. Proprietary and Confidential... - Page 10 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide LTE Band 4 Frequency: 2145 MHz. Peak Gain: 4.10 Dbi. 0º 90º Front Frequency: 2145 MHz. Peak Gain: 2.63 Dbi. 0º 90º SpiderCloud Wireless, Inc. Proprietary and Confidential...
- Page 11 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide LTE Band 13 0º 90º Front 0º 90º SpiderCloud Wireless, Inc. Proprietary and Confidential...
- Page 12 SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide SpiderCloud Wireless, Inc. Proprietary and Confidential...
