Programming
The programming function is PWD protected. In order to restrict access, set a new
PWD when the system is programmed for the first time. Do not give the PWD to
other people.
Factory-set PWD: 1 2 3 4
When the XKP W is waiting for an operation, enter: # PWD # then choose the
option 1-12 from the menu and carry out the procedure following the instructions.
E.g: for a new user code, enter: 1 # (look for the instructions 1)
Menu
ABN 27 106 103 315
www.aggdoors.com.au
enquiries@aggdoors.com.au
(03) 8789 1342

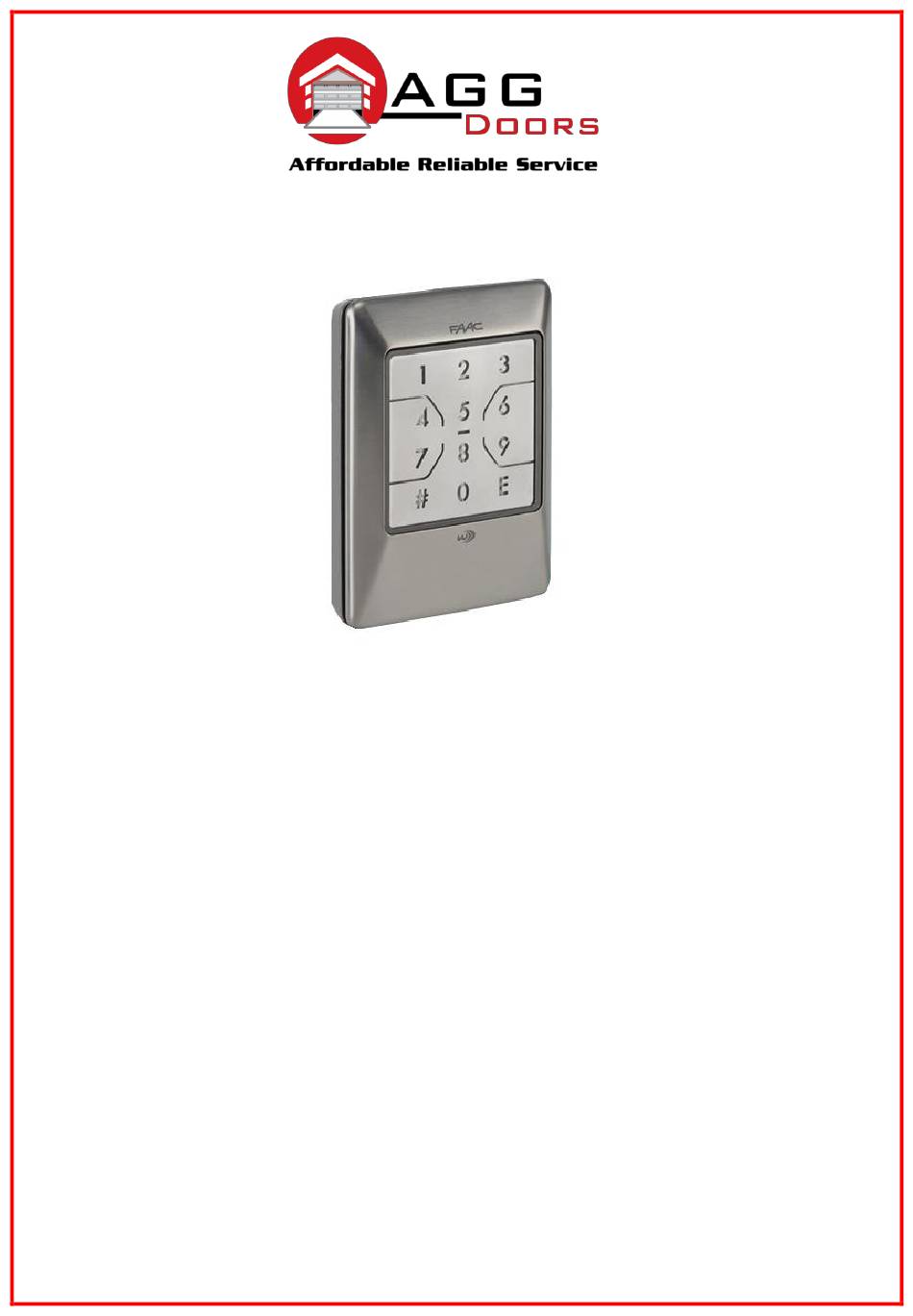

Genuine XKP W Wireless Keypad
7 not used
11 Randomize the radio code
Advertisement
Table of Contents
Related Manuals for FAAC Genuine XKP W
Summary of Contents for FAAC Genuine XKP W
- Page 1 (03) 8789 1342 Genuine XKP W Wireless Keypad Programming The programming function is PWD protected. In order to restrict access, set a new PWD when the system is programmed for the first time. Do not give the PWD to other people.
- Page 2 If the XKP W indicates an ERROR (beeping 5x with red LED fast flashing), it should be reprogrammed correctly. After the OK (beeping once with green LED on for 0.5 s) message appears, the XKP W waits for an operation for 60 s. When the XKP W is waiting for an operation, it is possible to carry out another operation from the menu.
- Page 3 4. CHANGE THE PWD Enter the PWD (maximum of 6 digits). Only numeric codes can be entered. When the XKP W is waiting for an operation, enter: 4 # new PWD # new PWD # 5. RESTORE FACTORY SETTINGS This restores the XKP W to its factory settings: user code memory empty, direct radio channel (button E) disabled, Easy Operation, PWD: 1 2 3 4, randomized radio codes.
- Page 4 TEACH A RADIO RECEIVER When the XKP W is waiting for an operation, enter: 8 # Ch Place the receiver in learning mode on the required radio channel within 25 s (follow the receiver’s instruction and maintain the recommended distance between the devices), then press: keep it pressed until confirmation is given that the code has been learnt, then release it The code of the radio channel entered is transmitted (Green LED on).
- Page 5 TEACH A RADIO CONTROL When the XKP W is waiting for an operation, enter: 8 # Ch Bring the two devices into contact with one another within 25 s, as shown in the figure, then press: keep it pressed until confirmation is given that the code has been learnt, then release it The code of the radio channel entered is transmitted (Green LED on).
- Page 6 10. SET THE XKP W SLAVE This operation is irreversible and converts the XKP W, which is factory set to Master, into a Slave device. A Slave XKP W can learn, but cannot teach a radio code. When the XKP W is waiting for an operation, enter: 10 # 105 # 11.
