Carisma Range Rover SCA-1E 2.1 Instruction Manual

1/10th 4wd scale crawler kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Range Rover SCA-1E 2.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Carisma Range Rover SCA-1E 2.1

Summary of Contents for Carisma Range Rover SCA-1E 2.1

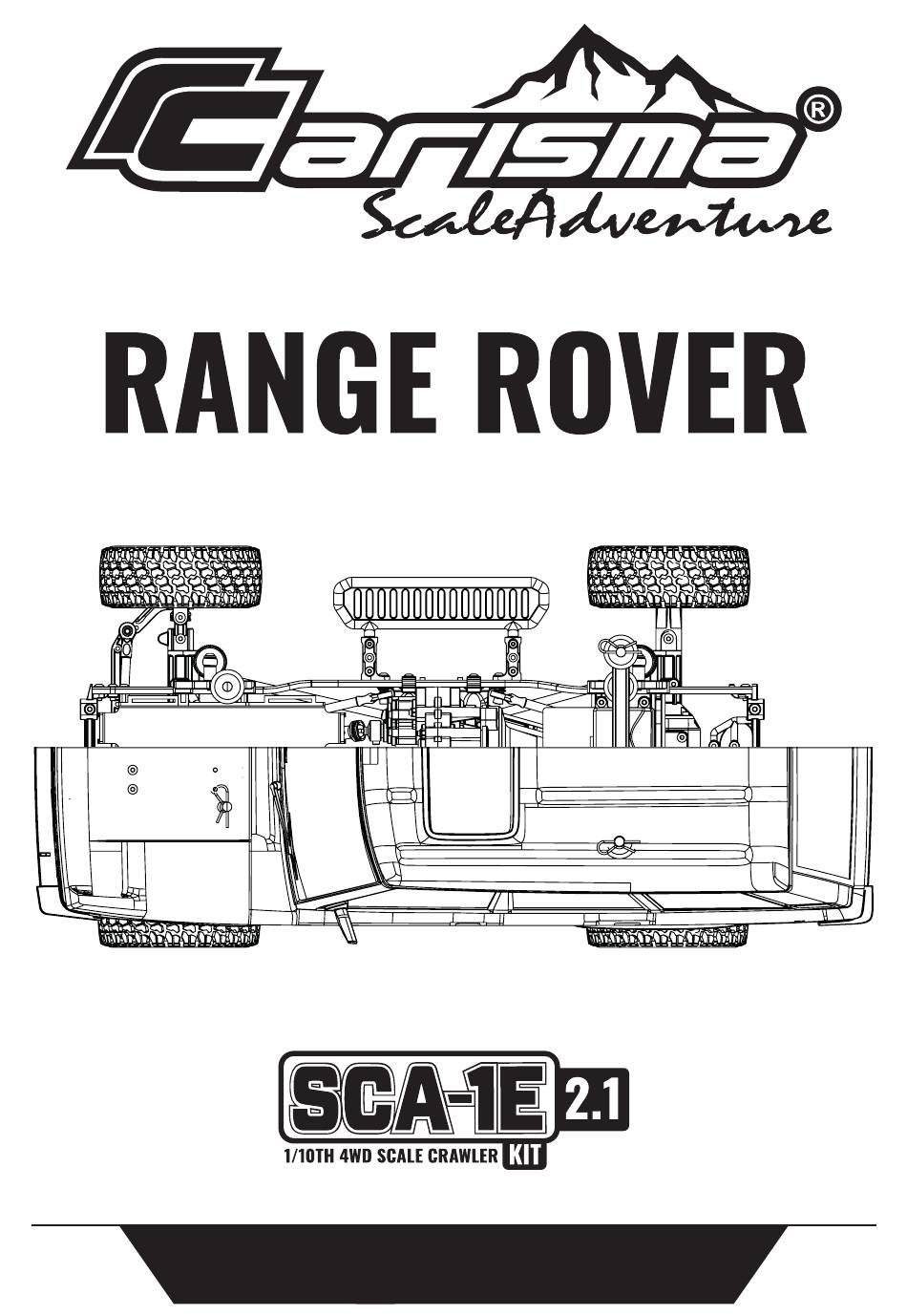

  • Page 1 INSTRUCTION MANUAL...
  • Page 2 The SCA-1E 2.1 is easy to build using standard RC tools, easy to maintain between runs or competitions and easy to modify or hop up using many existing third party scale parts and accessories. Carisma Scale Adventure also produces a range of official hop ups and performance parts in both CNC alloy and high performance plastics.

  • Page 3: Safety Precautions

    Carisma Scale Adventure guarantees this model kit to be free from defects in both materials and workmanship at po- int of purchase. The total monetary value under warranty will NOT, at any case what so ever be exceed the cost of the original kit purchased.
  • Page 4 作为本产品的用户 ， 您应独自负责以不会危害自己和他人或不损害产品或他人财产的方式来操作本产品。 此模型由无线电信号控制，该无线电信号可能会受到控件外部许多来源的干扰。这种干扰会导致瞬间失控，因此必须始终在模型周围的所有方向上保持安全距离，因为这 将有助于避免碰撞或伤害。为了正确操作并避免损坏或伤害。 •始终在远离汽车，交通或人员的空旷区域操作模型。 •避免在可能会造成人身伤害或损坏的街道上操作模型。 •切勿出于任何原因将模型运用于街道或人口稠密的地区 。 •切勿在变送器电池电量低的情况下操作模型。 •请认真遵守本产品以及您使用的任何可选支持设备（充电器， 可充电电池组等）的说明和警告。 •将所有化学药品，小零件和任何电气设备置于儿童接触不到的地方。 •水分会损坏电子设备。避免将水暴露于非专门为此目的设计和保护的所有设备上。 买方有责任在操作此模型时确保安全预防措施。您负责此模型的组装和操作。请仔细阅读该手册，并始终随时随地以备参考。 ONL Y使用Carisma / Carisma Racing零 件来获得最佳性能。第三方零件的安装将立即使保修失效。不当的操作可能会导致人身或财产损失。 Carisma / Carisma Racing或我们的分销商对由于运输，不正确的构造或不正确的方式造成的任何损坏不承担任何责任 SCA-1E 2.1 是一款高质量的1/10比例四轮驱动越野，履带式和比例履带车，推荐给14岁及以上的人使用。它不是玩具，而是一种精密的自建套件。在组装和操作过程中， 始终需要成人监督。 如有疑问， 请向您的RC狂热爱好者寻求建议或与loca I业余爱好商店或国家/地区分销商联系以寻求协助。我们会不断改进和开发我们的所有产品，因此， 套件的确切规格 可能会因批次而异，恕不另行通知。 该产品包含加利福尼亚州已知的会导致癌症和出生缺陷或其他生殖伤害的化学物质。 Carisma Scale Adventure保证该模型套件在购买时不存在材料和工艺上的缺陷。在任何情况下 ，保修期内的总货币价值都不会超过所购买原始套件的成本 。 本保修不涵 盖任何因使用，改装或磨损而损坏的组件。该套件中缺少的部分零件必须在购买后30天内报告。...
  • Page 5 このキッ トは 、CMS（Chassis Mounted Servo）を備えており 、前方に取り付けられたバッテリートレイにより 、重量バイアスを完全に最適化し 、 リグのクロール機能を向上 させます 。また、新しい真のビードロックホイールシステム 、 ソフ トコンパウンドの全地形対応タイヤ、改良されたアッパーショックマウントとシャーシブレースも設計しました。 SCA-1E 2.1 は進化しましたが、価格は競争力があり 、 すべての人にとっ て手頃な価格です 。 SCA-1E 2.1は 、標準のRCツールを使用して簡単に構築でき、 ランニングや競技の合間にメンテナンスが簡単で、既存の多くのサードパーティスケールのパーツやアクセサリー を使用して簡単に変更またはホップアップできます 。 Carisma Scale Adventureは 、CNC合金と高性能プラスチックの両方で、 さまざまな公式ホップアップとパフォーマン スパーツも製造しています 。 専用のWebサイ ト（www.carismascaleadventure.com）で、チームドライバーからの最新情報、製品リリース 、セッ トアップのヒントをすべて最新の状態に保ち 、Facebook、lnstagram、 Twit- ter、 TikTokでソーシャルになりましょう。...
  • Page 6 Dieses Produkt enthalt eine Chemikalie, die dem Staat Kalifornien/USA bekannt ist Krebs, Geburtsfehler oder andere reproduktive Schaden zu verursachen. Carisma Scale Adventure garantiert, dass dieses Modeli beim Kauf frei von Defekten in Materiał und Verarbeitung ist. Der gesamte moneta re Wert unter Garantie wird auf KEINEN Fall die Kosten des ursprUnglich gekauften Bausatzes Ubersteigen.

  • Page 7: Misure Di Sicurezza

    SCA-1E 2.1 si monta facilmente con i piu comuni e diffusi attrezzi RC, la sua manutenzione e molto semplice e Io si puc modificare e migliorare con tutti i componenti e gli accessori di terze parti gia esistenti in commercio. Carisma Scale Adventure produce anche tutta una serie di pezzi opzionali e speciali in plastiche ad alte pres- tazioni e alluminio CNC.

  • Page 8: Battery Pack

    A safe and trusted method of powering any genre of RC vehicle. NiMH packs offer a long lifespan of charge cycles, and can easily be stored ready for future use without affecting their performance. Part No: 15927 These items are available on Carisma Online Shop: www.carisma-shop.com...

  • Page 9: Recommended Tools

    Recommended Tools Hex Wrenches (1.5, 2.0, 2.5mm) Nut Drivers (5.5, 7.0mm) Pliers ThreadLock Silicone Shock Oil Grease Icon description Assemble Special Attention Real size Assembly Left & Right side is Required of the part two times the same way Complete Apply Thread-lock Apply Grease ApplyOil...

  • Page 10: Shock Assembly

    Shock Assembly STEP 1 - 4 BAG A / BEUTEL A SAC A / The ’O’ Ring Sits Inside Pre Load Collar Shock Shim A and offers resistance to keep collar in place not tight. Shock Shim A All shock parts under number: 15828 5.8 Ball Link...

  • Page 11: Differential Assembly

    Shock Assembly STEP 5 - 6 BAG A / BEUTEL A SAC A / SHOCK Differential Assembly STEP 1 - 2 BAG B / BEUTEL B SAC B / Bearing 10x15x4 Bearing 10x15x4 15857 Button Head Screw 16024 M2 x 10mm 15823 Button Head Screw M2 x 10mm...
  • Page 12 Modular Axle Assembly STEP 1 - 3 BAG C / BEUTEL C SAC C / Bearing 5x10x4 15857 Flat Head Screw M3 x 6mm Bearing 5x10x4 15875 Bearing 5x10x4 15857 15840 15824 Flat Head Screw M3x6 15841 Socket Head Screw M2 x 8mm Socket Head Screw M2 x 8mm...
  • Page 13 Modular Axle Assembly STEP 4 - 6 BAG C / BEUTEL C SAC C / Socket Head Screw M2 x 8mm Socket Head Srew Socket Head Screw M2 x 8mm M2 x 17mm Socket Head Srew M2 x 8mm 15840 Socket Head Srew Do not over tighten M2 x 17mm...
  • Page 14 Front Shaft Assembly STEP 1 - 3 BAG D / BEUTEL D SAC D / Pin 2 x 10.8 mm 15863 15863 15861 15862 15863 Bearing 5x10x4 Pin 2 x 9.8 15857 15854 Bearing 5x10x4 15857 15845 15854 15844 Shoulder Bolt 15844 15844 Do not over...

  • Page 15: Front Axle Assembly

    Front Axle Assembly STEP 4 - 6 BAG D / BEUTEL D SAC D / Button Head Screw M3 x 6mm Button Head Screw M3 x 6mm STEERING DRAG LINK 5.8 Extend Ball Link All steering links set parts under number: 15852 Button Head Screw M3 x10mm...

  • Page 16: Rear Axle Assembly

    Front Axle Assembly STEP 6 - 6 BAG D / BEUTEL D SAC D / FRONT AXLE Rear Axle Assembly STEP 1 - 2 BAG E / BEUTEL E SAC E / Bearing 5x10x4 15857 Bearing 5x10x4 15857 Pin 2 x 9.8 15854 Button Head Screw 15826...
  • Page 17 Suspension Links Assembly STEP 1 - 4 BAG F / BEUTEL F SAC F / FRONT UPPER LINK All links parts under number: 15852 5.8 Ball Link 67,5 mm 5.8 Extend Ball Link FRONT LOWER LINK 90 mm REAR UPPER LINK 48,5 mm REAR LOWER LINK 71,5 mm...

  • Page 18: Driveshaft Assembly

    Driveshaft Assembly STEP 1 BAG G / BEUTEL G SAC G / Factory pre assembled Pin 2x10 mm Pin 2x10 mm Set Screw M3x3 mm Set Screw M3x3 mm Pin 2.10x10.8 mm Pin 2.10x10.8 mm Gearbox End (With Lip) Axle End (Flat Edge) All steering Driveshaft parts under number: 16009...
  • Page 19 Gearbox Assembly STEP 2 - 4 BAG H / BEUTEL H SAC H / 15857 15832 15822 Diff Output Shaft 16024 Bearing 10x15x4 16291 15857 Diff Case R 15833 Diff Case L 15831 16024 Diff Tube Spacer 16024 16291 Tight fit Button Head Screw Ball Bearing M 2.5 x 10 mm...
  • Page 20 Gearbox Assembly STEP 5 - 7 BAG H / BEUTEL H SAC H / Socket Head Screw 2.5 x10 mm ATT Gear Socket Head Screw 16287 2,5 x10 mm 15870 15868 15869 15868 Spring Washer 15867 15867 Slipper Tube Spacer 15867 15867 15869...
  • Page 21 Gearbox Assembly STEP 8 - 10 BAG H / BEUTEL H SAC H / Button Head Screw M3 x 8mm Button Head Screw M3 x 8mm 15851 15872 Scrub Screw 16019 16019 Driveshaft 16019 Driveshaft Note orientation GEARBOX...

  • Page 22: Chassis Assembly

    Chassis Assembly STEP 1 - 3 BAG I / BEUTEL I SAC I / Button Head Screw Servo not included. M3 x 6mm Choose Servo Horn to Button Head Screw match Spline Count on M3 x 6mm Servo being used. 15942 Button Head Screw M3 x 8mm...
  • Page 23 Chassis Assembly STEP 4 - 6 BAG I / BEUTEL I SAC I / Flat Head Screw M3 x 10mm 15983 Button Head Screw M3 x 8mm 15848 Flat Head Screw M3 x 10mm Flat Head Screw M3 x 8mm Flat Head Screw M3 x 10mm 15982...
  • Page 24 Chassis Assembly STEP 7 - 9 BAG I / BEUTEL I SAC I / Gearbox Note orientation Button Head Screw Motor Faces Forwards M3 x 8mm Button Head Screw M3 x 18mm Button Head Screw M3 x 18mm Button Head Screw M3 x 8mm Button Head Screw M3 x 12mm...
  • Page 25 Chassis Assembly STEP 10-12 BAG I / BEUTEL I SAC I / Button Head Screw M3x20 mm 15828 Button Head Screw M3x16 mm Shock Button Head Screw M3 x 16mm Button Head Screw M3 x 20mm Button Head Screw M3x23 mm Button Head Screw M3 x 23mm Rear Lower Link...
  • Page 26 Chassis Assembly STEP 13-15 BAG I / BEUTEL I SAC I / 15828 Button Head Screw M3 x 16mm Button Head Screw Button Head Screw M3 x 16mm M3 x 20mm Shock Button Head Screw M3 x 20mm Button Head Screw M3 x 23mm Button Head Screw M3 x 23mm...
  • Page 27 Beadlock Wheel and Tyre Assembly STEP 1 -1 BAG K / BEUTEL K SAC K / Socket Head Screw M2.5 x 8mm Socket Head Screw M2.5 x 8mm All Wheel & Tire Set parts under number: 16285 Chassis Assembly STEP 2 - 2 BAG K / BEUTEL K SAC K / 1 16...

  • Page 28: Body Assembly

    Body Assembly STEP 1 - 3 BAG L / BEUTEL L SAC L / Assembly after painting and decals Painted body set - 16020 Double side tape Clear body set - 16021 Rear view mirror Plastic detail parts set - 16022 Note orientation Cross Head Screw M2 x 8mm...
  • Page 29 Body Assembly STEP 4 - 6 BAG L / BEUTEL L SAC L / Note orientation Cross Head Screw M2 x 8mm Click Cross Head Screw M2 x 8mm Note orientation Cross Head Screw M2 x 8mm Click Cross Head Screw M2 x 8mm Note orientation Use glue...

  • Page 30: Final Assembly

    Body Assembly STEP 7 - 8 BAG L / BEUTEL L SAC L / Click Note orientation Use glue Use glue Final Assembly STEP 1 - 1 BAG L / BEUTEL L SAC L / Body Clips 14125 Button Head Screw Body Clips M3 x 8mm 14125...

  • Page 31: Spare Parts List

    CONGRATULATIONS! YOUR RANGE ROVER IS READY TO GO Spare Parts List PART DESCRIPTION PART DESCRIPTION 15821 SCA-1E 39T DIFFERENTIAL CROWN GEAR 15861 SCA-1E FRONT CVD SHAFT 15822 SCA-1E DIFFERENTIAL LOCKER 15862 SCA-1E FRONT CVD DRIVE CUP 15823 SCA-1E DIFFERENTIAL CASE SET 15863 SCA-1E FRONT CVD JOINT 15824...
  • Page 32 ©2021 Carisma。 版權所有。 產品規格可能會更改。 所示的相同型號均為原型，可能會略有不同 從裡面的東西。 ©2021 Carisma. Tutti i diritti riservati. Le caratteristiche del prodotto sono soggette a modifiche. Alcuni prodotti mostrati sono prototipi e possono differire leggermente da quanto fornito. ©2021 Carisma. Alle Rechte vorbehalten. Die Eigenschaften der Produkte können Änderungen unterliegen. Einige dargestellte Produkte sind Prototypen und können leicht von dem lnhalt unterscheiden.
