- Page 1 版本号 密级 内部 阶段 标记 RFL-P20QS/30QS 会签 谢良 20QS/30QS 激光器英文说明书 夏巨江 RFL-P20QS/30QS·JS02 部 门 脉冲激光器技术研究部 编 写 颜鹏晖 20210303 校 对 刘 红 20210305 审 核 李 科 20210305 标 审 李其军 20210305 批 准 黄 保 20210308 旧底图登记 号...
- Page 2 User Instruction RFL-P20QS RFL-P30QS Wuhan Raycus Fiber Laser Technologies CO., Ltd. 2021...
- Page 3 Raycus pulsed fiber laser is classified as a high power Class IV laser device. Before supplying the power to the device, please make sure that the correct voltage of 24VDC power source is connected and the anode and cathode are right.
-
Page 4: Table Of Contents
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS Content Description ....................1 1.1. Product description ......................1 1.2. Actual configuration list ....................1 1.3. Environmental requirements and cautions ..............1 1.4. Specifications ......................... 2 Mounting .................... -
Page 5: Description

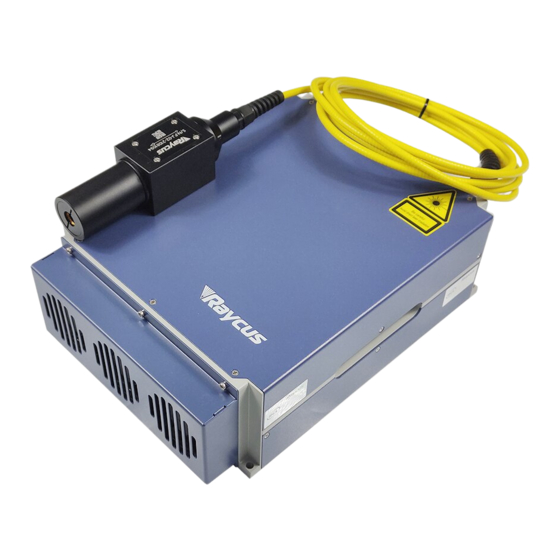

1. Description 1.1. Product description Raycus pulsed laser is an ideal high power laser source with high speed and high efficiency. It is specially designed for industrial laser making system and other applications. Compared with traditional lasers, pulsed laser has some unique advantages in increasing the conversion efficiency of the pump light 10 times higher.Its low power consumption and... -
Page 6: Specifications
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS The device has three cooling fans at the rear panel to dissipate heat. In order to guarantee enough airflow to help giving heat off, there must be a space of at least 10cm’s width for airflow in front and rear side of the device. -
Page 7: Mounting
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS 2. Mounting Mounting dimensions Fiber Laser module dimensions (As shown in Fig. 1). Figure 1. Dimension drawing of laser module(Unit: mm). Isolated output head dimensions (As shown in Fig. 2). -
Page 8: Control Interface
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS Connect the power line to 24VDC power and ensure enough DC output power.Keep it clear to the polarity of the electric current: anode-brown; cathode-blue; PE-yellow and green. - Page 9 Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS system with laser device, please make sure the connection is reliable before operating. Feet of the DB25 are defined as follows in Fig. 5. Figure 5. Connect port of controller Table 3Definition of connect ports of controller PIN No.
-
Page 10: Operation Regulations
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS defined as digital Low. The input current should be above 2mA. Alarms status: Pins 11, 12, 16 and 21 are the alarm and status outputs which driven by +5V power from PIN 17. -
Page 11: Operation Procedures
Wuhan Raycus Fiber Laser Technologies CO., Ltd. Pulsed Fiber Laser User’s Guide V1 20QS/30QS Make sure signal line of laser and marking system are properly connected. Operation procedures Starting procedures Please make sure the controlsystem is on before you turn on the fiber laser. Only after at least 1 minute since the power turned on, the subsequent operations can be preceded. -
Page 12: Instructions For Warranty, Return And Maintenance
Raycus has the right to choose to repair or replace any product that proves to be defective in materials and workmanship selectively during the warranty period. Only products with particular defects are under warranty.
