Mobility Sound PTT-220-VZ User Manual

Bluetooth ptt for zello
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

BT-PTT2 Option
Option Velcro belt type
Option Clip type

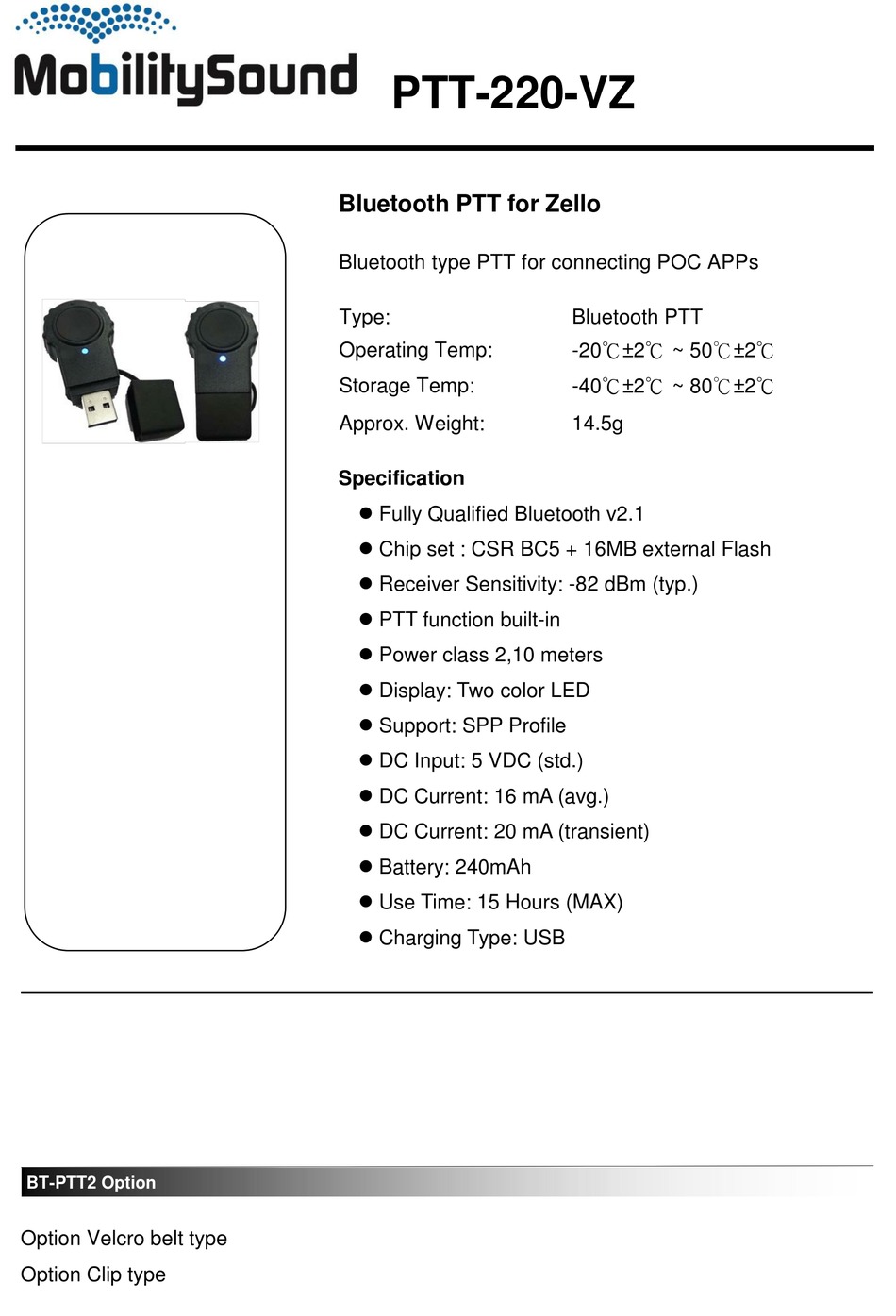

PTT-220-VZ
Bluetooth PTT for Zello
Bluetooth type PTT for connecting POC APPs
Type:
Operating Temp:
Storage Temp:
Approx. Weight:

Specification

 Fully Qualified Bluetooth v2.1
 Chip set : CSR BC5 + 16MB external Flash
 Receiver Sensitivity: -82 dBm (typ.)
 PTT function built-in
 Power class 2,10 meters
 Display: Two color LED
 Support: SPP Profile
 DC Input: 5 VDC (std.)
 DC Current: 16 mA (avg.)
 DC Current: 20 mA (transient)
 Battery: 240mAh
 Use Time: 15 Hours (MAX)
 Charging Type: USB
Bluetooth PTT
-20℃±2℃ ~ 50℃±2℃
-40℃±2℃ ~ 80℃±2℃
14.5g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTT-220-VZ and is the answer not in the manual?

Questions and answers

Related Manuals for Mobility Sound PTT-220-VZ

Summary of Contents for Mobility Sound PTT-220-VZ

  • Page 1 PTT-220-VZ Bluetooth PTT for Zello Bluetooth type PTT for connecting POC APPs Type: Bluetooth PTT Operating Temp: -20℃±2℃ ~ 50℃±2℃ Storage Temp: -40℃±2℃ ~ 80℃±2℃ Approx. Weight: 14.5g Specification  Fully Qualified Bluetooth v2.1  Chip set : CSR BC5 + 16MB external Flash ...
  • Page 2 2. Get in “Settings – Bluetooth” on the smartphone (take LG smartphone for example) and wait for the “PTT-220” to be found. Select “PTT-220”. Though the “PTT-220” doesn’t show “connecting”, it is normal. (NOTE: if the PTT-220-VZ lost the link with “Zello”. Go to settings power off/on Bluetooth again.)
  • Page 3 PTT-220-VZ 3. To set "Push-to-talk buttons" before using the PTT-220-VZ for "Zello" app: First, open the “Zello” app, and click the three dots at the upper left. Next, select the "Options".
  • Page 4 PTT-220-VZ Third, select the "Push-to-talk buttons" and click the "Add" button. When the pop- up window of "Press and release..." is displayed, press the PTT button on PTT- 220-VZ, and it will be connected with "Zello" app.
  • Page 5 PTT-220-VZ Last, the "PTT-220 (Hold to talk)" should display in the window. When you press the PTT button on the PTT-220-VZ, the LED will be red. Now you can use the PTT-220-VZ to work with "Zello" app.
