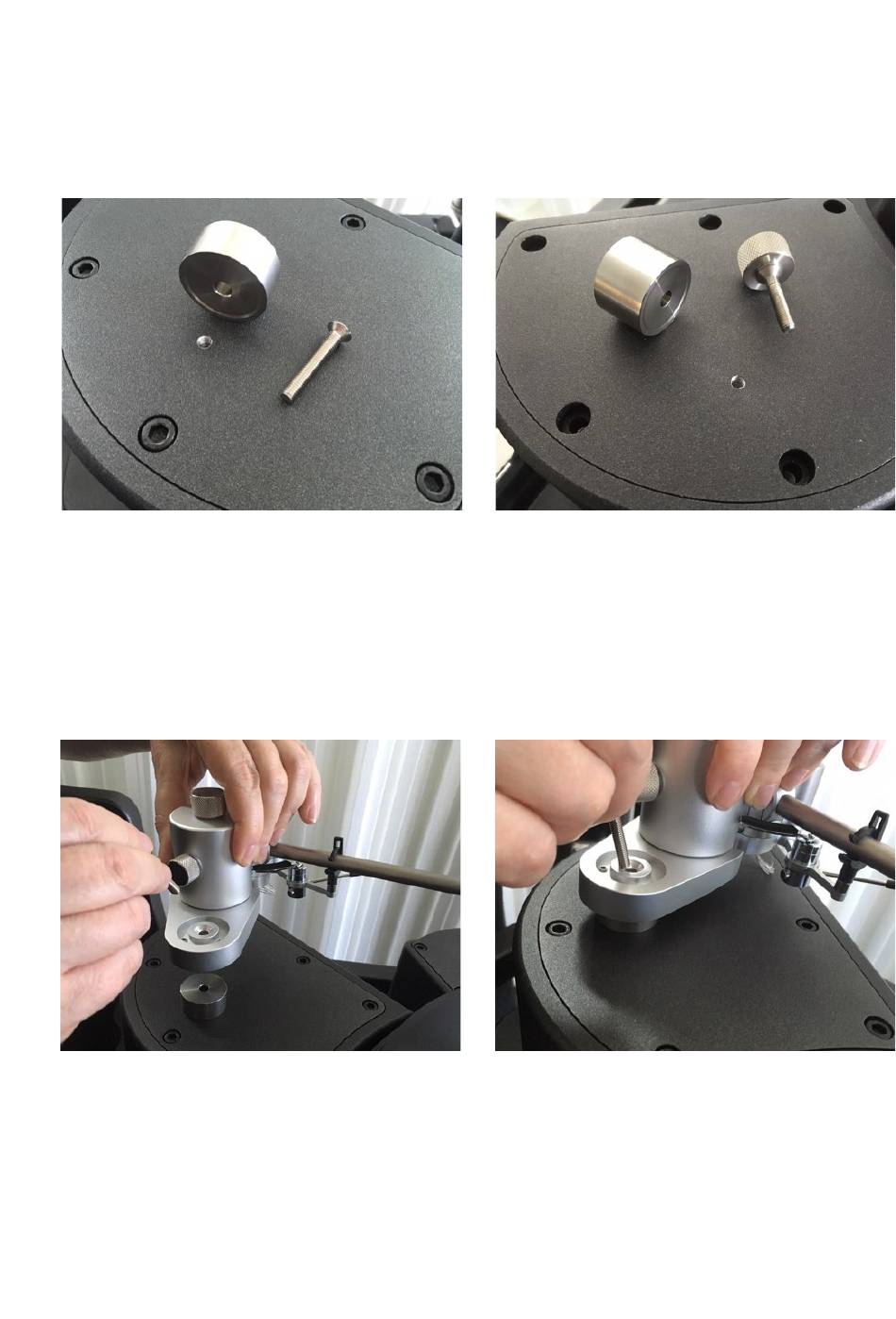

Mounting the AXIOM
Please take one (1) of the 3 different height D29 mm
stainless steel mounting washers and a M5 screw which
is according to the washer.
For the smallest height washer take the shortest screw,
for the middle height the middle ... etc.
Gently place the AXIOM - holding it at the VTA tower
like in the picture - over the plain top of the washer
holding the screw in the other hand.
Place the washer with the „rim" side down over the
thread hole.
You can also use the
special thumb knurl head screw
if you don't need to cover the mounting hole later with
the (purely cosmetic) cover plate.
Place the screw through the mounting hole in the
AXIOM's mounting board.
-
