AXIOM BDA 04-2021

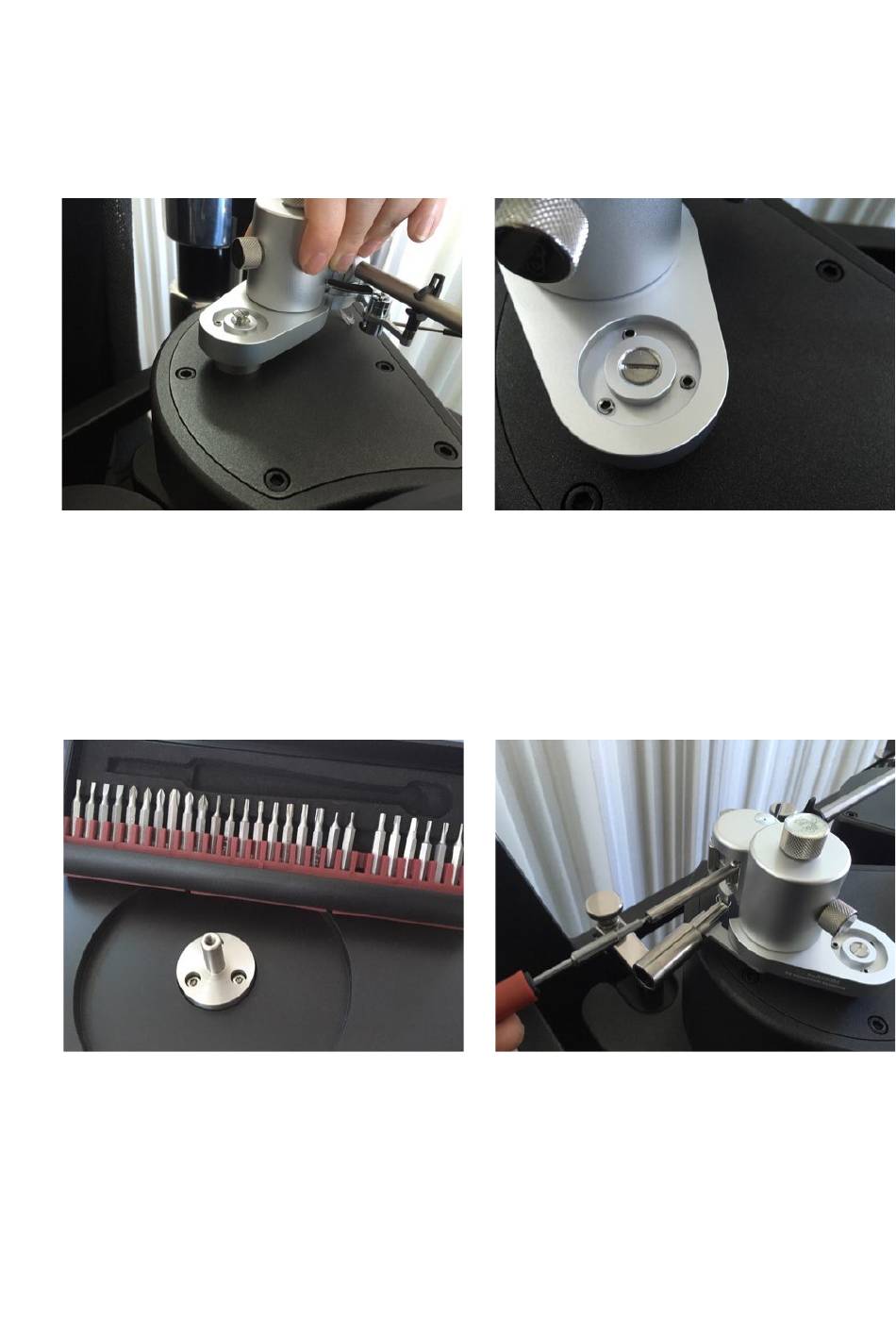

Gently screw the M5 screw down - not tighten it, but
just holding the AXIOM in place and still allowing for
some little „play".
From the AXIOM's accessory box please take the long
tool box and open it.
Select the „1.5" Allen bit and put it in the tip of the bit
holder
Now please note the 3 grub screws in a circle -

each at 120° - around the mounting screw in the center.
We will return to the mounting screw later.
Please turn back the M3 grub screw in the end of the
counter bar by 1-2 revolutions.
10
