AXIOM BDA 04-2021

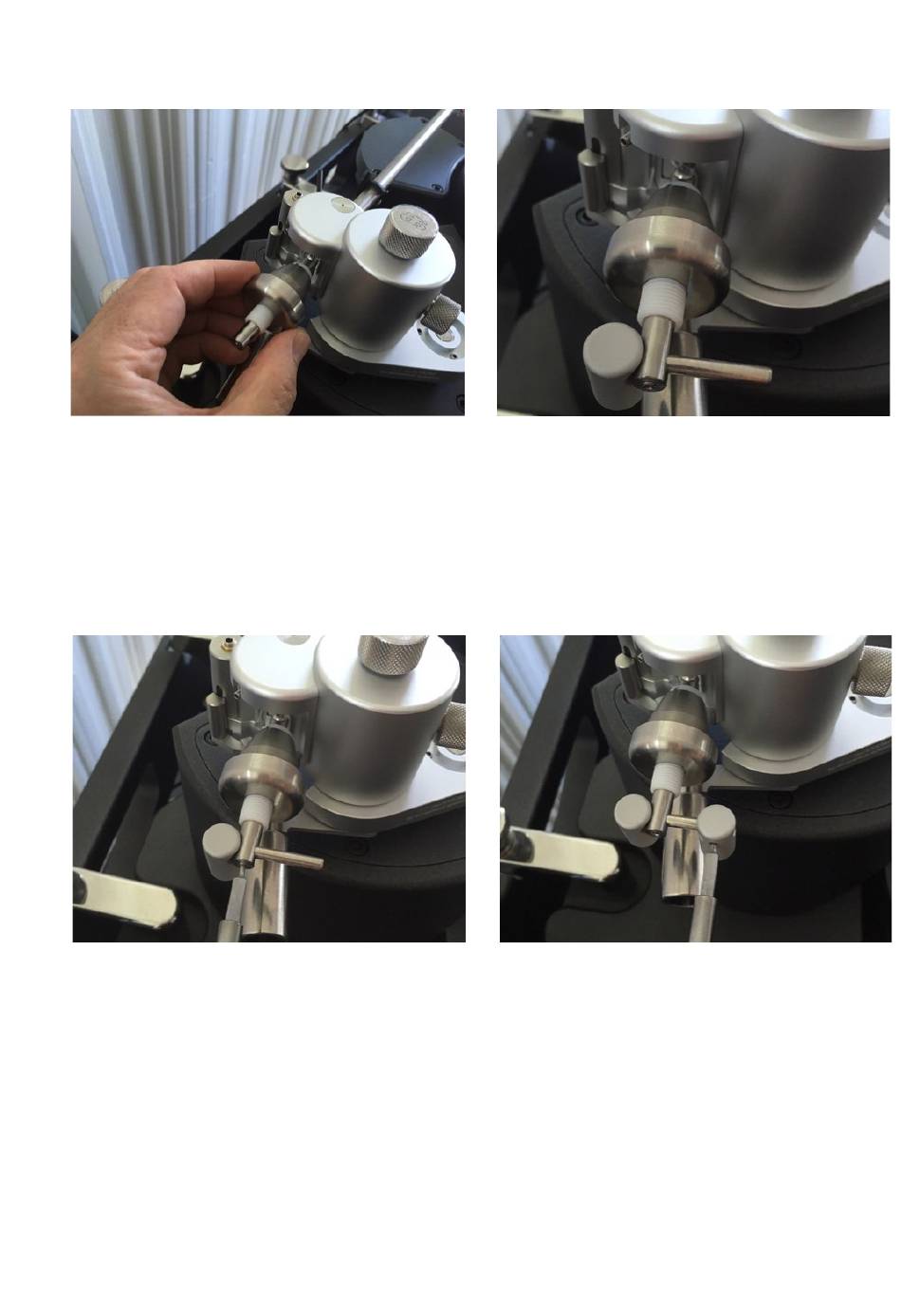

Please slide the counterweight + small auxiliary weight
over the counter shaft.
Now please re-tighten the M3 grub screw in the rear
end of the counter shaft while the lateral cross bar is in
a position like pictured.
Please put the lateral weight bar - with (1) cylinder
attached - through the cross-hole at the end of the
counter shaft.
Now attach and fix the 2nd cylinder as pictured.
Place it at the end of the lateral rod.
This way you counterbalance the breakdown torque
effect of the offset angle.
11
