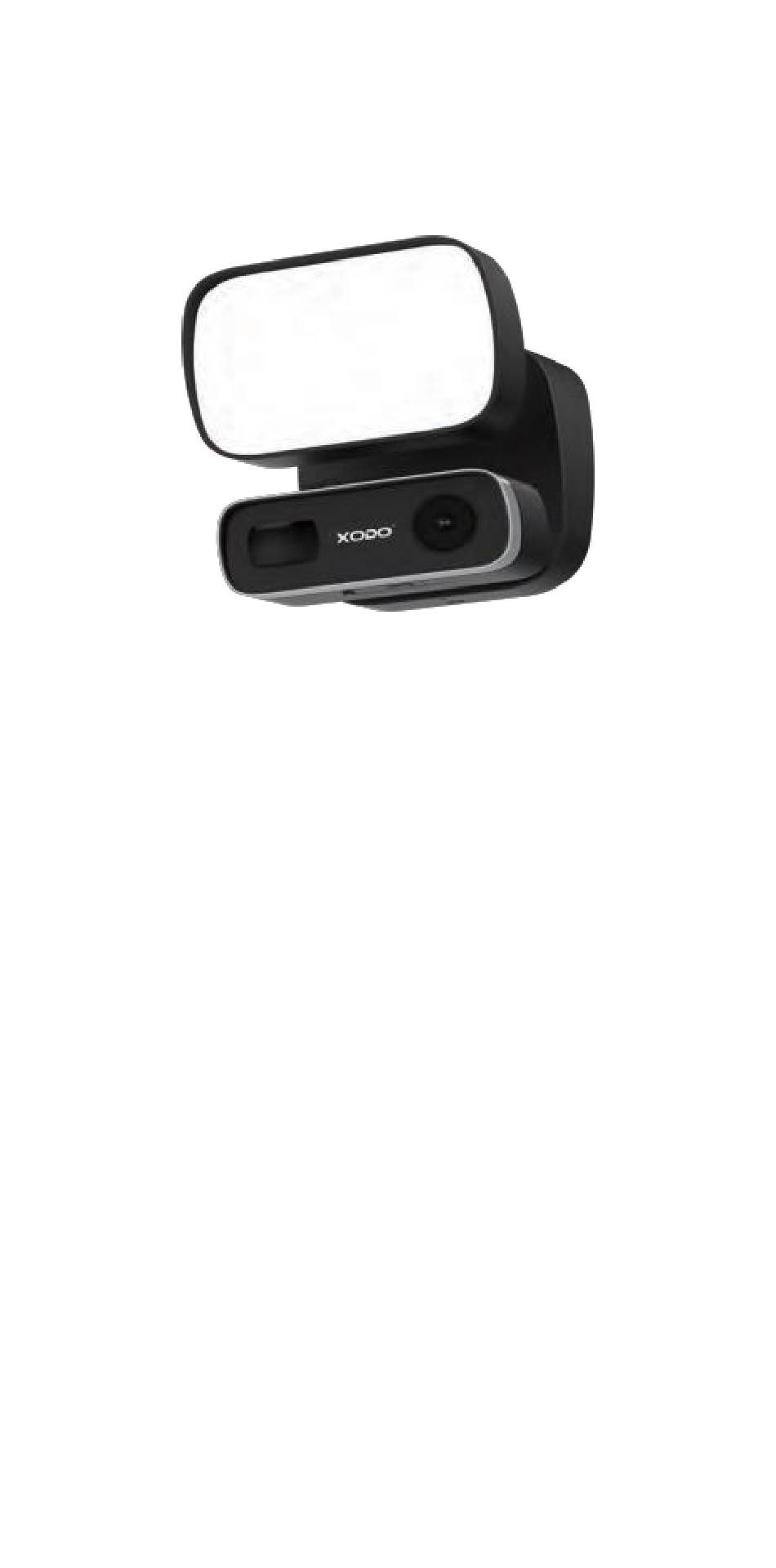

- Page 1 Smart Floodlight Pro-Cam E8 Quick Installation Guide...
-
Page 3: Packing List
Packing List Open the package, then make sure the Smart Floodlight Pro-Cam (device) is intact, and with all the below accessories. Smart Floodlight Pro-Cam Installation Manual Please refer to the installation pictures in the App, and read this manual and keep it handy during installation. - Page 4 Screws(4). Use 2 of these to attach the supplied bracket to the wall. 图片数量要正确 Plastic Screw Sleeves (4) Knock the plastic screw sleeve into the hole. Electrical Caps (3) Use these to connect Smart Floodlight Pro-Cam wires to your existing wires as shown in the diagram.
- Page 5 How it all fits together 4*28 Mounting Electrical Plastic Bracket Caps Screw Sleeves Bracket Screws...
- Page 6 Light Rubber Adjustment Caps Knob Camera Motion Lock Detector Collar （for lights）...
- Page 7 The proper installation height to optimize the motion sensor performance WARNING In order to prolong service life of the equipment, please try to install the equipment in a place without rain and high temperature and humidity. Parallel to groud 26 feet (8 Meters)
- Page 8 When mounted at 10 feet （3 meters) off the ground, with the motion detector tilted at about a 30 degree angle toward the ground. (Please refer to below diagram). the Smart Floodlight Pro-Cam will detect human sized objects at a distance of up to 25 feet (8 meters). 10 feet (3 Meters)
- Page 9 Step 1 - Shut power off at the breaker box. If you don’t know where your breaker box is or how to turn off power to the circuit where you are installing your Smart Floodlight Pro-Cam, Please consult with a licensed electrician.
- Page 10 Step 2 - Remove the mounting bracket Use a screwdriver to unscrew the screws. Remove the mounting bracket.
- Page 11 Step 3- Install the waterproof rubber gasket onto the bracket. Attach the waterproof rubber gasket onto the mounting bracket, press into the 6 holes to fix it to the device.
- Page 12 Step 4- To determine the location First, determine the height of the chassis, and then use a pen to draw the position of the screw holes and mark their position.
- Page 13 Step 5 - Choose a proper place for drilling Before drilling, ensure that the holes do not Impact pipe work, cables, electrical wiring or other building services that may run through the wall. Knock the plastic screw sleeve into the hole.
- Page 14 Step 6 - Fix base Carefully push all the wires through the large opening in the bracket. Tighten the screws and fix the base. Pay attention to the horizontal position on the top. Please reference below Diagrams.
- Page 15 Step 7- Connect the power wire Connect power wire to terminals Black(Hot) and White( Neutral) 颜色错误, 跟工厂确认电源极性，千万不要犯错！ Brown(Fire) White(Neutral) Ternimals(Ground) If you don’t know which is neutral or fire wire coming out of the junction box, consult with a licensed electrician. Align the mounting posts with the holes on Floodlight Cam and press together, securing the screw cap nuts with the screwdriver.
-
Page 16: Step 8 - Mounting Bracket
Step 8 - Mounting bracket Tighten the screws with a phillips什么意思？ head. Put the waterproof rubber cap on the screw hole. - Page 17 Step 9 - Adjust the Angle of the Floodlight and camera Loosen or tighten the screw to adjust the Floodlight angle Loosen or tighten the screw to adjust the camera angle Do not remove your led light part or camera part from the ball socket on the base.
-
Page 18: Step 11 - App Setup
Please switch it from [OFF] to [ON] Step 11 - App setup Open the App Xodo ProCam, follow the user manual to connect the Smart Floodlight Pro- Cam to your WiFi network. - Page 19 换好点图片 Connect Smart Floodlight Pro-Cam to Your APP...
- Page 21 1.Preparation Please prepare the below stuff before you use it. One smartphone, or tablet (Mac or Windows PC is NOT acceptable) Smart Floodlight Pro-Cam is supported on IOS 10.0 or newer and Android OS 4.4 or Newer. Android phone iPad iPhone Wi-Fi Router Device can only connect to 2.4Ghz Wi-Fi router.
- Page 22 Green LED indicator status: 灯要绿色 No power or WiFi connected Device is starting Slow blink Fast blink Waiting connect to WiFi WiFi disconnected Micro SD card user caution 多大卡？ To ensure SD card video recording works properly, we recommend a Class 10 or above version high speed Micro SD card.
- Page 23 Operation Instruction （IMPORTANT! please read. ） After installing the Smart Floodlight Pro-Cam, turn on the power and wait for about 40 seconds , you can move on to next step after the first chime or tone. you will hear the sound 3 times.
- Page 24 Internet 2.4G Wi-Fi Please put the device as close as possible to WiFi router within 5 meters (16 feet). (If unable to do this, we rec ommend you install Wi-Fi extender that can help boost WiFi signal)
-
Page 25: Configure Device
Configure Device Open the App AT&T 11:57 AM My Device Click " " 2.4G Wi-Fi Make sure your smartphone is connected to your WiFi router before configuring. AT&T 11:57 AM My Device First Add Click "First Add" Manual Add... - Page 26 AT&T 11:57 AM Device Name Name the device What would you like to name the device? BackYard Front Door Side Customize... AT&T 11:57 AM Scan QR Code Light Scan the QR code on the back housing标签要换掉，容易掉 Scan the QR code on the back housi ng. ，最好放在说明书或包装盒上...
- Page 27 WARNING AT&T 11:57 AM Input WiFi Password Cancel Don't use Characters or special WiFi SSID: Test1 symbols in your WiFi name. WiFi Password: Please input WiFi password Don't use Characters or special Next symbols in your WiFi password the WiFi Input the correct password for Please put your smartphone AT&T...
- Page 28 Wait for about 60 seconds, the configuration will be done. (After the configuration is sucessful, AT&T 11:57 AM the green LED indicator will be off in Configure Device about 60 seconds.) If configuration failed 100% Please make sure you input password correctly ( check for capitals &...
-
Page 29: Watch Video
Watch Video AT&T 11:57 AM BackYand 2018/01/01 08:30 AUTO Make an emergency call Siren(Activate the 110 Siren decibel siren) Light switch To view the photos and Storage videos AT&T 11:57 AM Return BackYand 2018/01/01 08:30 Ring the bell Full screen Listen LD/HD Switch Recording... - Page 30 Tips on WIFI Configuration Make sure the device is powered on. Make sure the device is ready to be configurated. Slow blink 3.Make sure the phone is connected to WiFi，and the volume is adjusted to maximum. Please adjust the volume to maximum Make sure using the 2.4GHz , and the router's DHCP is turned on.(If you don't know how to switch from 5Ghz to 2.4Ghz, please consult to the service provider of...
- Page 31 Tips on WIFI Configuration If it failed again, please: 1. After the device is powered on, press and hold the " Reset" button for 5 seconds , reset the device, wait for 40 seconds, You can move on to next step after the first chime or tone. you will hear the sound 3 times.
- Page 32 For more questions, please refer to FAQ list in Our APP AT&T 11:57 AM My Device Open the App, then click " " AT&T 11:57 AM My Device Feedback Product instructions Click "FAQ" enter FAQ page...
-
Page 33: Fcc Statement
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 34 About the User Manual: The user manual is used as a guide. The photos, graphic, charts and illustrations provided in the user Manual are only used as explanation and interpretation, which may be different for specific products, please refer to the real object. The user manual maybe updated because of the products version upgrade or other requirements, if you need the latest version of the user manual, please contact customer service for the latest version of the user manual.
- Page 35 CONTACT INFORMATION E-Mail: support@contixo.com Website: www.contixo.com ©2019 Contixo Inc. All rights reserved. XODO ® , the Contixo logo and associated characters, trademarks and design elements are owned and licensed by Contixo Company.
