PROMARKS Promax DC-860 Operation Manual

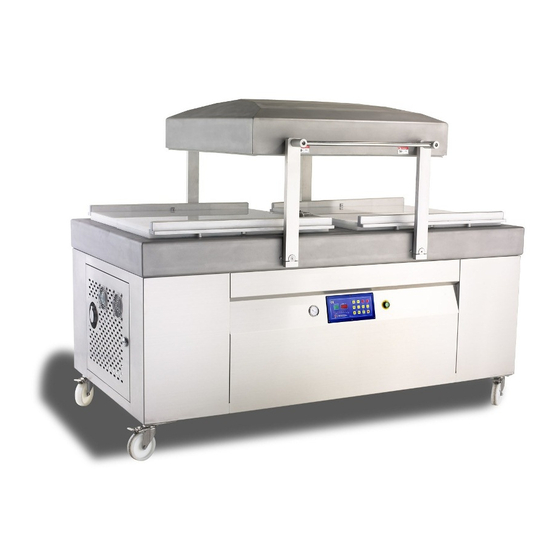

Double chamber vacuum packaging machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

DC-860
Double Chamber Vacuum Packaging
Machine
Operation Manual
Version 6.9.1
PROMARKS INC
1915 E. Acacia Street, Ontario, CA91761, U.S.A
TEL
: 1-909-923-3888
FAX : 1-909-923-3588
http://www.promarksvac.com
S/N:
QC SIGNATURE:
