Johnson Controls FireClass FC700 Series Installation Manual page 8

FIRECLASS Fire detection system

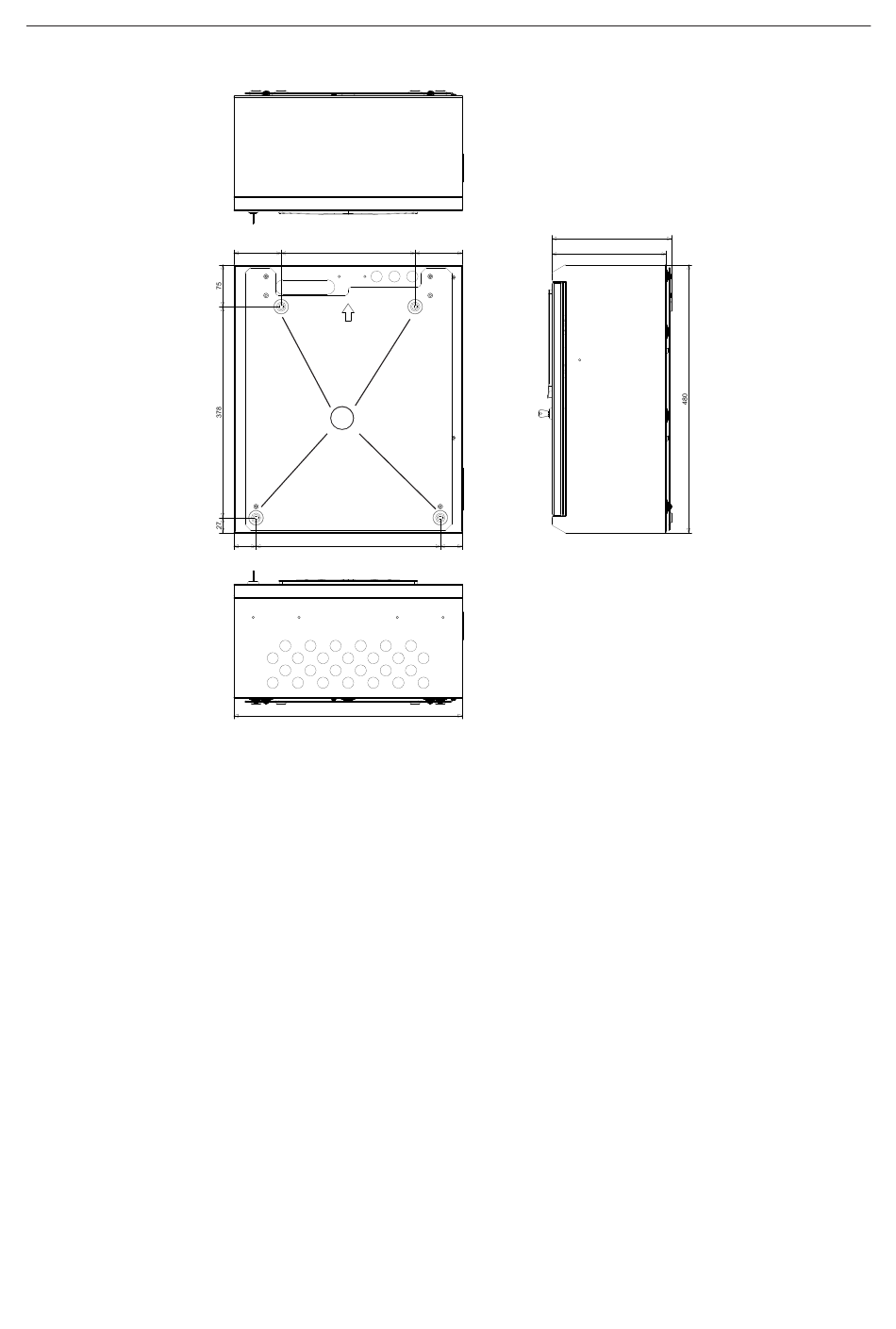

Fig. 3: FC702D, FC718D and FC708D panels - Mounting plate fixing and overall dimensions in mm
1– Mounting frame holes
Installation Guide Doc. version 2.0
85 240
1
40 330
410
Mounting a FC702/708/718 panel to the wall
214.5
85
205
40
8
