Instruction Manual
Automatic
Upper ArmBlood Pressure Monitor

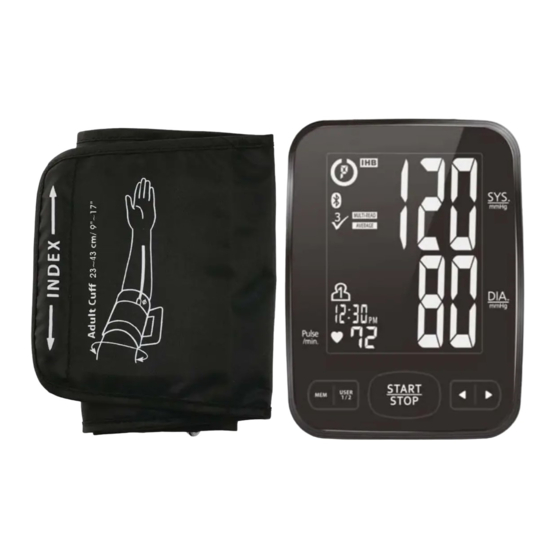

Model No. HL858CB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL858CB and is the answer not in the manual?

Questions and answers

Related Manuals for Health & Life HL858CB

Summary of Contents for Health & Life HL858CB

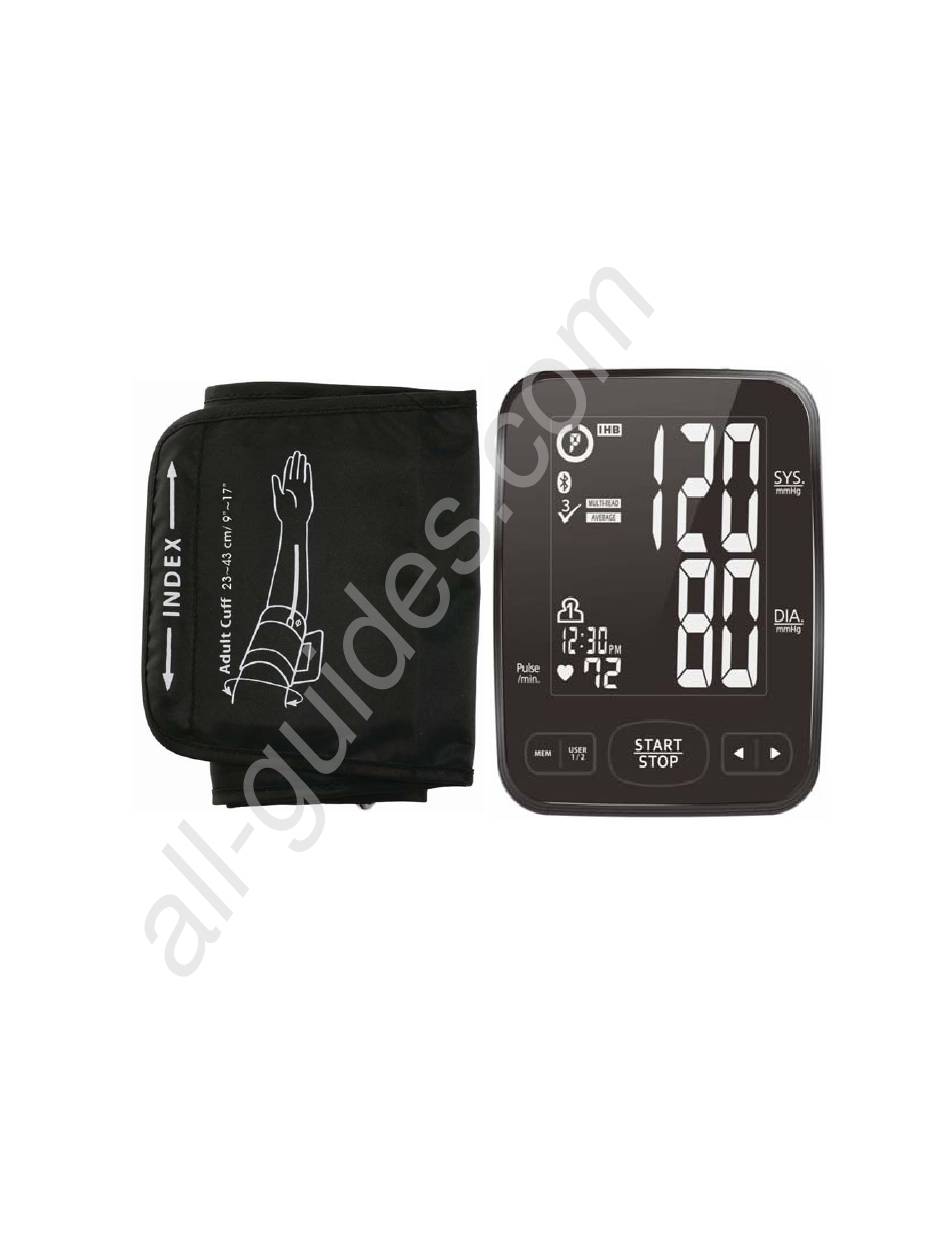

  • Page 1 All manuals and user guides at all-guides.com Instruction Manual Automatic Upper ArmBlood Pressure Monitor Model No. HL858CB...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method…………..……………………………………………………06 Accuracy……………………….…………………………………………………………………06 Precautions………………….…………………………………………………….…………….. 07 Device Overview……………………………………………………………………………….09 Symbol Definitions………………………………………………………………………….12 Features………………………………………………………………………………………….13 InstallingBatteries………………………………………………………………………….18 Using the AC Adapter………………………………………………………………………19 Applying the Cuff…………………………………………………………………………….20 Measurement Procedure………….…………………………………………………….21 Bluetooth Transmission………………………………………………………………………25 Memory Function…………………………………………………………………………….26 Storage and Maintenance……………………………………………………………….29 Troubleshooting……………………………………………………………………………….30 Warranty &...

  • Page 3: Medical Disclaimer

    All manuals and user guides at all-guides.com Medical Disclaimer This manual and product are not meant as a substitute for advice provided by your doctor. You are not to use the information contained herein, or this product for diagnosing or treating a health problem or prescribing any medication. If you have or suspect that you have a medical problem, promptly consult your healthcare provider.

  • Page 4: About Blood Pressure

    All manuals and user guides at all-guides.com About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 5 All manuals and user guides at all-guides.com A Abou ut Bl Pres ssur A. Stan dards fo or assess sment o f high o r low bl ood pres ssure with out rega ard to ag e, have b been est ablished d by the W WHO,...

  • Page 6: Measurement Method

    This is the result displayed on the monitorscreen. Once the measurement is complete, the cuff will automaticallydeflate. Accuracy HL858CB Automatic Upper Arm Blood Pressure Monitor has been clinically tested against a scientificdevice called sphygmomanometer, considered thegold standard in blood pressure measurement.

  • Page 7: Precautions

    All manuals and user guides at all-guides.com Precautions * Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider.
  • Page 8 All manuals and user guides at all-guides.com Precautions For those who have had mastectomy surgery (especially whose’ lymph nodes removed), it’s recommend take a measurement on the unaffected side. When used among medical electronic equipments on the same limb, pressurization of the cuff may cause temporarily malfunction toother devices.

  • Page 9: Device Overview

    All manuals and user guides at all-guides.com Device Overview Part names and product components LCD Display Battery Cover (located on bottom of Unit) MEMORY BUTTON RIGHT BUTTON LEFT BUTTON START / STOP USER-SELECT BUTTON BUTTON AA(LR6) (1.5V) ARM CUFF WITH TUBE ALKALINE BATTERY X 4...
  • Page 10 All manuals and user guides at all-guides.com Device Overview DATE/ TIME SET BUTTON AM/PM AVERAGE BUTTON REST ASSURE TRIPLE-CHECK MODE SWITCH FUNCTION SWITCH DC JACK 6V 1A AC Adapter *Caution ！ Substitution of a component different from that supplied might result in measurement error.
  • Page 11 All manuals and user guides at all-guides.com Device Overview Unit display Low Battery Symbol Irregular Heartbeat Detector Error Symbol Risk Category Indicator Rest Assure Mode Symbol Bluetooth Symbol Systolic Rate Triple-Check Function Indicator AM/PM Average Symbol User Symbol Diastolic Rate Combine Date and Time display Also represents Year value Pulse...

  • Page 12: Symbol Definitions

    All manuals and user guides at all-guides.com Symb bol D Defin nition SYMBOL Definit tions his symbol appears wh hen the bat tterypower is excessiv vely lowor he polarity reverses. We sugge est you repl ace all batt terieswith n new ones, a and make wBattery S...

  • Page 13: Features

    All manuals and user guides at all-guides.com Features Risk Category Indicator This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into four stages (Normal, Pre-hypertension, Stage 1 Hypertension to Stage 2 Hypertension) based on the blood pressure standards established by the U.S. Department of Health and Human Services and the National Institutes of Health.The indicator symbols are defined as following classifications: You may use the function to effectively track your blood pressure.
  • Page 14 All manuals and user guides at all-guides.com Features For adults 18 and older who are not on medicine for high bloodpressure, are not having a short-term serious illness, and do nothave other conditions, such as diabetes and kidney disease.To determine category of risk when systolic and diastolicreadings fall into two areas, use the higher of the two numbers forclassification.
  • Page 15 All manuals and user guides at all-guides.com Features Rest Assure Function Before measurement, it is suggested that you sit quietly for 5 minutesbefore measurement as measurements taken in a relaxed stateaccording to JNC7 report to have a greater accuracy. HL858CBprovides users a helpful countdown function(REST ASSUREon/off switch) for 5 minutesbefore the measurementthat helps users to get accurate results.To turn this feature OFF, slide the switch on the back to the OFF position.
  • Page 16 All manuals and user guides at all-guides.com Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking...
  • Page 17 Bluetooth device. Moving away from the source of the interference or turning off these devices to resolve the problem. Make sure HL858CB and paired Bluetooth device are within acceptable distance (no more than 10 meters) with each other. If not, put them closer.

  • Page 18: Installingbatteries

    All manuals and user guides at all-guides.com nsta alling g Bat tterie When LOW W BATTER RY SYMB appears s on the display, or no eaction to owardope ration, pl lease cha nge batte eries. Replace al l worn-ou ut batterie es with ne ew ones a and do no...

  • Page 19: Using The Ac Adapter

    All manuals and user guides at all-guides.com Using the AC Adapter This monitor is designed for operation with batteries or an AC adapter. Please use only a compatible AC adapter with required voltage and current as indicated in this manual. Note: No batteries are needed when operating with an AC adapter.

  • Page 20: Applying The Cuff

    All manuals and user guides at all-guides.com Applying the Cuff Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on the inside of your left arm to determine where your strongest pulse is. Slide the end of arm cuff furthest from the tube through the metal ring to a loop.

  • Page 21: Measurement Procedure

    All manuals and user guides at all-guides.com Meas surem t Pro oced dure Swit tch on the M onitor A. Put in 4 AA (LR R6) alkalin ne batter B. All seg gments a ppear on the scree en for 3 s seconds.
  • Page 22 All manuals and user guides at all-guides.com Meas surem t Pro oced dure Selec ct User (s see LCD D Displays b below). Press butto on to conf firm the c chosen us ser. D-1. Sta art a Sing gle Meas suremen ke sure th he Triple-...
  • Page 23 All manuals and user guides at all-guides.com Meas surem t Pro oced dure -1.Start a Multi-M Measure ement:wi ill take c continua tive 3 tim measurem ments. ke sure th he Triple- Check fu nctionswi itch turne ed on. If R REST ASSU URE MOD DE is on, w...
  • Page 24 All manuals and user guides at all-guides.com Meas surem t Pro oced dure -2.Start a Multi-M Measure ement:wi ill take c continua tive 3 tim measurem ments. 1. Mak ke sure th he Triple- Checkfun nctionswit tch turned d on. 2.

  • Page 25: Bluetooth Transmission

    B luetooth device, p please retry as s mention n above. ail conne ection: f HL858CB B cannot connect t to paired Bluetoot evice ove er 15 seco onds, LCD D will disp play Error message “...

  • Page 26: Memory Function

    All manuals and user guides at all-guides.com Func ction Stor ring da After eac ch measu urement, the systo olic and d diastolic p pressure, heart rate, Risk k Categor ry Indicato or and Irr regular he eartbeat d detector ( (if any) with date e and tim...
  • Page 27 All manuals and user guides at all-guides.com Func ction Reca alling D Data in n Aver age M emory y Mode Sele ect User f first. ss MEM k key to ent ter Memo ory Mode, andLCD disp playsan a verage of f the last 3 memo...
  • Page 28 All manuals and user guides at all-guides.com M Mem Func ction Reca alling D Data in n Aver age M emory y Mode lect User first. ess AM/PM Mbutton t to enter M Memory M Mode. D display s average e of latest t 3 AM m easureme...

  • Page 29: Storage And Maintenance

    All manuals and user guides at all-guides.com S Stora age a Main ntena ance Gene eral Us Do not in any wa ay twist t the cuff. Do not press button if f the cuff is not wra appedaro ound your rupper arm.

  • Page 30: Troubleshooting

    Symbol Error determ mining mea asurement data. easure aga Meas suring Error r Symbol Plea ase refer to HL858CB ca annot conn ect to ge 25 “Bluet tooth Bluetooth-e enabled dev vice over 15 Fail Connec ction Tran nsmission”...

  • Page 31: Warranty & Recalibration

    All manuals and user guides at all-guides.com Warranty & Recalibration Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product;...

  • Page 32: Specifications

    All manuals and user guides at all-guides.com Specifications Model Number HL858CB Measurement Oscillometric Method RatedRange of Cuff 0~300 mmHg Pressure RatedRange of 40~280 mmHg Determination MeasurementRange 40~199 beats/minute of Heart Rate Pressure: ±3 mmHg Accuracy Pulse: ±5% Max. Inflation Automatic Inflation (Air Pump)
  • Page 33 All manuals and user guides at all-guides.com Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 0dBm Data Throughput 0.2Mbps Expected Delay (Latency The latency time is less than 0.3ms from Range) in Wireless (RF) sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) Integrity...

  • Page 34: Note

    All manuals and user guides at all-guides.com Note Follow instructions for use. BF Classification: - The applied part is cuff - Internally powered equipment - BF type applied part - IP22 - Not suitable for use in presence of flammable anesthetic mixture with air or with Oxygen or nitrous oxide - Continuous operation with short-time loading To avoid inaccurate results caused by electromagnetic interference...
  • Page 35 “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. Essential Performance compliance criteria: HL858CB essential performance compliance criteria of IEC 60601-1-2 forimmunity testing: The following degradations that associated with basic safety and essentialperformance should not be allowed.

  • Page 36: Appendix

    All manuals and user guides at all-guides.com Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions...
  • Page 37 All manuals and user guides at all-guides.com Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).

  • Page 38: Blood Pressure Diary

    All manuals and user guides at all-guides.com Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse：...
