- Page 1 Automatic Wrist Blood Pressure Monitor...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method…………………………………………………………………06 Accuracy……………………………………………………………………………………………07 Precautions…………………….…………………………………………………………………08 Device Overview……………………………………………………………………………….10 Symbol Definitions………………………………………………………………………….12 Features………………………………………………………………………………………….13 Installing Batteries………………………………………………………………………….18 Applying the Cuff…………………………………………………………………………….19 Positioning Guide………….………………………………………………………………….20 Measurement Procedure………….…………………………………………………….21 Memory Function…………………………………………………………………………….23 Bluetooth Transmission……………………………………………………………………24 Storage and Maintenance……………………………………………………………….25 Troubleshooting……………………………………………………………………………….26 Warranty & Recalibration……………….……………………………………………….27 Specifications………………………………………………………………………………….28 Note………………………………………………………………………………………….…….30 Appendix…………………………………………………………………………………….…….32 Blood Pressure Diary……………….……………………………………………….…….34... -
Page 3: Medical Disclaimer
5.3 inches to 7.7 inches (approx. 135 mm to 195 mm) and for home use. HL158LD detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the BP Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level. -
Page 4: About Blood Pressure
About Blood Pressure A. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. WHO blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the World Health Organization (WHO), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.
-
Page 6: Measurement Method
Measurement Method HL158LD Automatic Wrist Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your wrist, just turn on the monitor and inflation automatically starts. The inflation of the cuff creates pressure around the arteries inside the wrist. -
Page 7: Accuracy
Accuracy HL158LD Automatic Wrist Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL158LD Automatic Wrist Blood Pressure Monitors have performed equivalent to measurements taken with this scientific... -
Page 8: Precautions
Precautions * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. * The device is designed for home use and not suitable for clinical use. * This monitor is not intended for use in the MR environment. ... - Page 9 Precautions For those who have had mastectomy surgery (especially lymph nodes removed), it’s recommend take a measurement on the unaffected side. When used among medical electronic equipment on the same limb, pressurization of the cuff may cause temporarily malfunction to other device.
-
Page 10: Device Overview

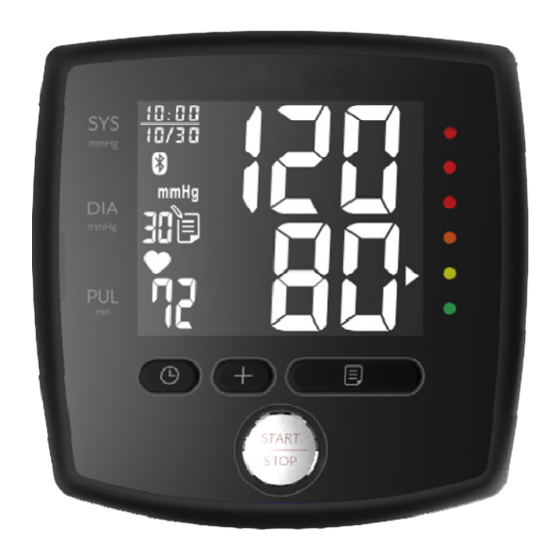

Device Overview Product components LCD DISPLAY BP CATEGORY INDICATOR MODE BUTTON MEMORY BUTTON START / STOP BUTTON BUTTON AAA “LR03” (1.5V) STORAGE ALKALINE BATTERY X 2 CASE *Caution ！ Substitution of a component different from that supplied might result in measurement error. - Page 11 Device Overview Unit display Hour : Minute (Also represents YEAR in Setting Mode) Systolic Rate Month / Date Bluetooth Symbol Blood Pressure Unit Low Battery Symbol BP Category Indicator Memory Record Number Pulse Symbol Irregular Heartbeat Detector Diastolic Rate Heart Rate...
-
Page 12: Symbol Definitions
Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses. We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat. -
Page 13: Features
Features BP Category Indicator This device is equipped with BP Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Stages of Blood Systolic Diastolic Recommendations by Color Pressure Levels (mmHg) (mmHg) SIGN 49: Hypertension in older people... - Page 14 Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this symbol.
- Page 15 *Note ！ HL158LD is subject to and complies with electromagnetic compatibility (EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 300 328 and U.S. federal guidelines, Part 15 of the FCC (Federal Communications Commission) rules for devices with RF capability. These guidelines help ensure that your device will not affect the operation of other nearby devices.
- Page 16 Features Application Software for Bluetooth To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install “DailyChek ® ” application software from Google Play on the Bluetooth-enabled device which is compatible with Android 4.3 or iOS 7.0 or above.
-
Page 17: Installing Batteries
Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either. -
Page 18: Applying The Cuff
Applying the Cuff Do not place the pressure cuff over a jacket or sweater sleeve. Wrap the pressure cuff around the bare wrist with the monitor facing you. Wrap the cuff snugly. Do not make it too tight. Fold the remaining part of the cuff back ... -
Page 19: Positioning Guide
Positioning Guide It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. 1. Sit on a chair comfortably, put your feet flat on the floor and lay your forearm on the table, make sure your back and arm supported, legs uncrossed. -
Page 20: Measurement Procedure
Measurement Procedure Switch on the Monitor A. Press button to switch on the monitor. B. All segments appear on the screen. Setting Year, Date and Time A. Press button ("YEAR" flashes). Press button to adjust YEAR value. B. Press button ("MONTH"... - Page 21 Measurement Procedure A. With the cuff wrapped around your wrist, press button to start measurement. All display units appear on the screen. *Note ！ Do not inflate the cuff until it is wrapped around your wrist. B. After all symbols disappear, the display will show “00”.
-
Page 22: Memory Function
Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate with date and time will be automatically stored. The monitor can store up to 99 memory sets for one user, and automatically replace the oldest data with new one. ... -
Page 23: Bluetooth Transmission
2. While transmitting the reading to your Bluetooth-enabled Device, HL158LD Bluetooth Symbol will remain steady on the screen. 3. HL158LD can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other Bluetooth-enabled device, please retry as mention above. -
Page 24: Storage And Maintenance
Storage and Maintenance General Use Do not in any way twist the cuff. Do not press button if the cuff is not wrapped around the wrist. Do not drop the product and avoid any strong impacts. Maintenance ... -
Page 25: Troubleshooting
Troubleshooting INDICATION/CORRECTI SYMBOLS/SYMPTOMS CONDITIONS/CAUSES Unit does not turn on Replace them with 2 new Worn-out batteries. AAA (LR03) alkaline when button is batteries. pushed. Re-insert the batteries in Battery polarities have been the correct positions. positioned incorrectly. Wrap the cuff properly so Cuff has been placed incorrectly. - Page 26 Warranty Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply; loss of power; dropped product; malfunction damage operating part...
-
Page 27: Specifications
Specifications Model Number HL158LD Measurement Oscillometric Method Rated Range of Cuff 0 ~ 300 mmHg Pressure Rated Range of 40 ~ 280 mmHg Determination Measurement Range 40 ~ 199 beats/minute of Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max. - Page 28 Specifications RF Type Bluetooth 4.2 BLE RF Modulation GFSK Effective Radiated Power 0dBm Data Throughput 0.2Mbps Expected Delay (Latency The latency time is less than 0.3ms second Range) in Wireless (RF) from sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) Integrity technology increases the effective data rate and integrity in noisy environments.
-
Page 29: Note
Note Explanation of symbols : Symbol Explanation Health & Life Information Follow instruction for use TYPE BF Applied Part Warning: Portable RF communications equipment (including peripherals such as antenna cables and external To avoid inaccurate results caused antennas) should be used no closer than 30cm (12 inches) to any part of the device, Otherwise, by electromagnetic interference degradation of the performance of this equipment... - Page 30 *Note ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL158LD essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from ...
-
Page 31: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation. - Page 32 Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).
-
Page 33: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
