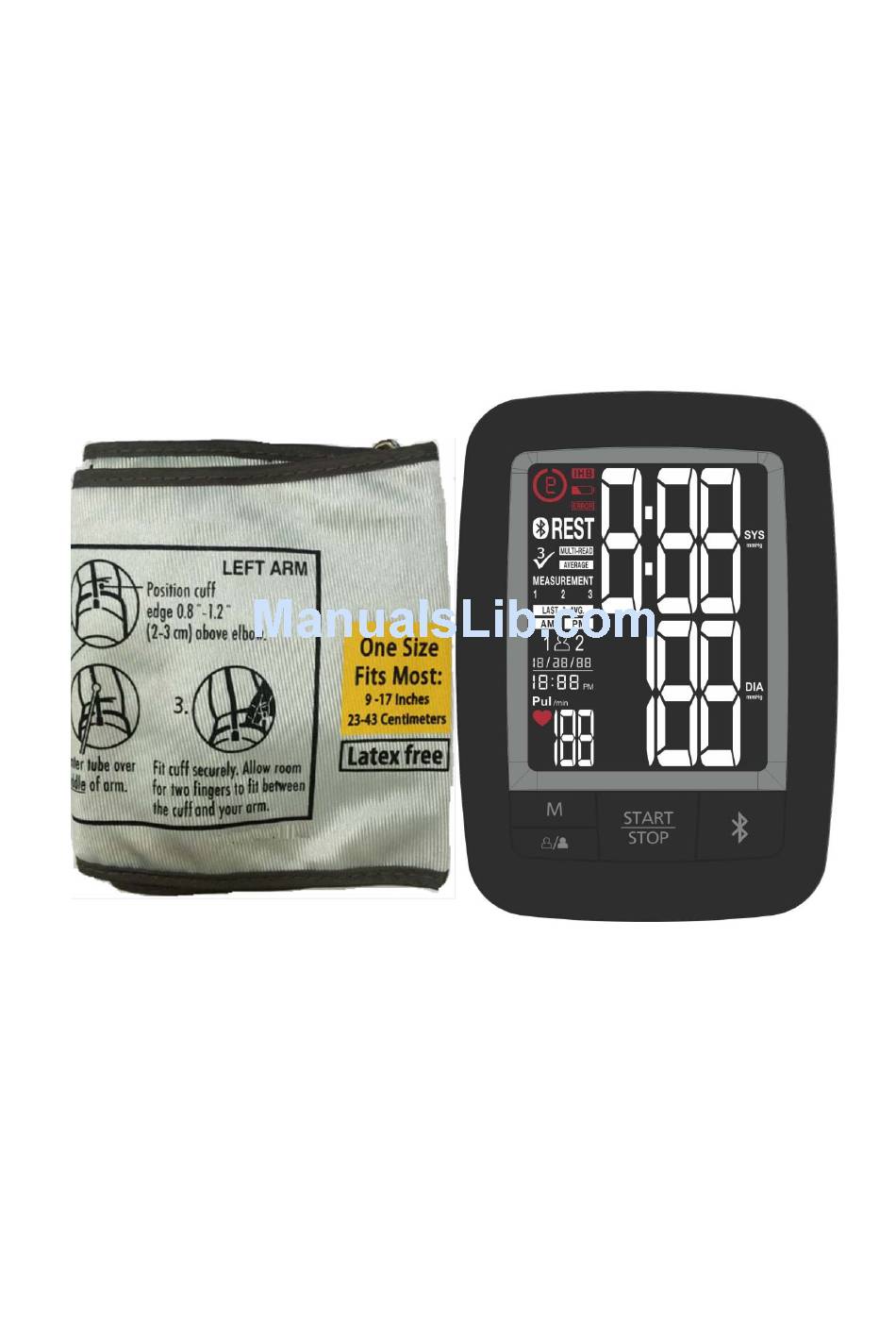

- Page 1 Instruction Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL858CG...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method…………..……………………………………………………06 Accuracy……………………….…………………………………………………………………07 Precautions………………….…………………………………………………….…………….. 08 Device Overview……………………………………………………………………………….10 Symbol Definitions………………………………………………………………………….13 Features………………………………………………………………………………………….14 Installing Batteries………………………………………………………………………….20 Using the AC Adapter………………………………………………………………………21 Applying the Cuff…………………………………………………………………………….22 Measurement Procedure………….…………………………………………………….23 Bluetooth Transmission………………………………………………………………………30 Memory Function…………………………………………………………………………….32 Storage and Maintenance……………………………………………………………….35 Troubleshooting……………………………………………………………………………….36 Warranty & Recalibration……………….……………………………………………….37 Specifications………………………………………………………………………………….38 Note………………………………………………………………………………………….…….40 Appendix…………………………………………………………………………………….…….42... -
Page 3: Medical Disclaimer
9 inches to 17 inches (approx.23 cm to 43 cm) and for home use. HL858CG detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the Risk Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level. -
Page 4: About Blood Pressure
About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. Standards for assessment of high or low blood pressure without regard to age, have been established by the WHO, and classifications adapted from JNC7: WHO: World Health Organization JNC 7: The Seventh Report of the Joint National Committee on Prevention, Detection, Evaluation, and Treatment of High Blood Pressure.
-
Page 6: Measurement Method
Measurement Method HL858CG Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts. -
Page 7: Accuracy
Accuracy HL858CG Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL858CG Automatic Upper Arm Blood Pressure Monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard for Electronic or Automated Sphygmomanometers. -
Page 8: Precautions
Precautions * Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider. * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. - Page 9 Precautions For those who have had mastectomy surgery (especially lymph nodes removed), it’s recommend take a measurement on the unaffected side. When used among medical electronic equipments on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
-
Page 10: Device Overview
Device Overview Part names and product components LCD Display Battery Cover (located on bottom of unit) MEMORY Button BLUETOOTH Button USER-SELECT START / STOP Button Button ARM CUFF WITH TUBE AA (LR6) (1.5V) ALKALINE BATTERY X 4... - Page 11 Device Overview TRIPLE-CHECK REST ASSURE (MULTI-READ) MODE SWITCH FUNCTION SWITCH Back view DC JACK 5.99V 2A AC Adapter SET button AM/PM button DATE/TIME button Right side view *Caution ！ Substitution of a component different from that supplied might result in measurement error.
-
Page 12: Unit Display
Device Overview Unit display Irregular Heartbeat Detector Error Symbol Low Battery Symbol Risk Category Indicator Rest Assure Mode Symbol Bluetooth Symbol Triple-Check (Multi-Read) Function Symbol Systolic Rate Display average of last 3 readings AM/PM Average Symbol User Symbol Date: MM/DD/YY Time: hour/minute with PM icon Heart Rate... -
Page 13: Symbol Definitions
Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is extremely low or the polarity reverses. We suggest you replace all batteries with new ones, and make Low Battery Symbol sure the +/- polarities are properly positioned. Error Symbol: Error display. -
Page 14: Features
Features Risk Category Indicator This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into four stages (Normal, Pre-hypertension, Stage 1 Hypertension to Stage 2 Hypertension) based on the blood pressure standards established by the U.S. Department of Health and Human Services and the National Institutes of Health. - Page 15 Features For adults 18 and older who are not on medicine for high blood pressure, are not having a short-term serious illness, and do not have other conditions, such as diabetes and kidney disease. To determine category of risk when systolic and diastolic readings fall into two areas, use the higher of the two numbers for classification.
- Page 16 JNC7 report to have a greater accuracy. HL858CG provides users a helpful countdown function (REST ASSURE on/off switch) for 5 minutes before the measurement that helps users to get accurate results. To turn this feature OFF, slide the switch on the back to the OFF position.
-
Page 17: Irregular Heartbeat Detector
Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking... - Page 18 Features Bluetooth Data Transmission HL858CG features a built-in “Bluetooth Data Transmission” function, which enables the device automatically transmit measuring results to paired Bluetooth-enabled device after measurement. When connection established, BPM would transmit memory data such as Measure Date, Systolic, Diastolic and Pulse to the Bluetooth enabled device.
- Page 19 Features Application Software for Bluetooth To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install ® “DailyChek ” application software from Google Play on the Bluetooth-enabled device which is compatible with Android 4.3 or iOS 7.0 or above.
-
Page 20: Installing Batteries
Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either. -
Page 21: Using The Ac Adapter
Using the AC Adapter This monitor is designed for operation with batteries or an AC adapter. Please use only a compatible AC adapter with required voltage and current as indicated in this manual. Note: No batteries are needed when operating with an AC adapter. ... -
Page 22: Applying The Cuff
Applying the Cuff Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on the inside of your left arm to determine where your strongest pulse is. Slide the end of arm cuff furthest from the tube through the metal ring to a loop. -
Page 23: Measurement Procedure
Measurement Procedure Switch on the Monitor A. Put in 4 AA 1.5V (LR6) alkaline batteries. B. All segments appear on the screen for 3 seconds. C. The monitor will automatically turn to sleeping mode (all LCD segment cleared). Setting Year, Time and Date ... -
Page 24: Taking A Measurement
Measurement Procedure Turning Bluetooth Feature ON/OFF User can press and hold button 3 seconds to turn the Bluetooth feature ON/OFF in Sleeping Mode. Bluetooth feature ON Bluetooth feature OFF Note: The Bluetooth Feature Switch default setting is ON Taking a Measurement Check and select functions of Triple-Check (Multi-Read) Mode and Rest Assure Mode if needed. - Page 25 Measurement Procedure Press button to select the user (see LCD Displays below). C-1. Start a Single Measurement: (with REST ASSURE MODE on) Make sure the Triple-Check (Multi-Read) function switch turned off. If REST ASSURE MODE is on, with the cuff wrapped around your upper arm, press button to start a 5 minutes countdown (“REST”...
- Page 26 Measurement Procedure After the monitor has determine your blood pressure and heart rate, the cuff automatically deflates. Your systolic rate, diastolic rate, heart rate and corresponding Risk Category Indicator and Irregular Heartbeat Detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.
- Page 27 Measurement Procedure After the monitor has determine your blood pressure and heart rate, the cuff automatically deflates. Your systolic rate, diastolic rate, pulse rate and corresponding Risk Category Indicator and Irregular Heartbeat Detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.
- Page 28 Measurement Procedure As the cuff inflates, the monitor automatically determines your ideal inflation level. This monitor detects your blood pressure and pulse rate during inflation. The Heartbeat Symbol ( flashes at every heartbeat. Remain still and do not move until the entire measurement process is completed.
- Page 29 Measurement Procedure 5. After the 2 measurement finished, measuring result will not be showed, and display turned to 1 minute countdown directly (“REST” flash) for the 3 measurement. 6. Time end, starting the 3 measurement (“MEASUREMENT 3” flash and “MEASUREMENT1 & 2” non-flash while measuring) 7.
-
Page 30: Bluetooth Transmission
Bluetooth-enabled Device, HL858CG Bluetooth Symbol will remain steady on the screen. 3. HL858CG can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other Bluetooth-enabled device, please retry Steps 1 ~ 2. Press and hold... - Page 31 Bluetooth Transmission Date/Time Synchronization BPM’s Date/Time Setting synchronized Bluetooth -enabled device (e.g. smart phone) which ® downloaded and installed DailyChek application software. When Bluetooth connection is established, the Bluetooth -enabled device can send commend with the date/time information to BPM and the BPM’s date/time will be updated.
-
Page 32: Memory Function
Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate, Risk Category Indicator and Irregular heartbeat detector (if any) with date and time will be automatically stored. The monitor can store up to 120 memory sets for per user, and automatically replace the oldest data with new one. - Page 33 Memory Function Recalling Data in Average Memory Mode Select User first. Press key to enter Memory Mode, and LCD displays an average of the last 3 memories. (If a Triple-Check (Multi-Read) result included, the average of it will be included, but its individual measurements will be not.
-
Page 34: Erasing Data
Memory Function Recalling Data in Average Memory Mode Select User first. Press AM/PM button to enter Memory Mode. LCD displays average of latest 3 AM measurements. Press AM/PM button again, LCD displays average of latest 3 PM measurements. Average of Last 3 Average of Last 3 AM Measurement PM Measurement... -
Page 35: Storage And Maintenance
Storage and Maintenance General Use Do not in any way twist the cuff. Do not press button if the cuff is not wrapped around your upper arm. Do not drop the product and avoid any strong impacts. Maintenance ... -
Page 36: Troubleshooting
& then measure again. Measuring Error Symbol mmHg. & Error determining measurement data. Measure again. Measuring Error Symbol Please refer to HL858CG cannot connect to Page 30 “Bluetooth & Bluetooth-enabled device over Transmission” to retry Fail Connection seconds. Error Symbol again. -
Page 37: Warranty & Recalibration
Warranty & Recalibration Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply;... -
Page 38: Specifications
Specifications Model Number HL858CG Measurement Oscillometric Method Rated Range of Cuff 0~300 mmHg Pressure Rated Range of 40~280 mmHg Determination Measurement 40~199 beats/minute Range of Heart Rate Pressure: ±3 mmHg Accuracy Pulse: ±5% Max. Inflation Automatic Inflation (Air Pump) Deflation... - Page 39 Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 0dBm Data Throughput 0.2Mbps Expected Delay (Latency The latency time is less than 0.3ms from Range) in Wireless (RF) sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) technology increases Integrity...
-
Page 40: Note
Note Follow instructions for use. BF Classification: - Internally powered equipment - BF type applied part - IP22-Degrees of protection provided by enclosures - Not suitable for use in presence of flammable anesthetic mixture with air or with Oxygen or nitrous oxide - Continuous operation with short-time loading To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near... - Page 41 ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL858CG essential performance per IEC 80601-2-30 additional essential HL858CG essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from...
-
Page 42: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation. - Page 43 Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).
-
Page 44: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
