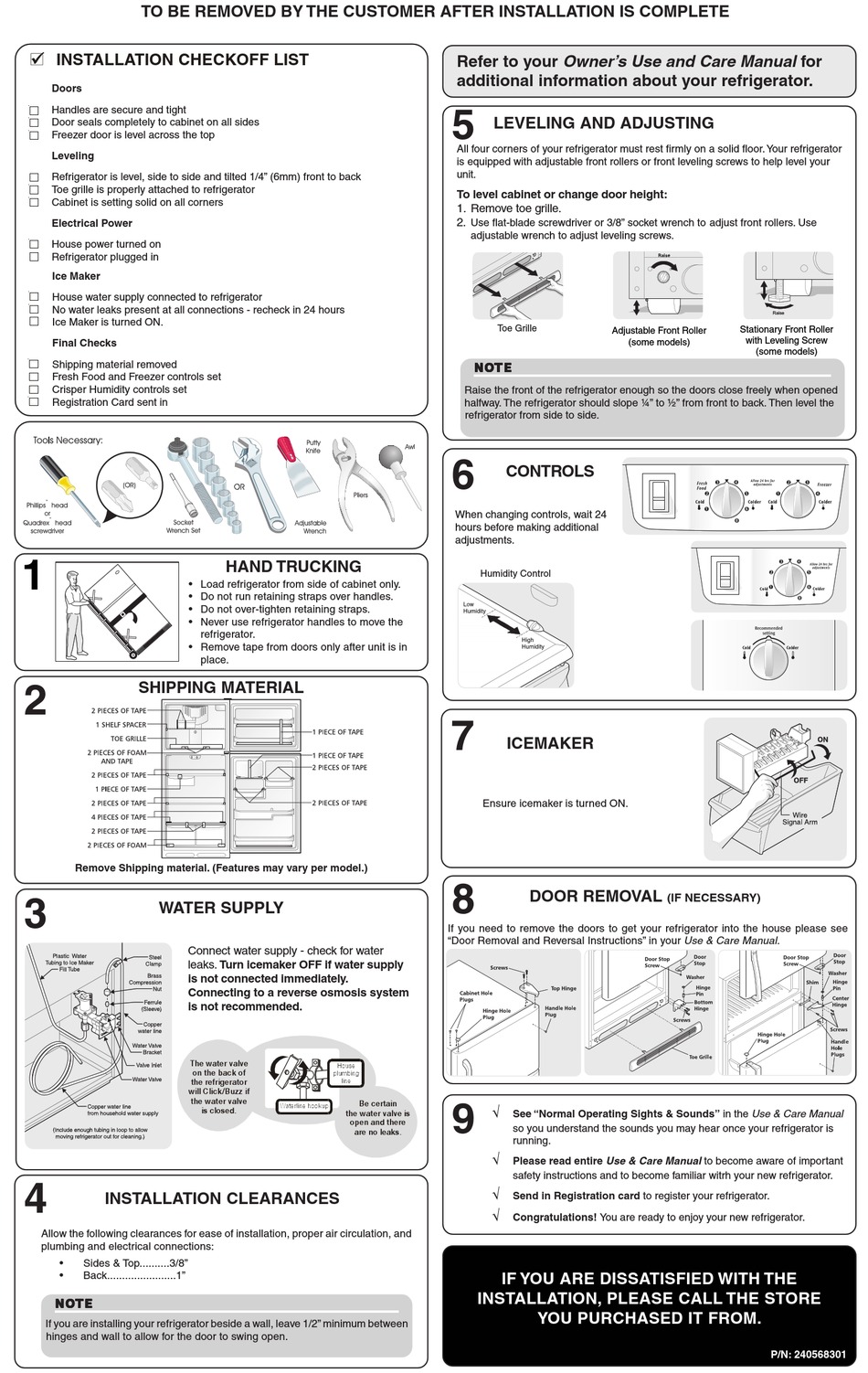

Frigidaire FRTB7B4EMB1 Installation Manual

TO BE REMOVED BY THE CUSTOMER AFTER INSTALLATION IS COMPLETE
INSTALLATION CHECKOFF LIST
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer door is level across the top
Leveling
Refrigerator is level, side to side and tilted 1/4" (6mm) front to back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to refrigerator
No water leaks present at all connections - recheck in 24 hours
Ice Maker is turned ON.
Final Checks
Shipping material removed
Fresh Food and Freezer controls set
Crisper Humidity controls set
Registration Card sent in
1
SHIPPING MATERIAL
2
Remove Shipping material. (Features may vary per model.)
3

WATER SUPPLY

4

INSTALLATION CLEARANCES

Allow the following clearances for ease of installation, proper air circulation, and
plumbing and electrical connections:
• Sides & Top..........3/8"
• Back.......................1"
NO NOTE NO NO NO TE TE TE TE
If you are installing your refrigerator beside a wall, leave 1/2" minimum between
hinges and wall to allow for the door to swing open.
HAND TRUCKING
• Load refrigerator from side of cabinet only.
• Do not run retaining straps over handles.
• Do not over-tighten retaining straps.
• Never use refrigerator handles to move the
refrigerator.
• Remove tape from doors only after unit is in
place.
Connect water supply - check for water
leaks. Turn icemaker OFF if water supply
is not connected immediately.
Connecting to a reverse osmosis system
is not recommended.
qÜÉ=ï~íÉê=î~äîÉ
eçìëÉ
çå=íÜÉ=Ä~Åâ=çÑ
éäìãÄáåÖ
íÜÉ=êÉÑêáÖÉê~íçê äáåÉ
ïáää=`äáÅâL_ìòò=áÑ
íÜÉ=ï~íÉê=î~äîÉ
t~íÉêäáåÉ=Üççâìé
áë=ÅäçëÉÇK
íÜÉ=ï~íÉê=î~äîÉ=áë
çéÉå=~åÇ=íÜÉêÉ
WATER SUPPLY
Refer to your Owner's Use and Care Manual for
additional information about your refrigerator.
5
LEVELING AND ADJUSTING
All four corners of your refrigerator must rest firmly on a solid floor. Your refrigerator
is equipped with adjustable front rollers or front leveling screws to help level your
unit.
To level cabinet or change door height:
1. Remove toe grille.
2.
Use flat-blade screwdriver or 3/8" socket wrench to adjust front rollers. Use
adjustable wrench to adjust leveling screws.
Toe Grille
NO NOTE NO NO NO TE TE TE TE
Raise the front of the refrigerator enough so the doors close freely when opened
halfway. The refrigerator should slope ¼" to ½" from front to back. Then level the
refrigerator from side to side.
6
CONTROLS
When changing controls, wait 24
hours before making additional
adjustments.
Humidity Control
7
ICEMAKER
Ensure icemaker is turned ON.
8
If you need to remove the doors to get your refrigerator into the house please see
"Door Removal and Reversal Instructions" in your Use & Care Manual.
_É=ÅÉêí~áå
9
√
See "Normal Operating Sights & Sounds" in the Use & Care Manual
so you understand the sounds you may hear once your refrigerator is
~êÉ=åç=äÉ~âëK
running.
√
Please read entire Use & Care Manual to become aware of important
safety instructions and to become familiar witrh your new refrigerator.
√
Send in Registration card to register your refrigerator.
√
Congratulations! You are ready to enjoy your new refrigerator.
IF YOU ARE DISSATISFIED WITH THE
INSTALLATION, PLEASE CALL THE STORE
Adjustable Front Roller
(some models)
DOOR REMOVAL
(IF NECESSARY)
YOU PURCHASED IT FROM.
Raise
Stationary Front Roller
with Leveling Screw
(some models)
P/N: 240568301
