Americaloc ST4340 Quick Start Manual

Welcome to AMERICALOC
IMPORTANT: Your complete satisfaction is our rst priority! If you have a problem or need assistance
please contact us at support@americaloc.com. Rest assured we will nd a solution for you. Our friendly,
knowledgeable customer service representatives are standing by to explain our services and to assist
you in getting the most from your GPS tracking service.
If you plan to use the unit outside of the U.S. please contact Americaloc support so we can con gure
your unit or provide a di erent SIM card if needed.
If you do not wire the ignition cable please contact support so we can con gure your unit to detect
ignition by motion.
Before using our products or installing a device, carefully read our legal terms which you can nd at
https://us.americaloc.com/legal_info.html
Activate your account and device AMERICALOC ST4340
Go to www.americaloc.com, select
1
United States and click the
Activate Now button.
Go to www.americaloc.com and
log in with the username and
password established in the
previous step.
5
Turn OFF and then ON the device after initial service payment. Your device already comes
with a SIM card installed.

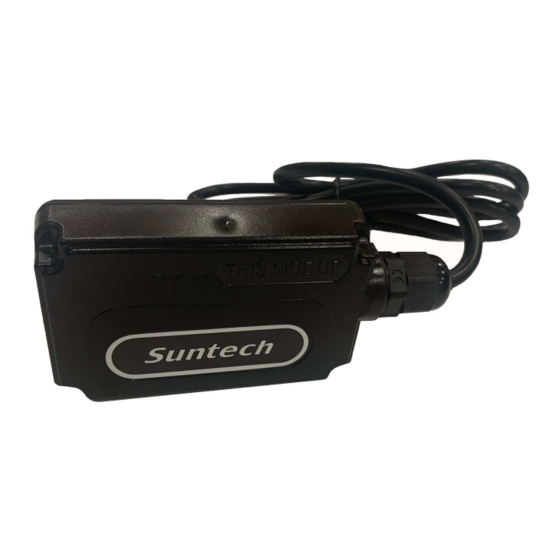

Appearance and LED behavior
Fill in the required information. The IMEI
2
code can be found below the bar code
that is printed on the back of your device.
Your account will now be ready to use.
Purchase one of our service plans by
4
clicking on the Click to pay service
A window will open to provide you with
payment instructions.
Please do not remove the SIM card.
LED
CEL
(blue)
GPS
(red)
Installation Diagram ST4340
Recommendation: Professional installation is recommended. Stereo and car alarm installers
usually know how to install these devices.
button.
-
Ignition Positions
1 ) O st
2 ) Accesories
nd
3 ) Run (Use this one)
rd
4 ) Start th
Note: Cables that are not used in this installation must be individually cut and covered with black/electrical
tape to avoid short circuit.
The blue wire is used for ignition detection. It is strongly recommended to connect this wire to ignition
key at "RUN" position as shown above.
An alternative to connecting to the ignition switch is to nd a non-permanent power source (like the
power source for FM radio) that is only available when the vehicle is running. Ignition signal can be
con gured to start transmitting information to the backend server when ignition is on and to enter
power saving mode when ignition is o .
Blink Count
Device Status
(Fast continuous ashing)
Connected
Server Communication Error
LTE-M1 Communication Error
No network
SIM PIN Locked
Can not attach to Network
No SIM
Connected
GPS chip is searching GPS info
GPS Chipset Error or
GPS Antenna Error
Best place: Under front dashboard
8 V-32V Device Vin
GROUND
IGNITION
th 1. Vin, Red
4
rd
3
2. GND, Black
nd
2
3. IGN, Blue
st
1
1
2
3
4
5
6
7
1
2
4
PINOUT
