BRK electronic 7030BSL Quick Start Manual

COMBINATION
ALARM
& LED STROBE
P H O T O E L E C T R I C
7030BSL
Model
1038870
CAT.
AC POWERED WITH 10 YEAR
SEALED BATTERY BACKUP
INTEGRATED COMBINATION
ALARM & STROBE LIGHT
Requires only one electrical box for 3 vital functions.
Saves installation time and costs. One device includes
strobe light and combination smoke/CO alarm.
SMART STROBE
Separate flash patterns to distinguish between
smoke and carbon monoxide.
177 CANDELA
SYNCHRONIZED LED STROBE
Powerful 177 candela LED strobe light provides
effective visual warning intended to waken hearing
impaired residents. When multiple units installed,
strobe is sync capable.
1Hz FLASH RATE
60 flashes per minute rate.
10 YEAR SEALED BATTERY
Lithium long life battery to supply power to the alarm
in the event of power failure for the 10 year life of
the alarm. Sealed in the alarm housing to prevent
tampering or removal.
120V AC, 60Hz Wire-in
with 10 Year Sealed Lithium Battery Backup
Description:

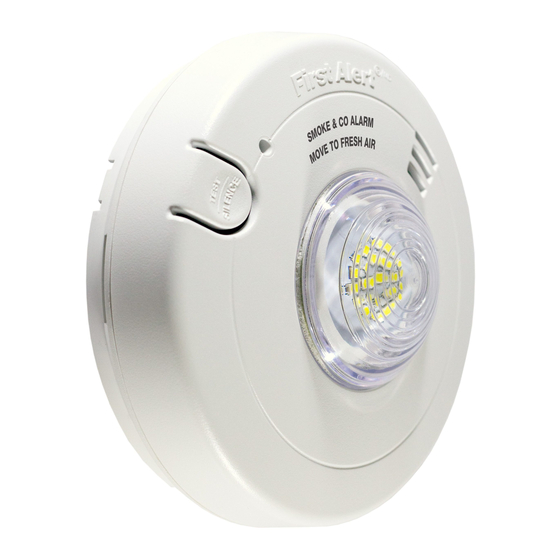

The BRK Brands, Inc. Model Number 7030BSL (CAT 1038870) is a wire-in, 120V AC 60Hz
single and/or multiple station photoelectric smoke and carbon monoxide combination
alarm with integrated 177 candela LED strobe light specifically designed for residential
and institutional applications including sleeping rooms of hospitals, hotels, motels, public
housing, dormitories and other multifamily dwellings. Model 7030BSL conforms to UL STD
217, UL STD 2034 & UL STD 1638. The alarms are inter-connectable with up to 18 devices,
of which 12 can be smoke alarms. The BRK 7030BSL alarm features a photoelectric smoke
sensing chamber, an electrochemical CO sensor, an integrated 177 LED candela strobe
light, an 85dB horn and sealed lithium battery capable of providing backup power for smoke
and CO alarm functions over 10 year alarm life without replacement. The Strobe Light is
designed to provide deaf & hard of hearing individuals with a visual warning of smoke or
carbon monoxide dangers. The Smart Strobe has separate flash patterns for smoke/heat
and carbon monoxide dangers. This helps a hearing impaired person better distinguish the
danger present. The 177 candela LED strobe flashes at a rate of an average of 60 times a
minute. The LED flash is also sync capable so when multiple LED units are installed, strobes
can flash in unison.
This alarm features two latching features and two silence features. The Alarm Latch easily
identifies the initiating alarm with blinking RED led pattern - even after the alarm condition
has subsided. Ideal when multiple alarms are installed throughout a residence or institution.
The End of Life / Low Battery Latch visually identifies which unit is in a low battery or end
of life condition. The convenient silence features will temporarily silence an unwanted alarm
for several minutes or eliminate low battery/end of life chirps for up to eight hours. Other
Contractor preferred features include a dust cover, easy twist-lock mounting bracket with
backup battery activation, and "Quick Connect" wiring harness.
