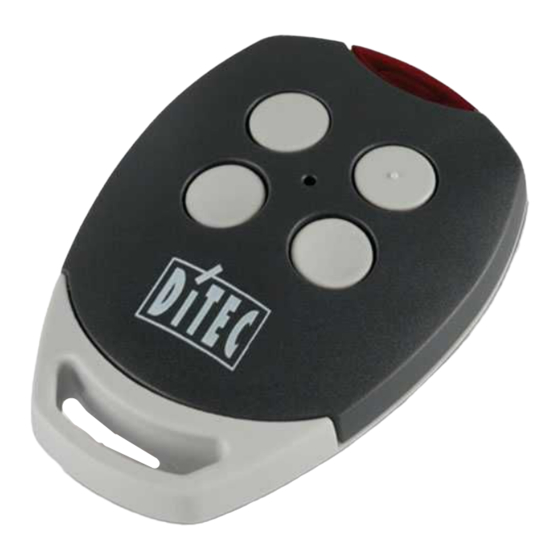

DITEC Gol4C Programming Manual

Programming of your new remote control:

There are several methods for programming your new remote control.

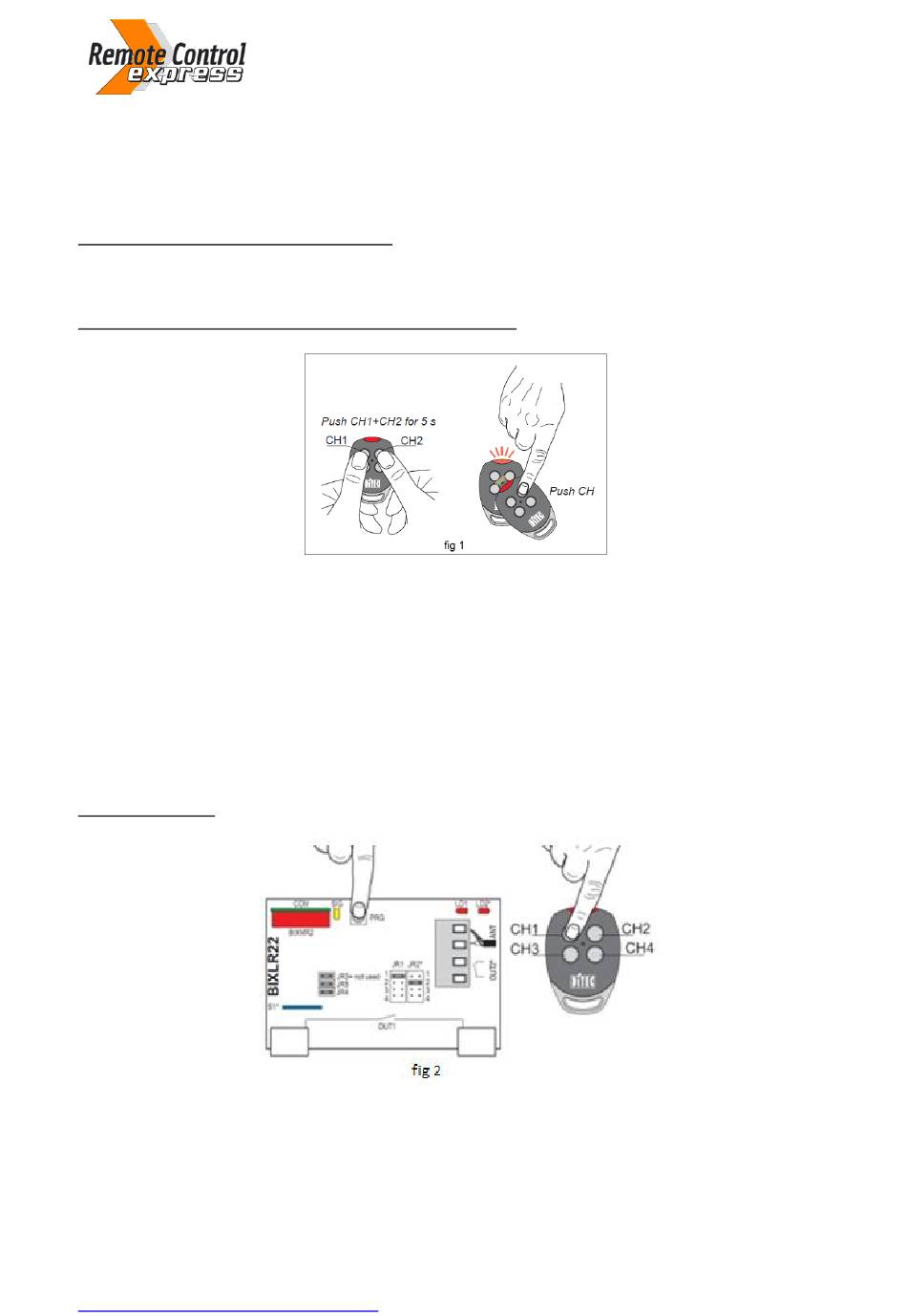

From a remote control that has already been programmed:

1. Press the top two buttons on your new remote control simultaneously for 5 seconds. The
LED light on the remote control illuminates.
2. In the next ten seconds, take a DITEC GOL4C or BIXLS2 (older version) that has already been
programmed (and that is already in use) and place the head of the remote control exactly in
the middle of the four buttons on the new remote control (figure 1). Press a button on the
already-programmed remote control and keep it pressed down.
3. The LED light on the new remote control flashes three times.
4. Your new remote control is programmed.

From the receiver:

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board, press the programming button (PRG). The LED light on the
receiver illuminates. Let the button go.
3. Press a button on your new remote control. Keep it pressed down. TheLED light of the
receiver blinks and then remains lit fixedly. Let the button go.
4. Your new remote control is programmed.
