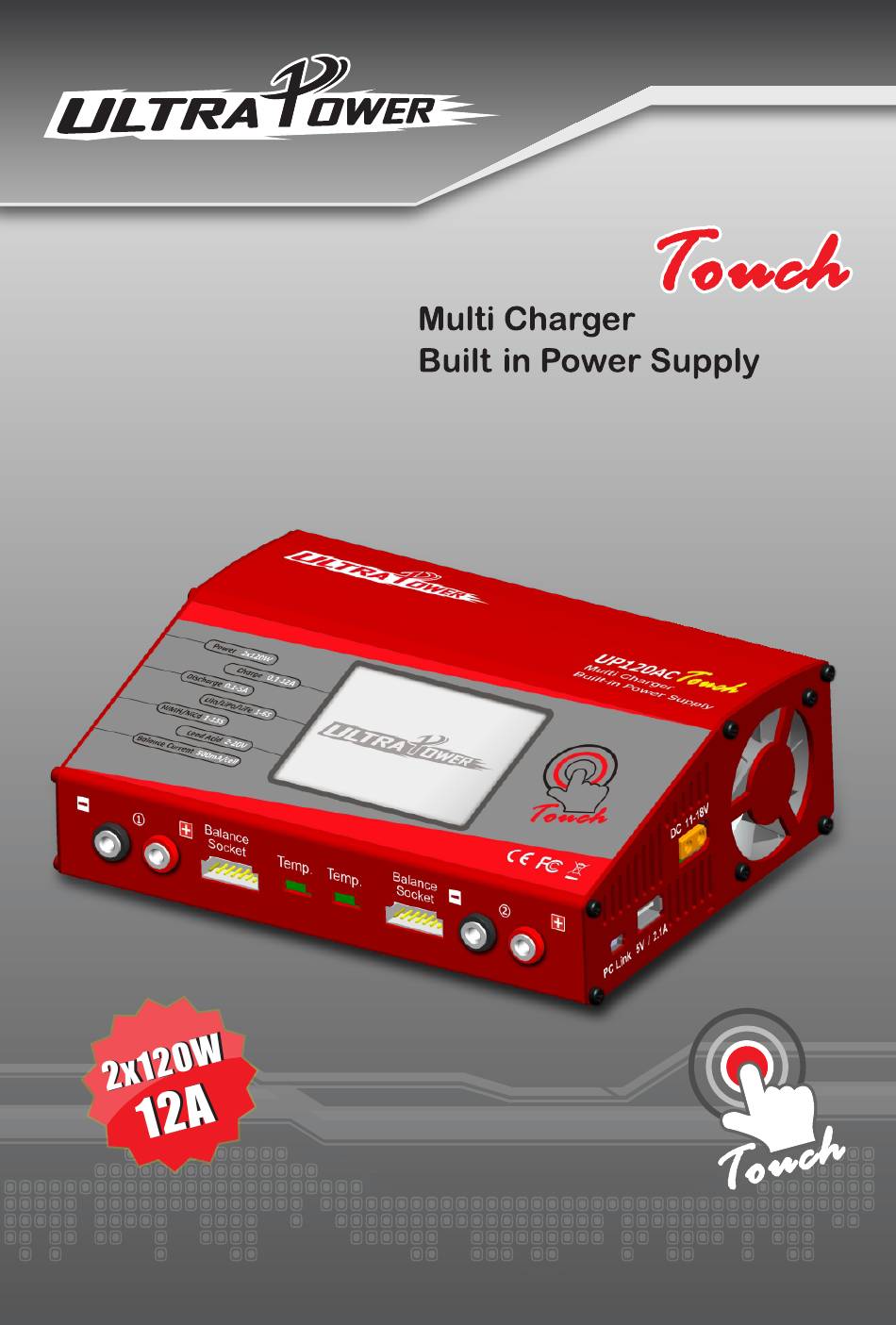

- Page 1 UP120AC INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction....................Special Features..................Warning and Safety Notes................ Lithium Battery Connection Diagram............Operation Diagram - Homepage............. Operation Diagram - Setting, Start, Complete......... Lithium Battery Meter................System Set up..................Error Message..................Warranty and Service................ -
Page 4: Introduction

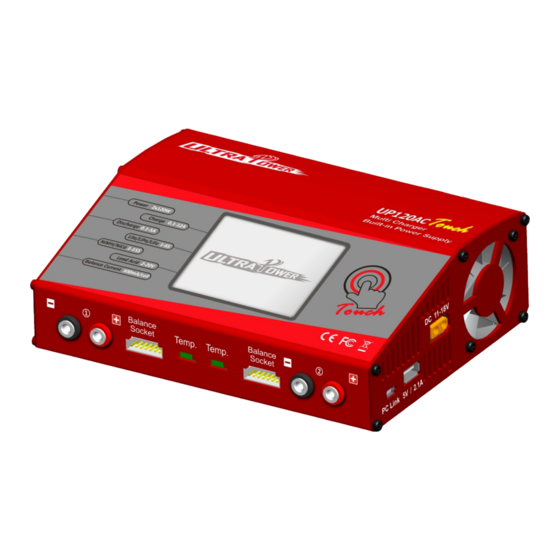

INTRODUCTION Thank you for purchasing UP120AC Touch charger by Ultra Power. This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this entire instruction manual completely and attentively before using this product, as it covers a wide range of information on operation and safety. - Page 5 INTRODUCTION Color LCD Touch Screen Temp. Sensor Battery Sockets Battery Sockets Balance Socket AC Input Voltage Selection Switch Cooling fan with Temp. Sensor Control AC Input PC Link 110 or 220V AC PC Link DC Output DC Input 11-18V 5V, 2.1A...
-
Page 6: Special Features
SPECIAL FEATURES Optimized Operating Software UP120AC Touch features the AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion. It can disconnect the circuit automatically and alarm once detecting any malfunction. - Page 7 SPECIAL FEATURES Data Store/Load The charger can store up to 6 different charge/discharge proles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting. Terminal Voltage Control(TVC) The charger allows user to change the end voltage.
-
Page 8: Warning And Safety Notes
WARNING AND SAFTEY NOTE These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a re. Also read the chapter before you begin. Never leave the charger unsupervised when it is connected to its power supply. - Page 9 WARNING AND SAFTEY NOTE Batteries installed in a device or which are electrically linked to other components Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process Please bear in mind the following points before commencing charging: Did you select the appropriate program suitable for the type of battery you are charging?
- Page 10 WARNING AND SAFTEY NOTE Charging During charge process, a specic quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer.
- Page 11 WARNING AND SAFTEY NOTE Discharging The main purpose of discharging is to clean the residual capacity of the battery, or to reduce the battery' voltage to a dened level. The same attention should be paid to the discharging process as the charging process.
-
Page 12: Lithium Battery Connection Diagram
LITHIUM BATTERY CONNECTION DIAGRAM UP120AC Touch charger come with the built in switch mode power supplies. You can connect the AC power cord directly to the main AC socket (110V or 220V AC), or you can connect an external power supply (11-18V) or 12V car battery to the DC input socket. - Page 13 LITHIUM BATTERY CONNECTION DIAGRAM 1. Connect charge leads to the charger, making sure polarity of all leads is correct. 2. Turn the charger on and check your settings that they match the battery pack you intend to charge. 3. Connect the main leads of the battery to the main leads of the charger.
-
Page 14: Operation Diagram - Homepage
OPERATION DIAGRAM - HOMEPAGE BATTERY TYPE BATTERY TYPE LiPo LiFe LiIon LiPo LiFe LiIon ② ① NiMH NiCd NiMH NiCd SYSTEM PROGRAM BATT. METER SYSTEM PROGRAM BATT. METER ③ ④ ⑤ ① Channel selection button - Select the channel which you want to use. ②... -
Page 15: Operation Diagram - Setting, Start, Complete
OPERATION DIAGRAM - SETTING, START, COMPLETE Here are the detailed procedures to make the charger work. All the screens and operations will take Channel 1 and LiPo battery as example. 1. Battery type There are 3 Li-xx battery types in BATTERY TYPE battery type area. - Page 16 OPERATION DIAGRAM - SETTING, START, STOP Charging Program Depends on different battery type, the operation programs are different. Batt Operation Description Type Program This charging mode is for charging LiPo/LiFe/LiIon battery in normal mode. CHARGE This mode is for discharging LiPo/LiFe/LiIon battery. DISCHARGE This program is for charging or discharging lithium battery which will not be STORAGE...
- Page 17 OPERATION DIAGRAM - SETTING, START, STOP LiPo 6S 2.0A / - 2.0A LiPo 6S 2.0A / - 2.0A CELLS CHARGE 4.20V > MODE BALANCE DISCHARGE 3.20V CURRENT 2.0A MORE BACK START BACK NiMH 6S 4.0A/-3.0A Pb 2S 2.0A/-0.5A DELTA PEAK CHARGE 2.40V SENSOR...
- Page 18 OPERATION DIAGRAM - SETTING, START, STOP 3. Charging status monitor When the charger is working, the users LiPo 6S 2.0A / - 2.0A could check the real time status of STATUS BALANCE charging capacity, overall voltage and VLOTAGE 23.86V each cell voltage, charging time, CURRENT 2.0A external and internal temperature...
-
Page 19: Lithium Battery Meter
LITHIUM BATTERY METER The user can check lithium battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage; and can check Nickel and Pb battery's total voltage. Touch “BATT. METER” to enter voltage meter program. BATTERY TYPE BATTERY METER BALANCER: LiPo... -
Page 20: System Set Up
SYSTEM SET UP You can change SYSTEM SETTING, SAFETY OPTION settings when you enter to setting program by touch "SYSTEM". BATTERY TYPE SYSTEM INPUT LOW 11.0V LiPo LiFe LiIon REST TIME 10min NiMH NiCd LCD LIGHT BUZZER SYSTEM PROGRAM BATT. METER SAFETY RESET ABOUT... - Page 21 SYSTEM SET UP SYSTEM SYSTEM\SAFETY SETTING TIME INPUT LOW 11.0V 120min REST TIME 10min CAPS 5000mAh LCD LIGHT BUZZER TEMP. 79 C/174 F SAFETY RESET ABOUT BACK BACK OPTION SYSTEM ITEM SELECTION DESCRIPTION This program sets the maximum charge capacity that will be supplied to the battery during charge.
-
Page 22: Error Message
ERROR MESSAGE ERROR MESSAGE It incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error the screen will display the cause of error and emit an audible sound. ERROR MESSAGE EXPLANATION "... -
Page 23: Warranty And Service
WARRANTY AND SERVICE Thank you for purchasing UP120AC Touch charger by Ultra Power. We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. - Page 24 Manufactured by Ultra Power Technology Limited www.ultrapower.hk E-mail: info@ultrapower.hk...
