Ultra Power UP1200W Instruction Manual

INSTRUCTION MANUAL

INTRODUCTION

Thank you for purchasing the UP1200W Power Supply. We are confident that you will be very pleased
with its performance because our Power Supply is designed and manufactured by skilled professionals
using the highest standard in workmanship. You can be assured of many years of trouble free service.

GENERAL DESCRIPTION

The UP1200W Power Supply is designed to use household AC power source to power equipments that
required DC power.
The UP1200W converts standard household power 100-120V AC or 220-240V AC to 15-24V DC
power and can supply up to 60 amperes of continuous power.
The maximum output current is regulated by the output power of this power supply and does not
exceed 60 Ampere. Maximum Current = 1200W divide by output voltage. ( eg. DC20V output,
maximum current = 1200W / 20V = 60A; DC24V output, maximum current = 1200W / 24V = 50A.)

FEATURES

One main DC power outputs, up to 60 amperes, three output channels with ON/OFF switch.
Output voltage adjustable 15-24V DC
Tow USB ports, 5 volts, 2100mA total for iPad, mobile phone, digital cameras, etc.
Large LCD indicates voltage and current amperes output
Smart cooling fan
Over temperature protection
Over loading protection
Short circuit protection

IMPORTANT SAFETY INSTRUCTIONS

Danger: To reduce the risk of fire or electric shock, carefully follow these instructions.
This manual contains important safety and operating instructions for this power supply. Before you use
the power supply, read all the instructions and cautionary markings in this manual, on the power supply,
and on the product that you will connect to the power supply, to reduce the risk of injury:
Do not use the power supply near water (for example, a bathtub, washbowl, kitchen sink, laundry tub,
wet basement, or swimming pool).
Do not place the power supply on an unstable cart, stand or table. If the power supply falls, it could
injure a person or cause serious damage to the power supply.
Do not overload power outlets or extension cords. An overload can result in fire or electricshock.
Do not disassemble this unit; take it to a qualified service technician when service or repair is
required. Improper reassembly may result in a risk of electric shock or fire.
Do not use an attachment not recommended, this could result in a risk of fire , electric shock, or
injury to persons.
Never push any object into the slot in the power supply. It could touch dangerous voltage points or
short out parts resulting in a fire or electrical shock.
UP1200W POWER SUPPLY
Caution: To reduce the risk of damage:
Do not operate the power supply if it has been dropped or damaged in any way. Take it to a qualified
service technician for repair.
The power supply should be operated only from a standard AC outlet that provides 100-120V AC or
220-240V AC, 50/60 Hz. If you are not sure of the type of power supplied to your home, consult your
local power company.
To protect the power supply during a lightning storm or when it is left unattended and unused for long
periods of time, unplug it from the AC outlet. This will prevent damage to the power supply from
lightning and power surges.
Unplug the power supply from the outlet before attempting any maintenance or cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning and then wipe it dry immediately.
If your power supply does not operate normally, in particular if any unusual sounds or smells come
from it, unplug it immediately and contact a qualified service technician for repair.

CONNECTIONS

Caution: Make all other connections before you connect the power supply to standard AC power
1. Turn the sleeves of the red and black binding output posts counterclockwise to expose the wire
hole.
2. Insert the device's positive wire (usually red) into the red binding post's wire hole, then tighten the
binding post's sleeve to secure the wire in place.
3. Insert the device's negative wire (usually black) into the black binding post's wire hole, then
tightening the binding post's sleeve to secure the wire in place.
4. If you are using the banana plugs connection, insert the plugs into the terminal's jack.
Warnings: To avoid damage to both the power supply and the device:
Follow the correct polarity when connecting the power supply and the device.
Do not let the ends of the positive and negative wires touch each other.

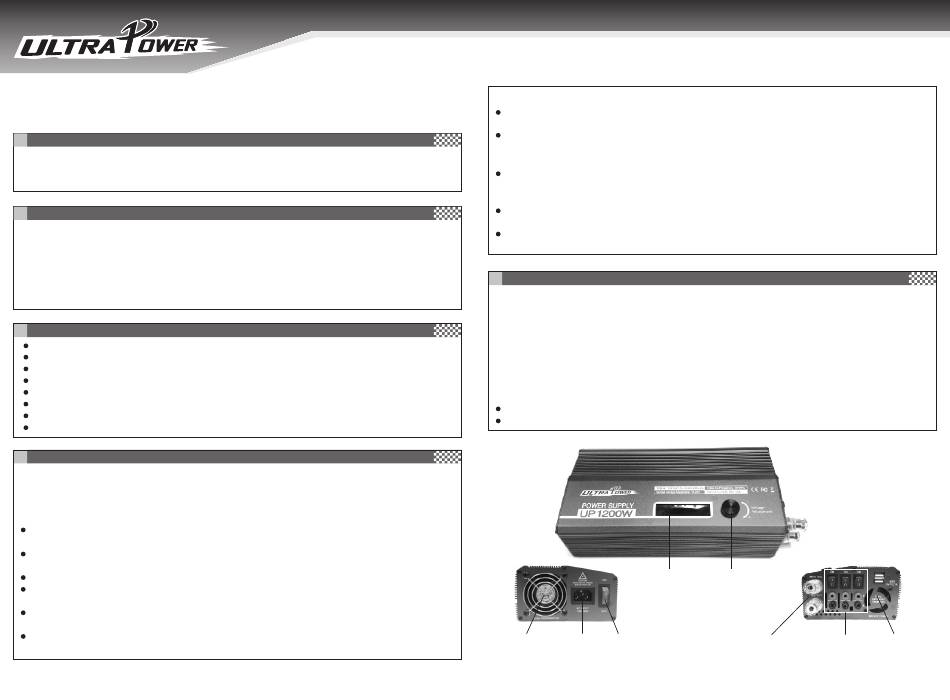

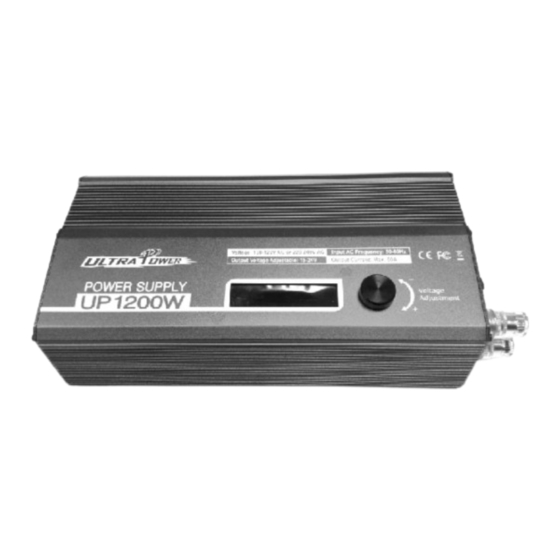

Current &
Voltage
Read Out
Cooling AC Power Power
Fan Input Socket Switch
Voltage Adjustment
Dial (15V-24V)
Main DC Output 3 Channels with
(60A Max) ON/OFF Switch
Cooling
Fan
