Summary of Contents for Ultra Power UP6

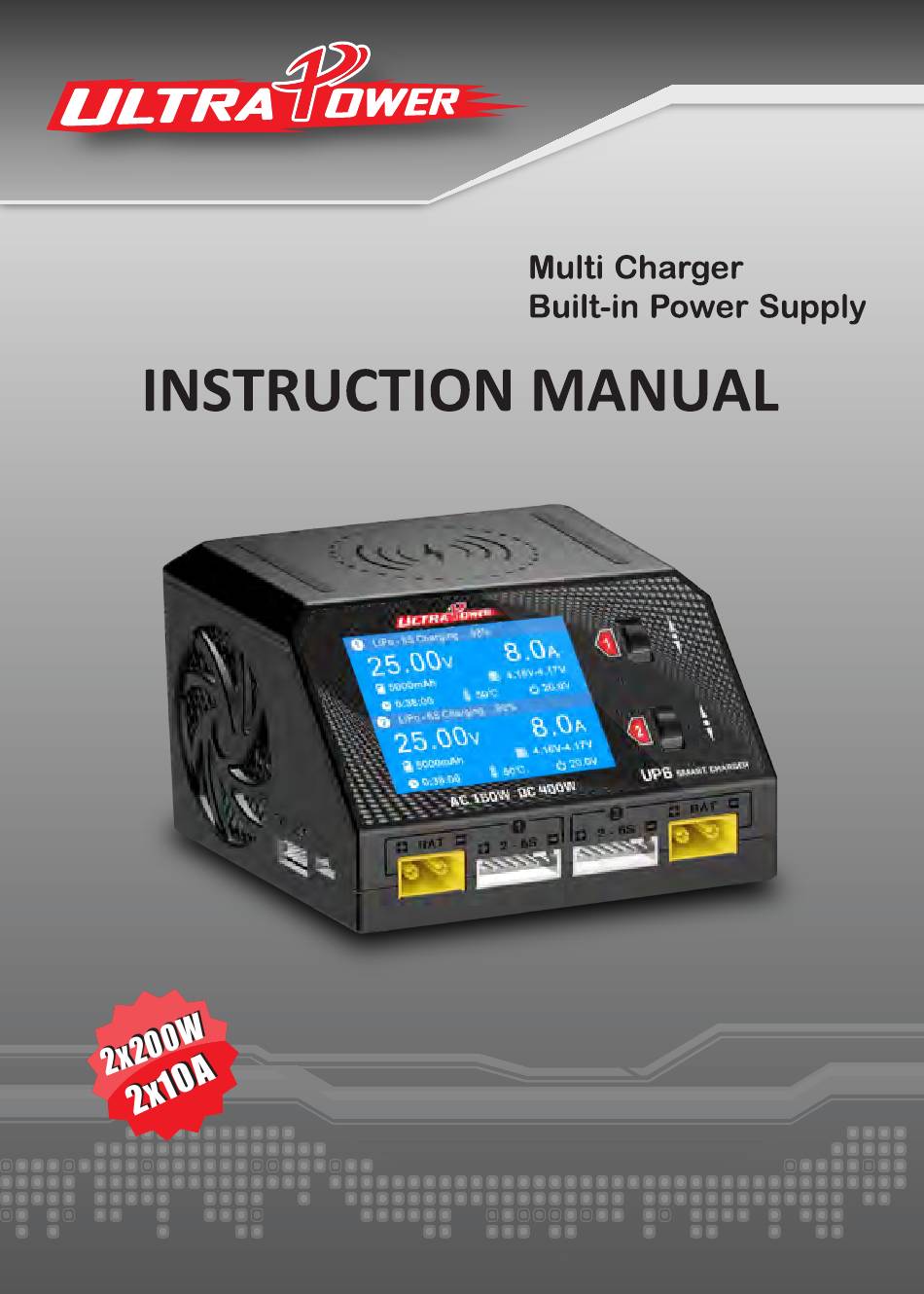

  • Page 1 www.ultrapower.hk...
  • Page 2 INTRODUCTION Thank you for your purchasing of Ultra Power’s UP6 Dual Channel AC /DC Smart Balance Charger.This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this entire instruction manual completely and attentively before using this product, as it covers a wide range of information on operation and safety.

  • Page 3: Table Of Contents

    CONTENTS Warnings and Safety Notes ------------------------------------ Product Parameters and Characteristics ----------------------- Standard Battery Parameters ---------------------------------- Confirming Charge Current ------------------------------------ Task Settings -------------------------------------------------- Working Parameters Display ----------------------------------- System Settings Menu ----------------------------------------- External Discharge Function ----------------------------------- Wireless Charging Function------------------------------------ Warnings and Error Messages---------------------------------- Conformity Declaration ----------------------------------------...

  • Page 4: Warnings And Safety Notes

    WARNINGS AND SAFETY NOTES PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT! The following warnings and safety notes are for your protection, please refer to all aspects of this instruction manual to ensure proper operation. FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS MAY CAUSE FIRE, PROPERTY DAMAGE AND/OR PERSONAL INJURY! WARNING...
  • Page 5 Avoid leaving your charger or battery in direct sunlight or exposing them to intense vibration or shock. ALWAYS make certain to observe proper input and output polarity. The UP6 operates safely with input voltage between AC 100-240V DC 9-32V. ALWAYS place the charger on a heat-resistant, non-flammable surface when in use.

  • Page 6: Product Parameters And Characteristics

    PRODUCT PARAMETERS AND CHARACTERISTICS Wireless charging 2.4 inch screen Roller Wheel Ext.Discharge Port Battery Battery Sockets Sockets Balance Balance Temp.Sensor Socket Socket Non-slip mat AC Input 100-240V PC Link Temp.Sensor DC Input 9-32V Channel 1 Roller Wheel Short press: Enter Channel 1 task settings/confirm current settings Long press: Enter System setting/terminate current task Scroll up and down: Select the corresponding menu Channel 2 Roller Wheel...
  • Page 7 PRODUCT PARAMETERS AND CHARACTERISTICS Specification： Input Voltage: AC 100-240V, DC 9.0-32.0V Output Voltage: 0.1-30V Charge Current: 0.1-10.0A x 2 Discharge Current: CH1: 0.1-2.0A/0.1-15.0A(External discharge mode) CH2: 0.1-2.0A Charge Power: DC Input: 2x200W AC Input: Max.160W (CH1+CH2=160W) Support power distribution Discharge Power: CH1: 6W/200W(External discharge mode) CH2: 6W Support Battery Types: LiPo/LiHV/LiFe/Lilon(1-6S) NiMH/NiCd(1-16S)

  • Page 8: Standard Battery Parameters

    STANDARD BATTERY PARAMETERS NiCd/NiMH LiFe LiIon LiPo LiHV Rated Voltage 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V 1.40V 2.40V 3.60V 4.10V 4.20V 4.35V Full Charge Voltage Storage Voltage Not supported Not supported 3.30V 3.70V 3.80V 3.90V Discharge Voltage 0.5-1.10V 1.80-2.00V 2.60-2.90V 2.90-3.20V 3.00-3.30V 3.10-3.40V...

  • Page 9: Confirming Charge Current

    CONFIRMING CHARGE CURRENT It is critically important to understand the maximum charging current for the battery pack to be charged. Excessive charge current can significantly reduce the life of a battery, or in severe cases a fire or explosion. The charge and discharge current of a lithium battery is determined by its “C”...

  • Page 10: Task Settings

    Back Return to previous screen or function The default mode of the UP6 is series charging, therefore you must connect the output wires to the battery pack that you wish to charge. For lithium packs, it is highly recommended to ALWAYS connect the balance leads and utilize balance charging.
  • Page 11 TASK SETTINGS Restoring an excessively discharged lithium battery pack If the UP6 detects internal cell voltages that are too low to safely begin the charging process, it will automatically default to a 0.5A charge rate until the voltage has risen to a level that allows it to safely accept a fast charge rate.

  • Page 12: Working Parameters Display

    WORKING PARAMETERS DISPLAY Battery Cell Count Working Mode Battery Type Battery Percentage LiPo - 6S Charging..98% Charge/Discharge 25.00 Battery Voltage Current Cell Voltage Range Battery Capacity 5000mAh 4.16V-4.17V 50 C 0:38:00 20.8V LiPo - 6S Charging..98% 25.00 5000mAh 4.16V-4.17V 50 C Input voltage Charge/Discharge 0:38:00...
  • Page 13 WORKING PARAMETERS DISPLAY 2.4'' IPS Display, clearly show two channels working status in real- me. LiPo - 6S Charging..98% Two independent output channels, 25.00 independent setting and working, do not affect each other. When you 5000mAh 4.16V-4.17V charge on channel 1, you can charge or discharge on channel 2, 50 C 0:38:00...

  • Page 14: System Settings Menu

    Max Input Power: When the input power can not reach the charger' s maximum working power requirement(450W), to ensure stable and safe operation of the UP6, this value should be adjusted according to the input power source used for the charger. For example, when using a 20V/10A DC power supply, this value should be set to 200W (P=U X I).The recommended DC power supply is 500W/20V or higher.
  • Page 15 SYSTEM SETTINGS MENU Min Input Voltage: When the user take a battery as a input power source, this setting can protect the battery not over-discharged. When the charger detect the input voltage lower than the setting value, then the charger will stop the current task and remind the user with showing” DC IN TOO LOW”.

  • Page 16: External Discharge Function

    EXTERNAL DISCHARGE FUNCTION UP6 increases the function of external discharge to meet the users' demand for high-power discharge of batteries, UP6 connect a external discharger UP-D200 can achieve 200W discharge power, greatly improving the battery discharge speed and saving time.

  • Page 17: Wireless Charging Function

    WIRELESS CHARGING FUNCTION Wireless charging power 10W Non-slip Mat Support to charge iPhone X, iPhone XS, iPhone 11, iPhone 11 Pro, Samsung Galaxy S10,Galaxy Note10+, Huawei Mate 30, Huawei Mate 30 Pro, Xiaomi 9, Xiaomi 9 Pro, etc..

  • Page 18: Warnings And Error Messages

    WARNINGS AND ERROR MESSAGES Error Message for Abnormal Battery Connection Unplug and re-connect all plugs to ensure proper connection and polarity. Check to make sure that all connectors are free of dirt, grease, or oxidation. Error Message for Unstable Input Voltage Make certain that the battery socket is free from dirt or oxidation.

  • Page 19: Conformity Declaration

    CONFORMITY DECLARATION The UP6 satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2017. For EC directive: The product has been tested to meet the following technical standards: Testing standards Result EN 55014-1: 2006+A1:2009+A2:2011 EN 55014-2: 2015 Information on the disposal for Waste Electrical &...
