Channel Vision 6405 Instructions

Specifications

Signal System: NTSC
Total Pixels 1020 (H) x 508 (V) 520K
Effective Pixels 976 (H) x 494 (V) 480K
Image Sensor 1/3" 960H Super HD CCD II (Sony)
Lens Pinhole 3.7mm P1
Scanning System 2:1 Interlace
Sync System Internal
Scanning Frequency 59.95Hz (VD)
Resolution 700 TV Lines
S/N Ratio More than 50dB (AGC Off)
Video Output 1.0 Vpp Composite (75 )
WDR Yes
Min. Illumination 0.0002Lux @(sense-up 512x)
OSD Exposure, (AGC, SENSUP) Backlight, (D-WDR, BLC, HS-
BLC) White Balance, ( ATW, AWB, AWC) Day/Night, (Auto,
Manual) Smart 3DNR, F-DNR, Function,( Motion, privacy, D-
Effect, Image Adjustment) Language (English, Korean,
Japanese, Chinese, Russian, French,Spanish, Italian,
Portuguese, Dutch, German, Polish, Turkish, Hebrew, Arabic)
Shutter Speed 1/60 - 1/100,000 sec
Power Consumption 12vDC 150mA (Power Supply model 5015PS, not included)
Operating Temperature 14° - 122° Fahrenheit

One Year Limited Warranty

Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during
normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of
original purchase. This is a no hassle warranty with no mail in warranty card needed. This warranty does
not cover damages in shipment, failures caused by other products not supplied by Channel Vision
Technology, or failures due to accident, misuse, abuse, acts of God, or alteration of the equipment. This
warranty is extended only to the original purchaser when purchased through an authorized reseller. A
purchase receipt, invoice, or other proof of original purchase date will be required before warranty repairs
are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state).
If a problem with this product develops during or after the warranty period, please contact Channel Vision
Technology, your dealer or any factory-authorized service center.
Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical
environment applications.
Channel Vision customers using or selling Channel Vision products for use in such applications do so at
their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper
use or sale.
• Intelligent Entertainment • Infrastructure • Security Solutions
234 Fischer Avenue, Costa Mesa, California 92626 USA
(714)424-6500 (800)840-0288 (714)424-6510 fax
email: techsupport@channelvision.com
w w w . c h a n n e l v i s i o n . c o m
*Specifications subject to change without notice.
500-355 rev B
6405

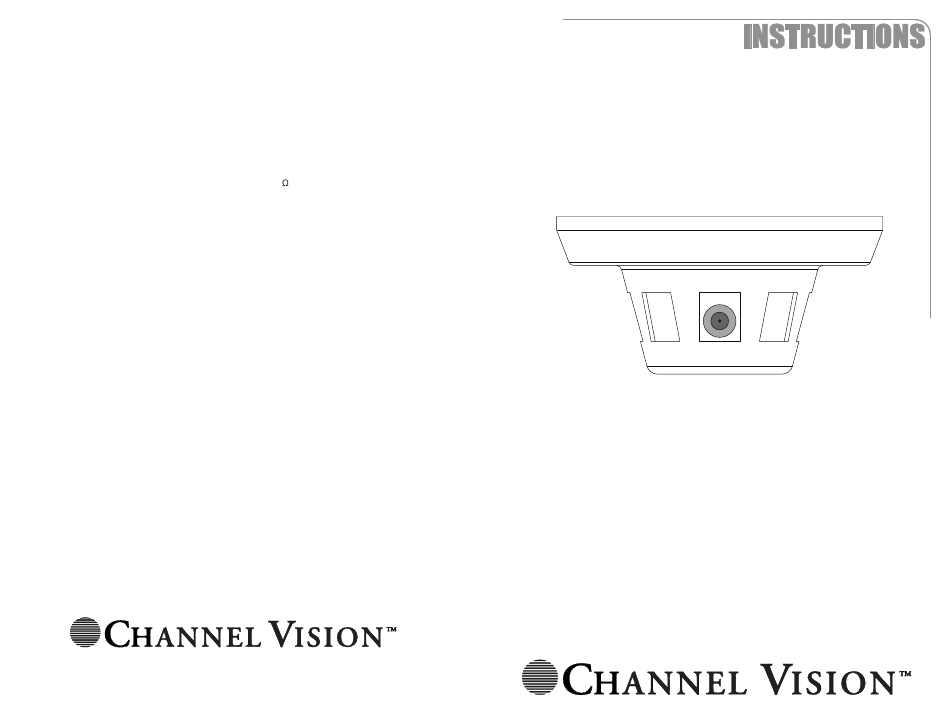

960H Hidden Camera Smoke Detector
