MIXVIBES DVS ULTIMATE Quick Start Manual page 4

2 U-MIX44 Description
C
M
J
CM
MJ

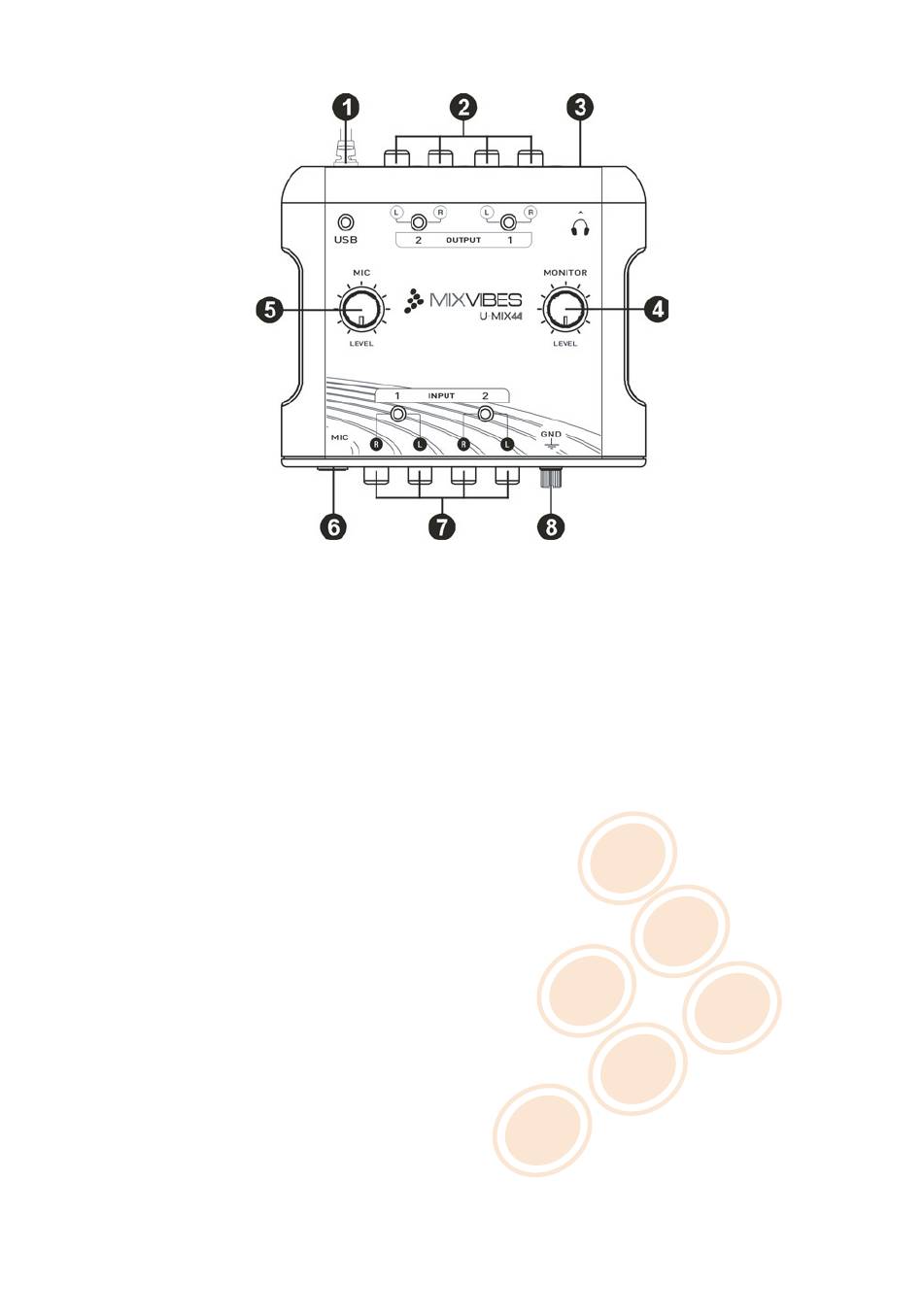

1 USB cable: Connect the USB cable to the computer.
CJ
2 4 RCA output channels: You can use these outputs to connect an external mixer
CMJ
or your sound system (amplifier, powered speakers, or home stereo).
N
3 Headphone output connector: Monitor the outputs 3/4 through the headphone
output. This connector is particularly useful if you use a MIDI controller and the
internal mixer.
4 Control of the headphone output: The headphone output level can be adjusted
with the control knob.
5 Gain control for the microphone input: Control the input level of the microphone.
6 Microphone input connector: Connect your microphone to this balanced 1/4"
connector.
7 4 RCA input channels: You can use these inputs to connect your turntables,
CD/MP3 players, mixer unit, effect player, cassette deck play and radio player
etc.
8 Grounding screw: When you use a turntable, connect the ground lead from your
turntable to the grounding screw to help prevent hum.
