- Page 1 I N F I R A Y O U T D O O R CABIN SERIES T h e r m a l I m a g i n g M o n o c u l a r Outdoor...
-
Page 2: Table Of Contents
This laser is never to be operated if the unit is defective or the cover or seal is damaged. iRayUSA 800 Railhead Road #316 Fort Worth TX 76106 Always operate the CABIN Series with the aperture pointed downrange. 800.769.7125 info@irayusa.com... -
Page 3: Overvie W

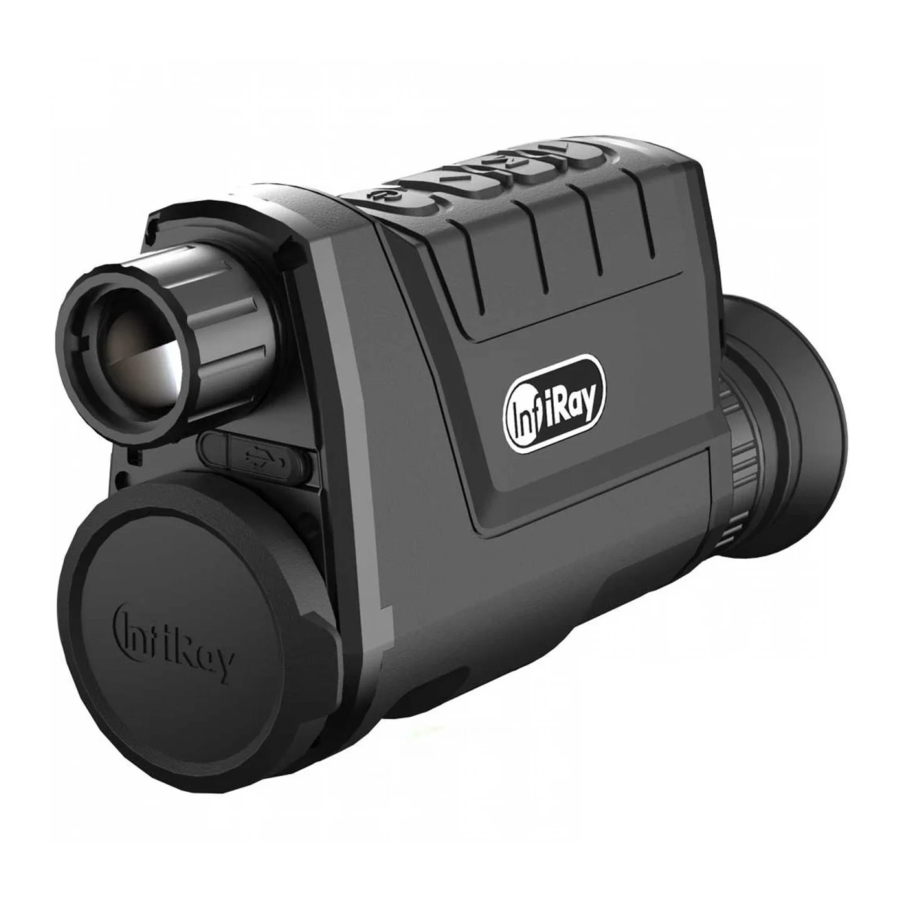

CABIN SERIES CABIN CBL19 CABIN CBL25 The InfiRay Outdoor Cabin Series is a compact and powerful optic that operates easily with one hand. The CABIN is available with multiple SENSOR lens options and its 50Hz 12 μm Micro II sensor featuring InfiRay’s... -
Page 4: Units And C Ont R Ols
5 . UNITS AND C ONT R OLS BUTTON DEVICE STATUS/OPERATION MODE SHORT PRESS LONG PRESS Device is OFF —— Power ON the Device/Standby Home Screen Image Correction/NUC Power OFF the Device/Standby Standby Wake Up the Device —— POWER Exit Menu/ Main Menu/Shortcut Menu ——... -
Page 5: Battery An D Saf Ety
6 . BATTERY A ND SAFET Y After the battery is fully charged, remove the Battery Pack from the Battery Charger. The CABIN is supplied with a quick-change IBP-2 Li-Ion battery pack which enables the device to be used for up to 6+ hours. The Note: The IBC-2 Battery Charger can charge two IBP-2 Battery battery should be fully charged before the first use. -
Page 6: E Xt Ernal Power Supply
7. E XT ERNAL POWER SUPPLY The CABIN will support the use of an external USB power supply (5V). Connect an external power supply to the USB-C port of the CABIN (4) and the device will automatically switch to an external power supply while simultaneously charging the internal battery. -
Page 7: D Ig Ital Zo Om
1 1. P HOTO G RA PH Y A ND VIDE O REC O RDI NG The maximum duration of a video recording file is 10 minutes. The CABIN series is equipped with a built-in 16 GB of memory When the duration is more than 10 minutes the video will be which allows for photo and video recording. -
Page 8: Statu S Ba R Ov Erv Ie W
1 2. STATU S B A R OV ERV IE W Menu Button (7) to adjust the Image Sharpness from 1 lowest sharpness) to 5 (highest sharpness). Image Contrast: After selecting this option, press the Menu Button (7) to adjust the Image Contrast from 1 (low contrast) to 5 (highest contrast). -
Page 9: Wi-Fi
WI-FI GRAVITY SENSOR Turn Wi-Fi on/off Turn the Gravity Sensor on/off Press & hold the Menu Button (7) to access the Main Menu Interface. Press & hold the Menu Button (7) to access the Main Menu Interface. Short press the Up/Zoom Button (6) or Down/Photo Button (8) Short press the Up/Zoom Button (6) or Down/Photo Button (8) to select the Wi-Fi option. -
Page 10: Pixel Defect Correction
PIXEL DEFECT CORRECTION STANDBY Setting the Standby State and Duration When using Cabin, you may see defective pixels such as light or dark spots within the image. To address this problem, you Long press the Menu Button (7) to access the Menu, short press can access the Pixel Defect Correction function to correct these the Up/Zoom Button (6) or Down/Photo Button (8) until you to defective pixels. -
Page 11: Language
Gravity Sensor: OFF LANGUAGE Selecting a Language Language: English Long press the Menu Button (7) to access the Menu, short Automatic Status Hiding: OFF press the Up/Zoom Button (6) or Down/Photo Button (8) until you access the Settings Menu. INFO Querying Device Information Short press the Up/Zoom Button (6) or Down/Photo Button (8) to select Automatic Status Hide. -
Page 12: La Ser Ind Icato R
1 6. L ASER INDI CATOR The CABIN features a visible laser indicator which is hidden by default. When using the laser feature for the first time, press and hold the Up/Zoom Button (6) + Menu Button (7) + Down/Photo Button (8) for more than 10 seconds. -
Page 13: H Otsp Ot Trac King
1 9. HOTSPOT TR AC KING your units serial number. Select the appropriate Wi-Fi option and enter the password. The initial password is 12345678. The CABIN provides a hotspot tracking function which allows you After Wi-Fi is accessed, you can control the device via the to track the hottest object in the image. -
Page 14: Basic Inspecti On/Mai N T En A Nc E
22. BASIC INSPECTI ON/MAI N T EN A NC E Please give us a call at 800-769-7125, visit irayusa.com/warranty It is recommended to carry out a technical inspection every time email Info@InfiRayUSA.com with any questions. before use. This warranty gives you specific legal rights, and you may also Please check the following: have other rights which vary from state to state. -
Page 15: Genera L Tr Oub Leshooti N G
25. GENERA L TR OUB LESHOOTI N G The table lists problems that may occur when operating S UP PORT/ S ERVICE: irayusa.com/support the BRAVO series. Carry out the recommended checks and info@irayusa.com troubleshooting steps in the order shown in the table. Please 800-769-7125 contact iRayUSA or an authorized vendor for assistance before attempting to perform any modifications or repairs beyond... - Page 16 NOT ES...
- Page 17 NOT ES...
- Page 18 Outdoor 800 Railhead Road #316 Fort Worth Tx 76106 800-769-7125 682-499-0047 info@irayusa.com Specifications are subject to change without notice. For the most up-to-date specs, go to irayusa.com. Not responsible for typographical errors. Ver 1.10102721...
