Cabin Series
Operating Manual
V1.0
IRay Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cabin Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iRay Technology Cabin Series

Summary of Contents for iRay Technology Cabin Series

  • Page 1 Cabin Series Operating Manual V1.0 IRay Technology Co., Ltd.

  • Page 2: Specifications

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Specifications Model CBL19 Microbolometer Type Uncooled VOx Resolution 384×288 Pixel size, μm NETD, mk ≤40 Frame refresh rate, Hz Optical Specifications Objective lens, mm Field of view 13.8º × 10.4º Visual amplification, × Digital zoom, ×...

  • Page 3: Package Contents

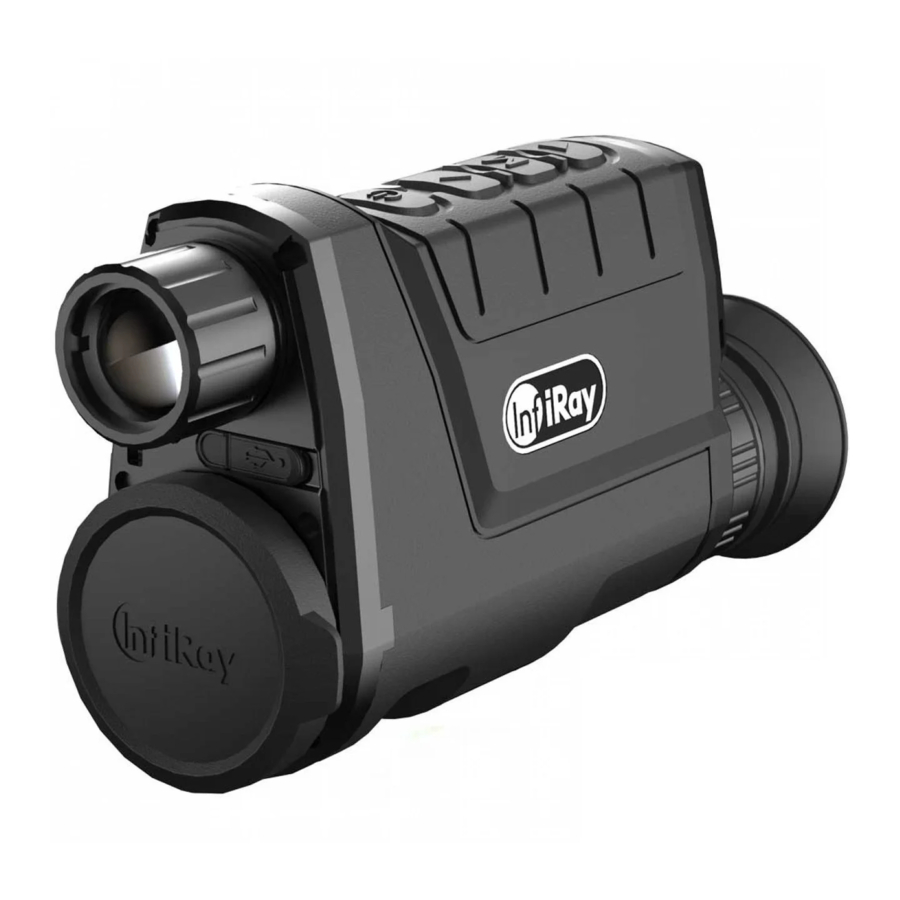

    Operating Manual 2. Description: Cabin Series Thermal Imaging Monocular is specially designed for outdoor night vision. Cabin has powerful performance, no matter it is day or night, and no matter how bad weather conditions are (such as rain, snow, fog, and haze, etc.). Unaffected by the strong light and requiring no external light source, it can even observe the targets hidden behind obstacles (such as branches, grass, and bushes, etc.).

  • Page 4: Button Operations

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Stadiametric rangefinder Long detection range 50Hz high frame refresh rate Built-in memory card, supporting photographing and video recording Support App connection via Wi-Fi Built-in digital compass and motion sensor Support PIP (picture in picture) mode Defective pixel calibration Convenient user interface 4.
  • Page 5 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 device/Standby Standby Wake up the device —— Main menu/ Shortcut Exit menu/Return to —— menu the upper menu Defective pixel Add/delete defective —— calibration interface pixels Open the shortcut Home screen Open the main menu menu Shortcut menu...
  • Page 6 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 6. Battery and Safety Cabin is supplied with a quickly removable 18650 Li-ion battery pack, which enabled the device to be used for up to 7.5h. The battery should be fully charged before first use. Method 1: Charging with Type-C Port Align the orange vertical line on the battery pack with the orange horizontal line next to the...
  • Page 7 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 After finishing the above steps, the LED indicator (17) on the battery charger (15) will display the battery charge state. ◐ Battery level is from 1% to 25% ● ◐ Battery level is from 25% to 50% ●...

  • Page 8: External Power Supply

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Do not charge the battery immediately after you bring it from the cold to the warm. Wait 30 to 40 minutes for it to warm up. Do not use the charger if it is modified or damaged. The device should be charged at a temperature of 0°C~+45°C.

  • Page 9: Installation And Use

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 will become a USB icon the power indicator will turn green. When the external power supply is disconnected, Cabin will automatically switch to the battery pack power supply and will not shut down. 8.

  • Page 10: Digital Zoom

    2s. Remove the lens cap after calibration. 10. Digital Zoom The Cabin series supports 1-4 times magnification of images to increase visual magnification. On the home screen, press the Up/Zoom button (6) to circularly zoom the image.
  • Page 11 +86-400-998-3088 11. Photographing and Video Recording The Cabin series is equipped with a built-in 16 GB memory card, which allows photographing and video recording. The image and video files will be named after time, so it is recommended to set the system date and time in the main menu ("Main Menu >...
  • Page 12 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 HHMMSS means hours/minutes/seconds; XXX means three-digit code of the multimedia file. This code of the multimedia file cannot be reset. The maximum duration of a video recording file is 10 minutes. When it is more than 10 minutes, the video will be automatically recorded onto a new file.

  • Page 13: Status Bar

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 12. Status Bar The status bar is located at the top of the image interface and displays the information related to the current operating status of the device. From left to right, there are: .Current image mode ( : white-hot;...

  • Page 14: Shortcut Menu

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 13. Shortcut Menu You can quickly adjust the settings of some common functions through the shortcut menu, including image mode, screen brightness, image sharpness, and image contrast. On the home screen, press the Menu button (7) to go to the shortcut menu interface. Press the Up/Zoom button (6) or Down/Photo button (8) to switch the following options.
  • Page 15 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Press the Menu button (7) to modify the parameters of the current option or go to the next level of the menu. When the cursor reaches, the icon of the option will change from white to blue. In all menu interfaces, you can press and hold the Menu button (7) to save the modifications and return to the home screen, and short press the Power button (5) to return to the upper menu without saving.
  • Page 16 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 the Wi-Fi option. Short press the Menu button (7) to enable or disable Wi-Fi. The icon in the status bar changes accordingly after this option is enabled or disabled. Enabling/Disabling video output Press and hold the Menu button (7) to go to the main menu interface.
  • Page 17 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 status bar changes accordingly. Enabling/Disabling the digital compass Press and hold the Menu button (7) to go to the main menu interface. Short press the Up/Zoom button (6) or Down/Photo button (8) to select Digital the Digital compass option.
  • Page 18 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 If the actual location differs from the location marked by the laser pointer, you can use this function to calibrate the laser pointer. Press and hold the Menu button (7) to go to the main menu interface. Short press the Up/Zoom button (6) or Down/Photo button (8) to select the Laser Pointer Calibrate option.
  • Page 19 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 target position indicated by the laser. When Center/Default is selected, briefly press the Menu button (7) to return he cursor to the center/default position. Press and hold the Menu button (7) to save and exit to the home screen. When using Cabin, you may see defective pixels, such as visible light spots or dark spots with stable brightness.
  • Page 20 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 (8) the pointer moves rightward or downward. After finishing moving the pointer, short press the Menu button (7) to save the setting and exit. The icon stops blinking. You can repeat the preceding steps to change the pointer location until it reaches the position of the blind pixel.
  • Page 21 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 the Compass Calibration option. Short press the Menu button (7) to enter the Compass Calibration interface. An icon like a triaxial coordinate system appears on the screen. Follow the icon prompt to rotate the device along three axes at least 360 degrees each axis in the 15 seconds.
  • Page 22 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Set the date, time, language, and automatic status hiding, restore to factory settings, and query device information. Setting the system date Settings Short press the Menu button (7) to enter the secondary menu of Settings.
  • Page 23 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 (7) to save and exit. Setting the system time Short press the Menu button (7) to enter the secondary menu of Settings. Short press the Up/Zoom button (6) or Down/Photo button (8) to select the Time option. The 24-hour view is used with hour and minute displayed.
  • Page 24 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Selecting the language Short press the Menu button (7) to enter the secondary menu of Settings. Short press the Up/Zoom button (6) or Down/Photo button (8) to select the Language option. Short press the Menu button (7) to enter its secondary menu.
  • Page 25 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 button (8) to select Automatic Status Hide. Short press the Menu button (7) to enter its secondary menu. Short press the Up/Zoom button (6) or Down/Photo button (8) to enable or disable this function. Short press the Menu button (7) to confirm the selection and exit to return to the main menu.
  • Page 26 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 After Factory Reset is selected, the following functions will be restored to default settings: Image mode: White-hot Ultraclear mode: Off Visual amplification: 2.0× Shutter calibration: A Compass: Off Standby: Off Analog video: Off Wi-Fi: Off Gravity sensor: Off Language: English...

  • Page 27: Picture In Picture (Pip)

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 15. Picture In Picture (PIP) Picture-in-Picture (PIP) provides a floating window independent of the full screen. This window shows part of the image which is enlarged to 2× in a certain area centered on the reticle of the main image.

  • Page 28: Led Indicator

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 distance from an object with a known size. On the home screen, press and hold the Up/Zoom button (6) and the Menu button (7) to enable stadiametric rangefinder. After this function is enabled, two lines used for measuring will appear in the image, and icons of three pre-configured objects and measured values will be displayed on the right side.

  • Page 29: Hotspot Tracking

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Down/Photo button (8) again to disable the LED indicator, and the status bar will display 19. Hotspot Tracking Cabin provides hotspot tracking function, which allows you to track the hottest object in the image.
  • Page 30 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 You can operate the buttons and the menu only after GUI information is displayed. 21. Wi-Fi Cabin has a built-in Wi-Fi module. The device can connect to a mobile apparatus (computer or smart phone) via Wi-Fi.
  • Page 31 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 update the program by connecting a smartphone or tablet via Wi-Fi. You can download the user manual of InfiRay Outdoor at our official website (www.infirayoutdoor.com). You can also obtain and update the firmware program of the product on our official website. About InfiRay Outdoor You can download and install the InfiRay Outdoor app on the official website (www.xinfrared.com) or an app store.

  • Page 32: Product Maintenance

    11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 23. Technical Inspection Perform a technical inspection to check the following items each time before you use the device: Exterior of the device (no crack on the enclosure) Lens and eyepiece (no crack, oil, stain, or other sediments) Status of the rechargeable battery (fully charged in advance) and electrical contact (no salinization or oxidation) 24.
  • Page 33 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Images are unclear, vertical lines appears, Calibrate the images as instructed by Calibration is required. or the background is the user manual. not even. The images are too The screen is not bright Adjust the brightness of the screen.
  • Page 34 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 At temperatures above 0℃, temperature-rise varies with the observed When the device is objects (environment and background) due to different heat used at a low conductivity coefficients. As a result, high-temperature contrast occurs temperature, the and the image quality is better.
