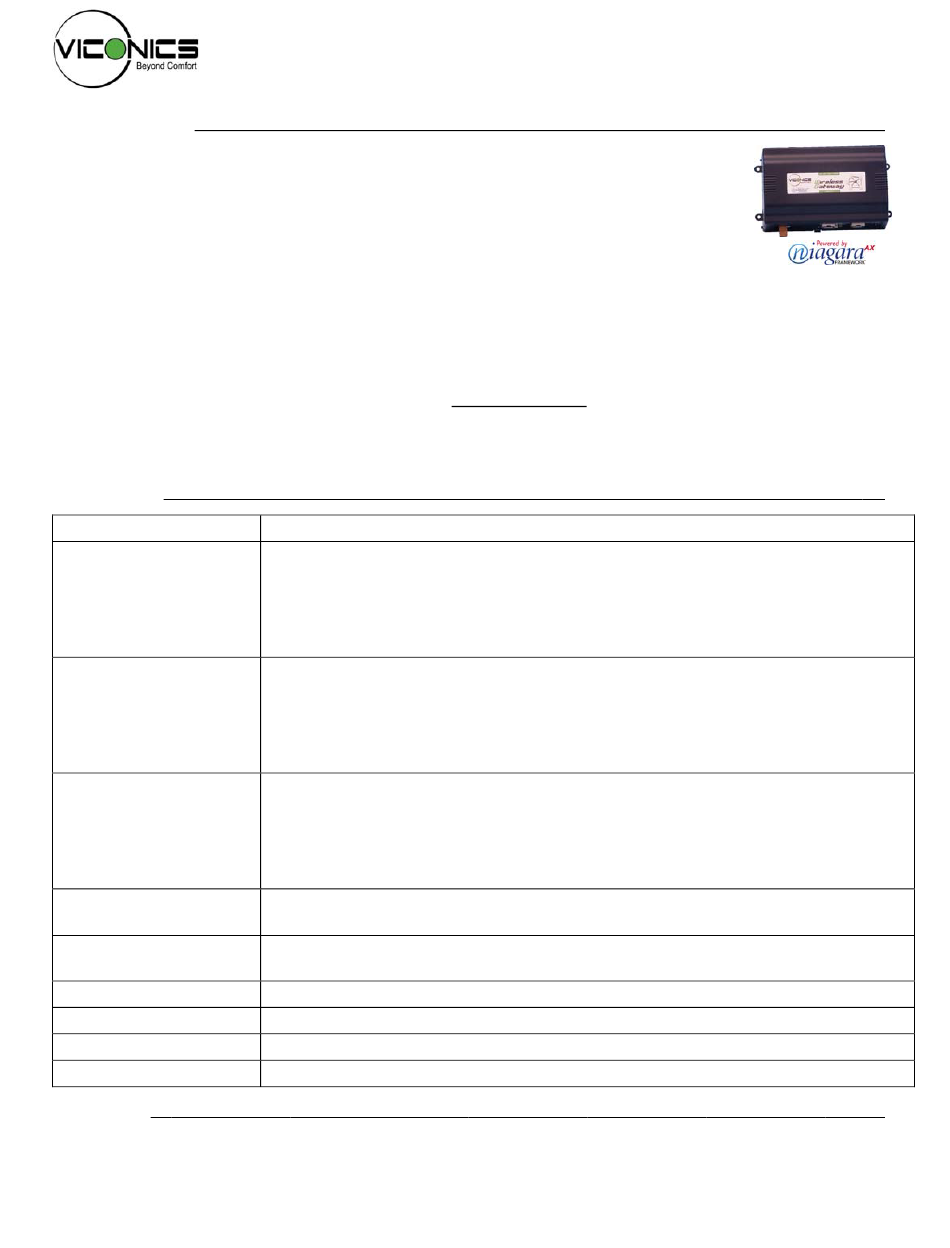

Product overview
The VWG-40 and related wireless thermostats are targeted to retrofit applications where the
addition of communicating field bus wiring within the building space is prohibitive. The
Gateway and Communicating Thermostats with wireless field bus encourages the use of
existing wiring utilized by existing electronic thermostat type controls.
The VWG-40 when utilized in conjunction with the VT7xxxXxxxxW series wireless thermostats will offer the integrator
simple BACnet IP or BACnet MS/TP objects to integrate over standard building automation systems using familiar
integration toolsets.
A maximum of 30 wireless thermostats can be wirelessly attached to a single VWG
The following additional documentation is available on www.viconics.com
•
Gateway BACnet integration guide (VWG-40-IP & VWG-40-MSTP), is available in document ITG-VWG-40-BAC-Exx
•
Information on design consideration of wireless mesh networks and VWG set-up / diagnostics is available in document LIT-
VWG-40-SETUP-Exx
Part available
Part number
VWG-40-IP-1000
VWG-40-MSTP-1000
VWG-40-LON-1000
(Upcoming)
VWG-APP
VWG-RA
VWG-WA
VWG-PS-DC
VWG-PS-AC
VWG-BB
Trademarks
Niagara, Niagara AX is a registered trademark of Tridium, Inc.
LON, LonWorks and LonTalk are registered trademarks of Echelon Corporation
BACnet is a registered trademark of ASHRAE
Description
Viconics BACnet over IP wireless gateway. Includes:
-
Supports up to 30 wireless thermostats
-
Factory mounted wireless adapter
-
24 Vac panel mounted power supply
-
Gateway mounted antenna
Viconics BACnet RS485 MS-TP wireless gateway. Includes:
-
Supports up to 30 wireless thermostats
-
Factory mounted wireless adapter
-
24 Vac panel mounted power supply
-
Gateway mounted antenna
Viconics LON wireless gateway. Includes:
-
Supports up to 30 wireless thermostats
-
Factory mounted wireless adapter
-
24 Vac panel mounted power supply
-
Gateway mounted antenna
Interface software for VWG configuration and set-up. Operates under Windows XP ™.
Uses a LAN crossover IP connection for initial set-up.
Remote antenna for gateway when the gateway is installed inside a metal cabinet or
when remote antennal mounting is required by physical installation
Replacement antenna for gateway mounted antenna setup
24 Vac to 15 Vdc panel mounted power supply for VWG
120 Vac to 15 Vdc power supply for VWG with cord
Replacement battery backup pack for the VWG
Viconics Wireless Gateway
Hardware Installation Guide
(Issue Date September 24, 2008 – 028-0179 R8)
VWG-40
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viconics VWG-40
Summary of Contents for Viconics VWG-40
- Page 1 The VWG-40 when utilized in conjunction with the VT7xxxXxxxxW series wireless thermostats will offer the integrator simple BACnet IP or BACnet MS/TP objects to integrate over standard building automation systems using familiar integration toolsets.
- Page 2 If you access a third party website mentioned in this guide, then you do so at your own risk. Viconics provides these links only as a convenience, and the inclusion of the link does not imply that Viconics endorses or accepts any responsibility for the content on those third- party sites.
- Page 3 Overview This document covers the mounting and wiring of the Viconics VWG-40 series product. It assumes that you are an engineer, technician, or service person who is performing control system installation. Instructions in this document apply to the following products:...
- Page 4 • All Viconics wireless gateways and related wireless thermostats are to be used only as operating controls. Whenever a control failure could lead to personal injury and/or loss of property, it becomes the responsibility of the user to add safety devices and/or alarm system to protect against such catastrophic failures.
- Page 5 Mounting Mount the VWG in a location that allows clearance for wiring, servicing, and antenna removal. Environmental Requirements Note the following requirements for the VWG mounting location: • This product is intended for indoor use only. Do not expose the unit to ambient conditions outside of the range of º...
- Page 6 R e m o v i n g a n d R e p l a c i n g t h e C o v e r You must remove the VWG cover to connect the battery (new unit) or to replace the battery. The cover snaps onto the base with four plastic tabs (two on each end).
- Page 7 Board Layout Figure below shows the location of LEDs, connections and other features of the VWG with the cover removed. Net2 Net1 BEAT status status status status Location of serial number Ethernet IP connection RJ-45, Net1 Ethernet IP connection RJ-45, Net2 Battery Coaxial power connector...
- Page 8 The packing slip accompanying the VWG will provide the “factory-shipped” IP settings for both NET1 and NET2. Refer to the document LIT-VWG-40-SETUP-Exx for more information for details on the default IP address and how to change it. ( VWG-40-IP only ) The supplied ferrite in the VWG packaging needs to be installed on the IP wire in a specific way for FCC compliance.
- Page 9 Antenna installation Co nt ro lle r mo unt ed a nte nn a ( VWG-WA ) All VWG-40 are supplied with a controller-mounted antenna. The antenna is shipped loose in the controller main packaging box. This installation type is to be used only when the controller ( and antenna ) is not installed inside a closed metal enclosure and that clear reception is expected.
- Page 10 For more information on configuring and using the VWG controller, consult the following documents available from the VWG section at www.viconics.com: • Gateway BACnet integration guide (VWG-40-BIP & VWG-40-MSTP), is available in document ITG-VWG-40-BAC-Exx • Information on design consideration of wireless mesh networks and VWG set-up / diagnostics is available in document LIT-...
- Page 11 Wireless card communication status The Wireless card communication status is located right beside the wireless antenna connection on the VWG. This LED provides a simple diagnostic status of the Viconics wireless network. 1 x 200ms short blink Power on...
- Page 12 The VWG contains a non-user replaceable fuse, soldered on the circuit board. This fuse provides protection from internal shorts or connection to incorrect power supplies. If the fuse circuitry is suspect, contact Viconics for technical support. See the “Returning a Defective Unit” section.
- Page 13 Canadian Department of Communications( ICES-003) This digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Specifications Platform • PowerPC 405EP 250 MHz processor •...
