Santec KATANA 4720SQ Installation Instructions Manual

Please read the instructions completely before beginning the installation.
Katana Collection
Model Number: 4720SQ
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"

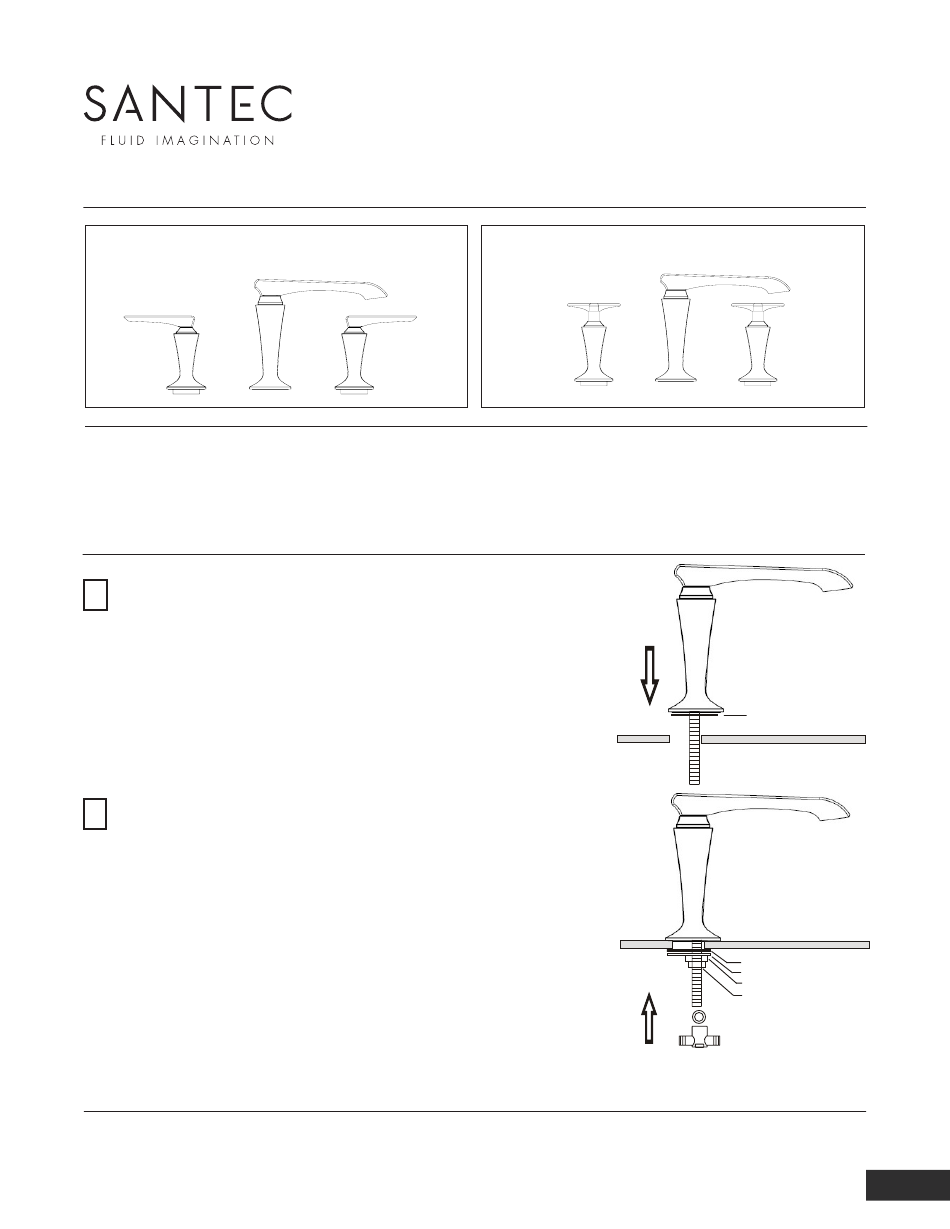

SPOUT INSTALLATION

- Remove the tee connector, spout mounting hardware and tee
1
connector washer from the bottom of the spout assembly. Apply
a ring of silicon caulking around the center hole on the top of the sink.
Do not use plumbers' putty which can damage the finish of the faucet.
- From the top of the deck, insert the spout's threaded shank through
the center hole of the sink. Make sure the spout flange washer is
properly placed underneath of the flange and gently pressed against
the sink top.
- Slip the spout mounting hardware back onto the spout. First the
2
notched rubber washer, then the notched metal washer and lastly
the brass lock nut. Hand tighten the lock nut.
- Tighten the lock nut. Make sure the spout does not move side ways
Adjust it if necessary.
- Place the tee connector washer into the tee connector and thread
the tee connector onto the end of the spout shank. Tighten to seal.
- Align the spout and tighten the shank lock nut firmly.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
WIDESPREAD LAVATORY SET
Katana Collection
Model Number: 4720SR
Rev 11/2019
Installation Instruction
KATANA COLLECTION
Rubber washer
Notched rubber washer
Notched metal washer
Spout stabilizer
Brass lock nut
Tee connector washer
Tee connector
1/7
