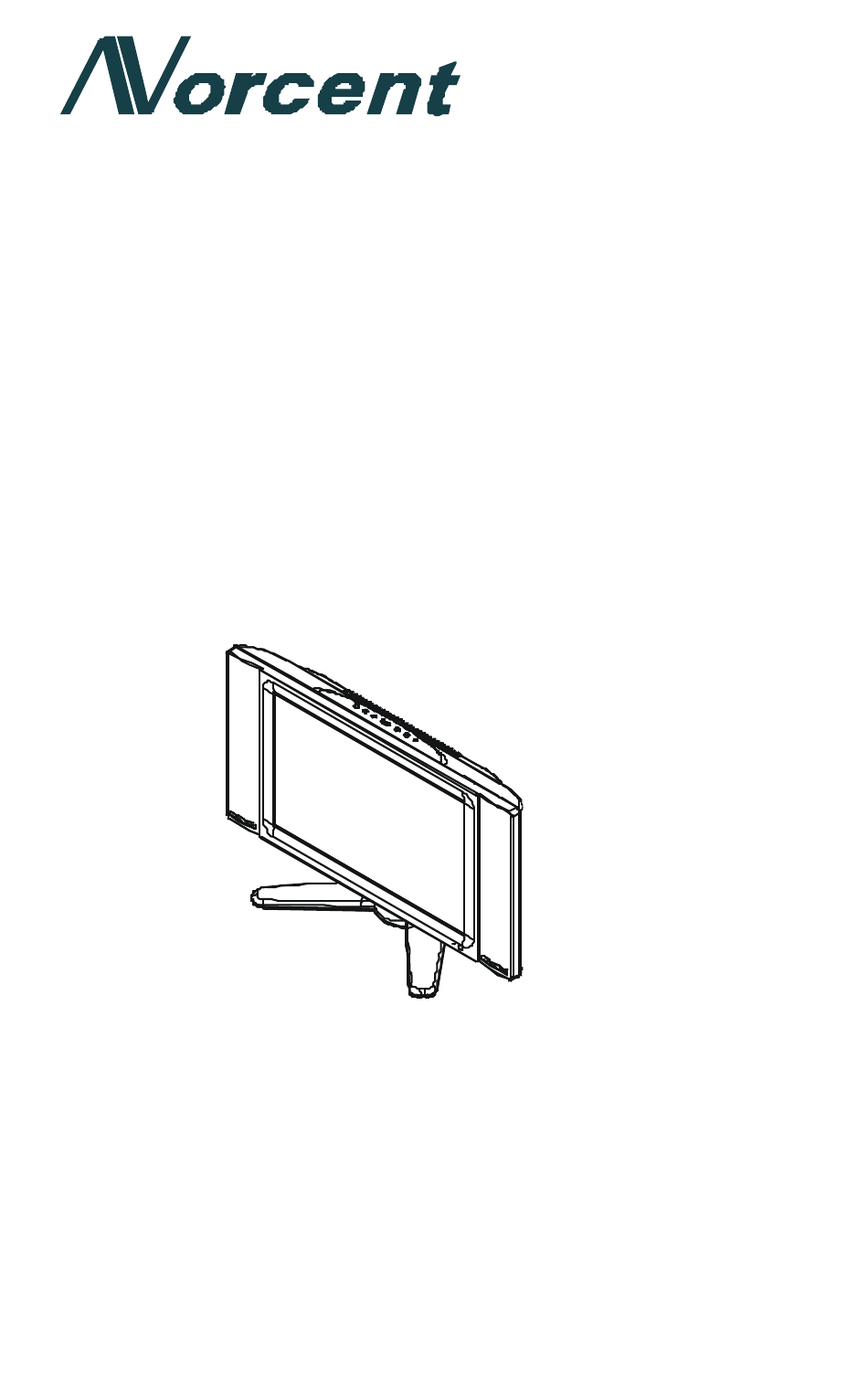

- Page 1 USER’ S MANUAL LT2020 Thank you very much for choosing the Norcent LCD TV. We recommend that you take a few minutes to read carefully through this manual before installing and switching on the TV. Please keep this manual in a safe place for your future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION ----------------------------------------------------------------------- 2 For Your Safety ----------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTUONS ------------------------------------- 3 PREPARATION ---------------------------------------------------------------------- 5 OPERATING INSTRUCTIONS -------------------------------------------------- 7 Use of the remote control --------------------------------------------------- 7 To use the menus ------------------------------------------------------------- 8 Main menu ---------------------------------------------------------------------- 8 CONNECT PERIPHERAL EQUIPMENT -------------------------------------- 15 Front Panel Control Knobs -------------------------------------------------- 15 Preparation --------------------------------------------------------------------- 15... -
Page 3: For Your Safety
FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 To prevent fire or shock hazard, do not expose the TV to rain or moisture. Dangerously high voltages are present i n side the TV. Do not open the cabinet. Refer servicing to qualified personnel only.
-
Page 5: Important Safety Instructuons
IMPORTANT SAFETY INSTRUCTUONS Read before operating equipment 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. - Page 6 A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance;...
- Page 7 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE Note to the CATV system installer: This reminder is provided to call the CATV system installer’ s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
-
Page 8: Preparation
PREPARATION Please, make sure to connect the power plug to the wall outlet socket after connecting the TV to the adapter! Place the TV on a solid surface. Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. - Page 9 3. Remote control: Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AAA 1.5V). 4. Power: Insert the power cord in the wall socket having an AC power supply. 5. Turn the TV on: Press the power button at the topside of the TV to turn it on. If the TV is in power off, the indicator in front of the TV illuminates abmer.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS USE OF THE REMOTE CONTROL MUTE POWER: Temporarily interrupt the Press to turn on/off the sound or restore it. TV. The TV is never completely powered off DISPLAY unless it is physically Press this button to unplugged. Display Channel number on the right-top corner. -
Page 11: To Use The Menus
TO USE THE MENUS 1. Press the MENU button to display each menu 2. Use the cursor up/down to select a menu item. 3. Use the cursor left/right to enter a submenu or enable/disable the function. Press the MENU button to exit the menu. MAIN MENU Press the MENU button into the main OSD (On Screen Display). - Page 12 4. Sharpness is adjusted from 0 to 10. You can adjust picture contrast, brightness, color, tint and sharpness to the levels you prefer. 5. Reset is set up to default value.
- Page 13 When adjust any item sub-OSD will show up like this. Audio Adjust 1. Volume is adjusted from 0 to 100. 2. Bass and Treble are adjusted from 0 to 100. 3. W-Head Phone (optional) is the function for wireless headphone enable or disable.
- Page 14 CLOSED CAPTION It’ s allows you to read the dialog of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on screen “ text boxes” to show dialogue and conversations while the TV program is in progress.
- Page 15 V-CHIP SETUP Select V-Chip on OSD then enter 4 digits of pin number. l Initial pin number is “0000”. l If you enter an incorrect pin number “Incorrect” message will be displayed. It is the parental control function (V-chip). It is used to block program viewing based on the ratings by the broadcaster.
- Page 17 Setting up Movie Guidelines l Use Up/Down arrow buttons to move around the matrix and press Right arrow button to change the value from “U” to ‘ B” or “B” to “U” CHANGE PIN Personal Identification Number is for change password to control the V -chip setup;...
- Page 18 Sleep Timer It is for set a time period after which the TV should switch itself to standby. The counter runs from 0 > 30 > 60 > 90 > 120 minutes. The timer begins to count down from the number of minutes selected after the display has disappeared.
- Page 19 PC Adjust 1. Auto Adjust is the function auto-sizing for VGA input. 2. Contrast, Brightness, Focus, Clock, H-Position, V-Position and Color Temp are the functions for PC adjustment. Color Temp for you can adjust the color temperature you prefer.
-
Page 20: Connect Peripheral Equipment
CONNECT PERIPHERAL EQUIPMENT FRONT PANEL CONTROL KNOBS Power Key: Press to turn on or off the TV. MENU Key: Press to show the OSD menu and exit OSD menu at the TV. Down / Up Key: Press to perform select function and channel. - / + Key: Press to confirm your function selection and adjustment. -
Page 21: Video Recorder
VIDEO RECORDER How to connect 1. Connect the antenna cable to the RF IN port of your VCR. 2. Connect another RF cable from the output RF of your VCR to the Antenna input of your TV. Better quality when playing from your VCR can be obtained if you also connect the Video, Audio LEFT AND right (only for stereo equipment) cables to the VIDEO, AUDIO L and R inputs AV. -
Page 22: Camera, Camcorder, Video Game Set
CAMERA, CAMCORDER, VIDEO GAME SET, … How to connect Composite Video: Connect your camera, camcorder, videogame set,… to Audio port (Audio L for mono) and Video port 2. S-Video Connection S-VHS quality with an S-VHS camcorder is obtained by connecting the S- VHS cable with the S-VIDEO input and AUDIO input How to use... -
Page 24: Digital Set Top Box
DIGITAL SET TOP BOX Connect DTV set top box RF output to TV Antenna input (TV channel set to CH3 or CH4). If your DTV set top box has component (Y, Pb, Pr) video ports, use them for better picture. How to connect component video: 1. -
Page 25: Headphone
HEADPHONE 1. The earphone jack is located at the rear corner of the TV. 2. The MUTE key on the remote control works on both internal speaker and the earphone. 3. Use volume key to adjust the volume. Note: When a TV channel or external AV source is blocked because of a rating set via the Parental control menu, also the headphone is muted. - Page 26 At the end of its life specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old receiver according to local regulations.
-
Page 27: Regulatory Notices
Regulatory Notices – Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 28: Product Specification
PRODUCT SPECIFICATION Feature 20" screen SVGA ( 800 x 600 ) Resolution High Brightness ( 500 cd/m High Contrast Ration ( 500:1 ) Wide Viewing Angle ( 160° H / 120° V ) Built-in 181 channel Tuner with MTS, SAP, Closed Caption &... - Page 29 Analog: D-Sub 15 pin Signal Input (detachable cable) PnP compatibility DDC / 2B PC Input Analog: FH: 31.5KHz to 49KHz Input frequency FV: 56Hz to 75Hz Recommended Analog: 800 x 600 (60Hz) Headphone Mini-jack for stereo Input Audio (3.5ø) Speaker (built-in): Two 5 watt speakers Audio Output Audio Output: L / R...
-
Page 30: Before Calling Service
BEFORE CALLING SERVICE Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms Items to Check and Actions to follow ? Ghost? or double image *This may be caused by obstruction to the antenna due to high rise buildings or... -
Page 31: Glossary
*Clean the remote control sensor lens on the TV. *You can still use the buttons at the front of your TV. *Select the TV mode to be sure your remote control is in the TV mode. GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. - Page 32 Sleep Timer Function with which you can set a time period after which the TV should turn itself off. S-Video Input Allows direct connection of high-resolution video sources, such as a Super VHS videocassette recorder, Laser Disc player, etc. Provides improved picture resolution, sharpness, and clarity.
- Page 33 Norcent Technology Inc., 550 Cliffside Drive, San Dimas, CA91773 www.norcent.net info@norcent.net support@norcent.net Customer support 909-305-2121 P/N : 41L2001-815-1A...
