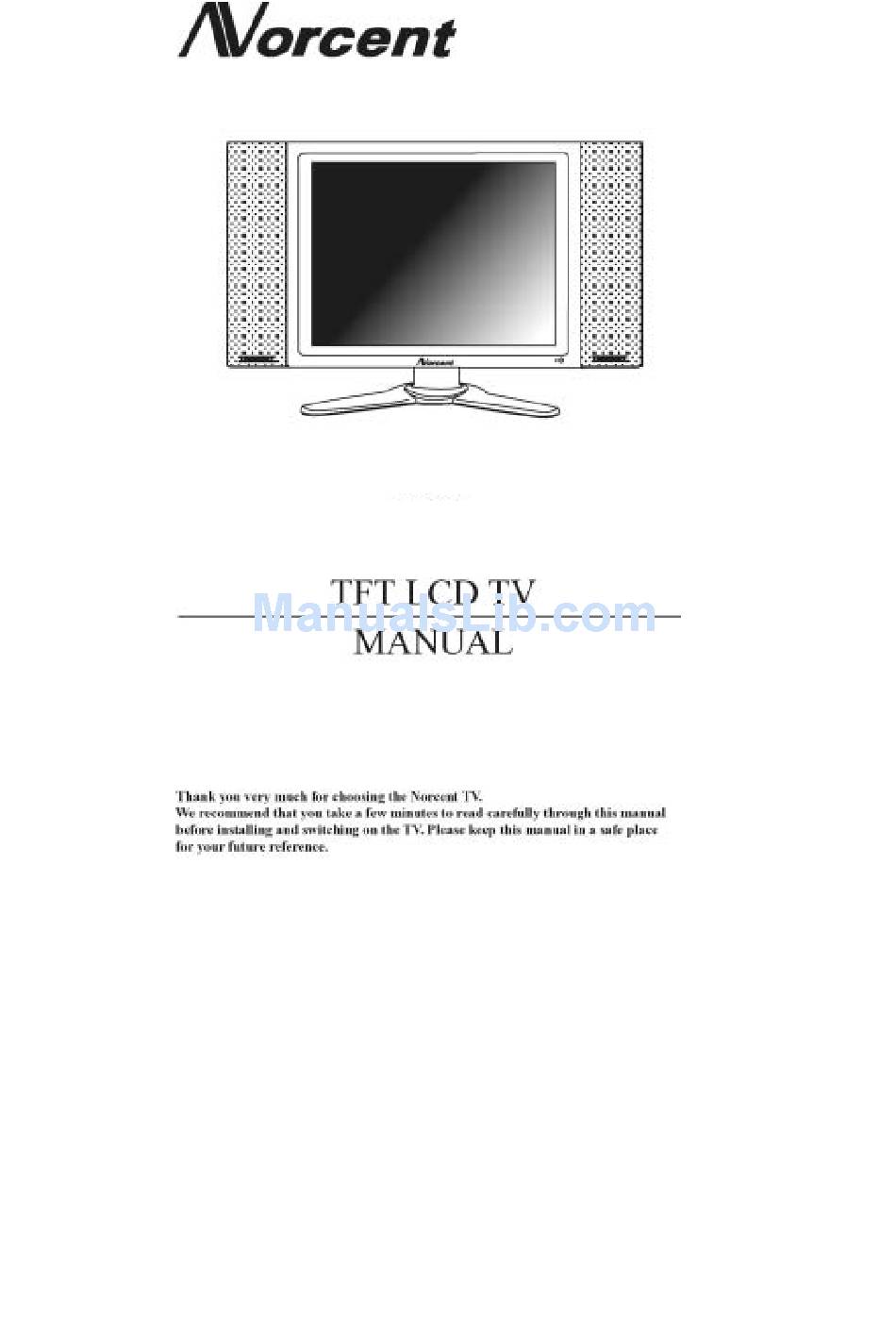

- Page 1 LT2720/LT2740...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION ..................1 FOR YOUR SAFETY ................ 2 IMPORTANT SAFETY INSTRUCTUONS ........3-4 PREPARATION ................5-6 OPERATING INSTRUCTIONS..............7 USE OF THE REMOTE CONTROL ..........7 USING THE MENUS................. 8 MAIN MENU..................8 CONNECT PERIPHERAL EQUIPMENT ............ 16 FRONT PANEL CONTROL KNOBS .......... -
Page 3: For Your Safety
FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference。 FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)） NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Important Safety Instructuons
IMPORTANT SAFETY INSTRUCTUONS Read before operating equipment Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. - Page 5 A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance;...
-
Page 6: Preparation
PREPARATION Place the TV on a solid surface. Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity. - Page 7 3. Remote control: Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AAA 1.5V). If you intend to change the batteries on your own, please be aware of the compatibility with the zinc carbide batteries to prevent accidents!! Power: Insert the power cord in the wall socket having an AC power supply Turn the TV on:...
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS USE OF THE REMOTE CONTROL DISPLAY Press this button to POWER: Display Channel Press to turn on/off the TV. number on the right-top The TV is never completely corner. powered off unless it is physically unplugged. MUTE Temporarily interrupt the sound or restore it. -
Page 9: Using The Menus
OPERATIONS MENU Press the MENU button to display or close the main menu. Use the cursor up/down to select a menu item. Use the cursor left/right to enter a submenu or enable/disable the function. Press the MENU button to exit the menu. Use the instruction bar displayed under the menu to assist in the operation of this equipment. - Page 10 PICTURE PARAMETERS BRIGHTNESS: Adjust the brightness of the image. CONTRAST: Adjust the contrast of the image. SATURATION: Adjust the depth of color of the image. HUE: Adjust the red/green hue of the image. Adjust the color temperature to your preference: 5000°, COLOR TEMP: USER B to...
- Page 11 PC PARAMETERS AUTO CONFIG: Enable the automatic configuration of the optimum size of the graphic. CLOCK: Adjust the time. PHASE: Adjust the phase of the graphic. POSITION: Adjust the position and angle of the graphic.
- Page 12 AUDIO SETTINGS BASS: Adjust bass tone. TREBLE: Adjust treble tone. SRS: Switch SRS surround sound ON or OFF. MTS: Select MONO, STEREO or SAP for bilingual setup. MUTE: Temporarily mute the sound (can be done through remote control).
- Page 13 PICTURE-IN-PICTURE PIP POSITION: The PIP can be placed in any position on the screen according to one’s wishes. If there is no menu, use the ▲, buttons on the remote control to change the PIP ▼, position. PIP SIZE: Can be used to switch the PIP off (OFF) or select the size (SMALL, MEDIUM, LARGE) of the PIP .
- Page 14 CHANNEL SETTINGS SYSTEM: Used to choose between (ANTENNA) or (CABLE). CHANNEL EDIT: The auto scan function searches and stores the signal of the TV station when the YES option is selected. The ADD or DELETE function edits the TV station signal while the channel will be displayed if the CURRENT CH function is selected.
- Page 15 PARENTAL CONTROLS LOCK MENU: Switch the functionality to configure ratings on or off. MPAA RATING: Configure MPAA ratings. TV PG RATING: Configure TVPG ratings. PASSWORD: Change the password (default is ‘1111”). Please follow the instructions on the screen. Once changed, please remember your own password.
- Page 16 GENERAL SETTINGS OSD POSITION: Shift the position to one’s preference. OSD TIMEOUT: Configure the time to be displayed on screen. OSD LANGUAGE: Configure the language (English , France or Spanish) the menu. OSD LOCK: Lock the selected configurations to prevent them from being overwritten.
-
Page 17: Connect Peripheral Equipment
CONNECT PERIPHERAL EQUIPMENT FRONT PANEL CONTROL KNOBS Press to turn on or off the TV. Power Key: Press to show the OSD menu and exit OSD menu at the TV. MENU Key: Down / Up Key: Press to perform select function and channel. Press to confirm your function selection and adjustment. -
Page 18: Video Recorder
VIDEO RECORDER How to connect Connect the supplied antenna cable to the RF IN port of your VCR. Connect another RF cable from the output RF of your VCR to the ╦ input of your TV. Better quality when playing from your VCR can be obtained if you also connect the Video, Audio LEFT AND RIGHT (only for stereo equipment) cables to the VIDEO, AUDIO L and R inputs AV. -
Page 19: Camera, Camcorder, Videogame Set
CAMCORDER, VIDEO GAME SET, … DIGITAL CAMERA How to connect Connect your digital camera, camcorder, videogame set,… to VIDEO port and AUDIO L mono equipment. For stereo equipment also connect AUDIO R S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cable with the S-VIDEO input and AUDIO input How to use... -
Page 20: Digital Set Top Box
DIGITAL SET TOP BOX When you dispose of a Digital Antenna cable connected to a digital Set Top Box, connect the Set Top Box to the HDTV INPUT. How to connect Connect the three separate component video cables to the DTV/Set Top Box’s Y, Pb , Pr ports and to the HDTV IN Y, Pb , Pr ports on the Connect the audio cables to the DTV/Set Top Box’s AUDIO L and R... -
Page 21: Tips
TIPS Care of the screen Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the screen before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. - Page 22 Modifications – The FCC requires the user to be notified that any changes or modifications made to this divide that are not expressly approved by Norcent consumer Electronics may void the user’s authority to operate the equipment. Cables – Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
-
Page 23: Product Specification
Product Specification Feature 27” screen WXGA ( 1280 x 720 ) Resolution High Brightness ( 550 cd/m High Contrast Ration ( 600:1 ) Wide Viewing Angle ( 170° H / 170° V ) Built-in 181 channel Tuner with MTS, SAP, Closed Caption & V- chip PC Input PIP/left right split window... - Page 24 Analog: D-Sub 15 pin (detachable Signal Input cable) PnP compatibility DDC / 2B Analog: FH: 30KHz to 80KHz Input frequency PC Input FV: 50Hz to 75Hz Recommended Analog:1024 x 768 (75Hz) Headphone Mini-jack for stereo Input Audio (3.5ø) Speaker (built-in): Two 5 watt speakers Headphone Mini-jack for stereo Audio Output...
-
Page 25: Before Calling Service
Before Calling Service Please make these simple checks before calling for service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms Items to Check and Actions to follow ″Ghost″... -
Page 26: Glossary
GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options. - Page 27 41LXXXX-815-1A...
