pols potten Ribbel 500-040-108 Instruction Manual

step 3
step 4
step 5
Pols Potten B.V. can not be held responsible for improper use of the safety instructions or installation of this product other than indicated by
the instructions on the instruction manual.

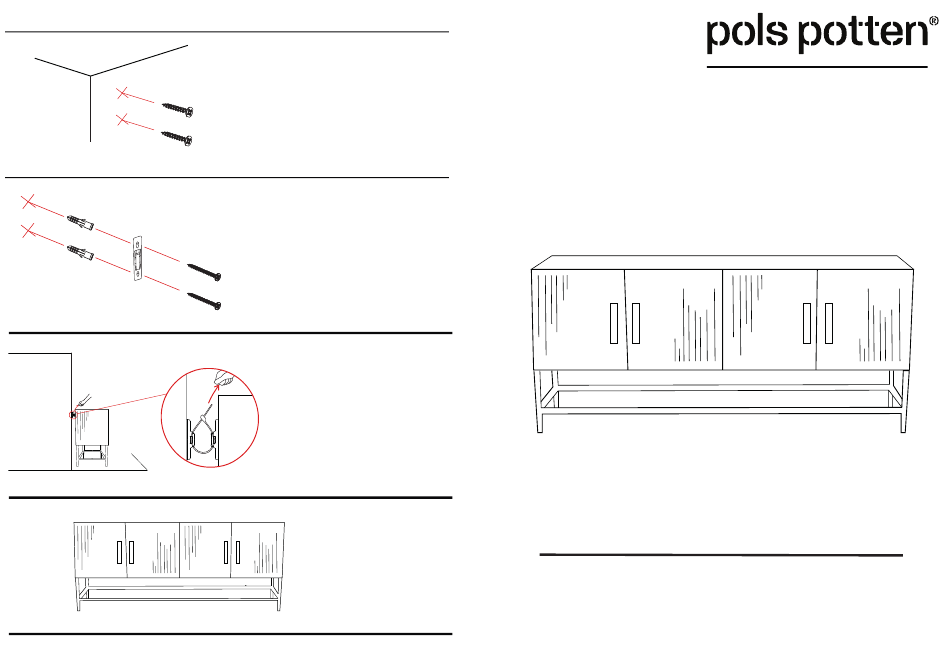

Attach one bracket (A) to the
backside of the cabinet just below
the top edge of the cabinet by
using the screws (D).
Move the cabinet to its final position on
the wall and mark the location of the
second bracket (A) on the wall.
For concrete walls, drill holes and insert
the plugs (B).
Attach the second bracket (A) to the wall
with the long screws (C).
Thread the strap (G) through the bracket
as shown below. Carefully thighten strap
but do not overtighten.
done!
version no.1
instruction manual

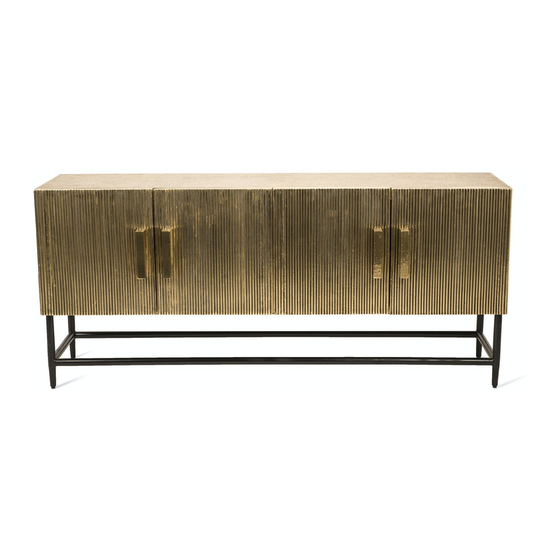

Cabinet Ribbel gold low
design by pols potten studio
500-040-108
