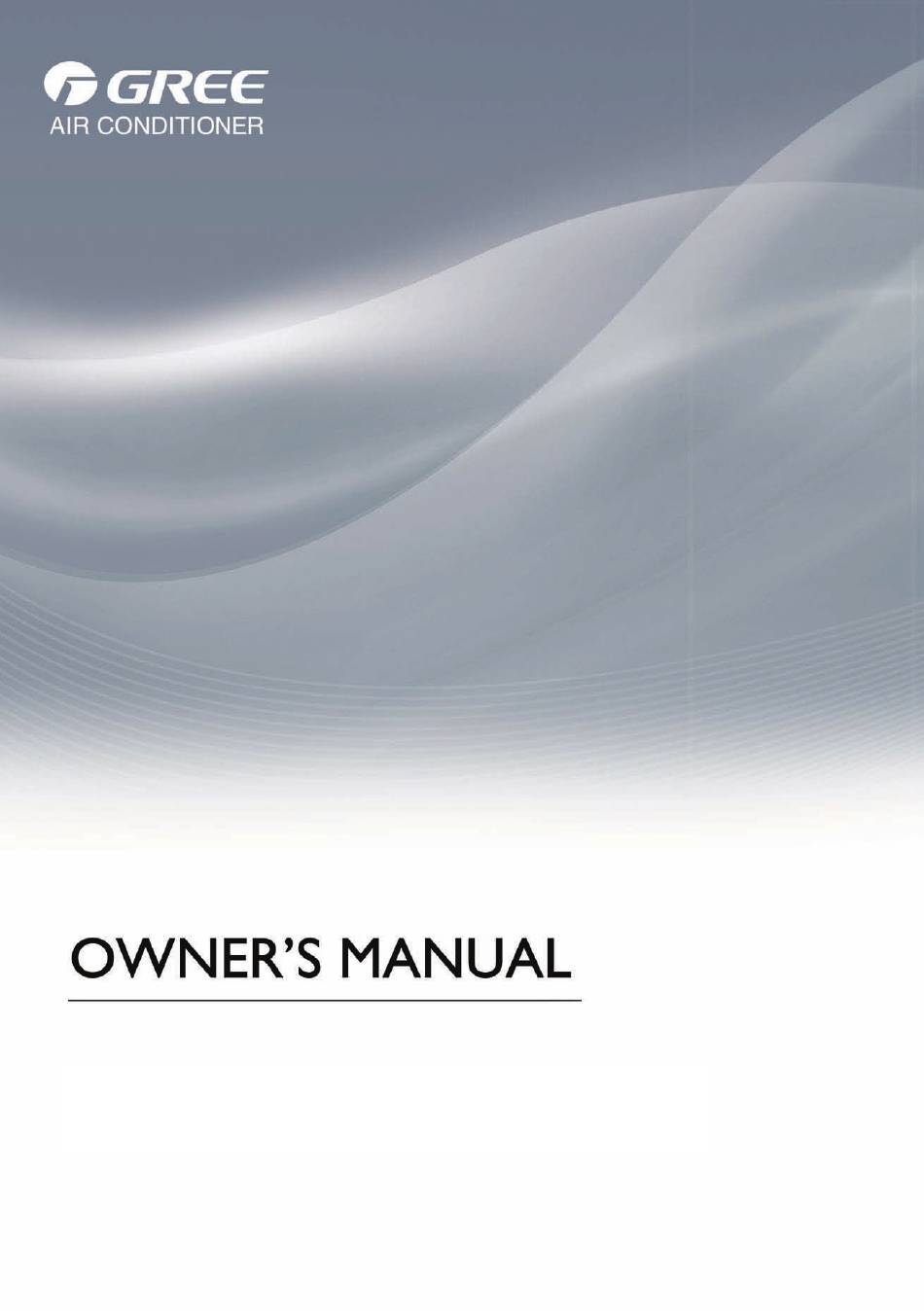

Gree GWC09UB-K3DNXXA Owner's Manual
Hide thumbs Also See for GWC09UB-K3DNXXA:

Advertisement

Split Air Conditioner
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com
or sent email to global@gree.com.cn for electronic version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWC09UB-K3DNXXA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gree GWC09UB-K3DNXXA

  • Page 1 Split Air Conditioner Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost the Owner’s Manual, please contact the local agent or visit www.gree.com or sent email to global@gree.com.cn for electronic version.
  • Page 2 M O D E L S : GWC09UB-K3DNXXA GWH09UB-K3DNXXA GWC12UB-K3DNXXA GWH12UB-K3DNXXA GWC18UC-K3DNXXA GWH18UC-K3DNXXA GWH09UB-K3DNXXB GWH09UB-K3DNXXC GWH12UB-K3DNXXB GWH12UB-K3DNXXC GWH18UC-K3DNXXB GWH18UC-K3DNXXC GWH09UB-K3DNXXE GWH12UB-K3DNXXE GWH18UC-K3DNXXE Note:“XX” stand for different front panels “A1~A9” or “B1~B9” or “C1~C9” or “D1~D9” or “E1~E9”...
  • Page 3: Table Of Contents

    CONTENTS Operation and maintenance ................ Precautions ■ ..............■ Name of parts ..........Operation of Remote Controller ■ ............Emergency operation ■ ............. Care and Cleaning ■ ..............■ Troubleshooting Installation service ..............Operation Tips ■ ............Notices for Installation ■...
  • Page 4: Operation And Maintenance

    Precautions Warning Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 Precautions Warning Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
  • Page 6 Precautions Warning Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
  • Page 7 Precautions Warning Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
  • Page 8 Precautions Warning For the air conditioner with plug ,the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.
  • Page 9: Name Of Parts

    Name of Parts Indoor unit Air in ⑴ ⑶ ⑺ ⑹ Air out ⑷ ⑸ The icons displayed: :Cool ⑵ :Dry ⑴ Power cord :Heat Power ⑵ : Remote controller :Set temp. ⑶ Front panel ⑷ Filter ⑸ Outdoor unit Horizontal louver Wall pipe ⑹...
  • Page 10: Operation Of Remote Controller

    Operation of Remote Controller Notice:This is a general remote ON/OFF controller. Some models have this Press it to start or stop operation. function while some do not. Please refer to the actual models. : Press it to decrease temperature setting. : Press it to increase temperature setting.
  • Page 11 Operation of Remote Controller Remote Controller Description ON/OFF : Press this button to turn on the unit .Press this button again to turn off the unit. Press this button to decrease set temperature. Holding it down above 2 seconds rapidly decreases set temperature.
  • Page 12 Operation of Remote Controller ress this button to achieve the on and off of healthy and scavenging functions in operation status.Press this button for the first time to start scavenging function; LCD displays“ ”. Press the button for the second time to start healthy and scavenging functions simultaneously;...
  • Page 13 Operation of Remote Controller TEMP: Press this button, could select displaying the indoor setting temperature or indoor ambient temperature.When the indoor unit firstly power on it will display the setting temperature, if the temperature's displaying status is changed from other status to" ",displays the ambient temperature, 3s later or within 3s, it receives other remote control signal that will return to display the setting temperature.
  • Page 14 Operation of Remote Controller Combination of "+" and "-" buttons: About lock Press "+ " and "-" buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, is displayed. In this case, pressing any button, blinks three times.
  • Page 15: Emergency Operation

    Emergency Operation Emergency Operation When the remote controller is lost or damaged, please use the manual switch on the main unit. In that case, the unit will operate in AUTO mode and the temperature setting or fan speed can not be changed. The manual switch can be operated as below: Manual switch Turn on the unit: Press AUTO/STOP button to...
  • Page 16: Care And Cleaning

    Care and Cleaning Caution Disconnect the power supply before cleaning and maintenance. ● Do not splash water on the units for cleaning, as electric shocks may occur. ● Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner (not with ●...
  • Page 17 Care and Cleaning Installation and Maintenance for Healthy filter 1. Press the clasp as shown by arrow (1) to loosen the clasps at the lower end until a sound of “crack” is heard; press the clasp as shown by arrow (2) to open the clasps at the upper end;...
  • Page 18 Make sure the installation support for outdoor unit is in good condition. If it’s damaged, please contact GREE appointed maintenance center. If there is rust on the outdoor unit, please apply some paint to the rusty spot to avoid spreading. BE CAREFUL...
  • Page 19: Troubleshooting

    Troubleshooting CAUTION The air conditioner is not expected to be serviced by users. Incorrect repair may cause electric shock or fire, so please contact an authorized service center for professional service. The following checks prior to contact may save your time and money. Phenomenon Troubleshooting The unit does not operate:...
  • Page 20 Troubleshooting Phenomenon Troubleshooting Is the power cut off? ● The unit can not be started up: Is the power plug loose? applicable) ● Is the circuit protection device tripped off? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
  • Page 21 Troubleshooting Phenomenon Troubleshooting Indoor unit can not blow air: In HEAT mode, when the temperature of indoor ● heat exchanger is very low, air flow is stopped in order to prevent cold air. (Within 2 minutes) In HEAT mode, when the outdoor temperature ●...
  • Page 22: Operation Tips

    Operation Tips Cooling Operation Principle: Air conditioners absorb heat in the room and transmit it to the outdoor unit so that the room temperature is decreased. The cooling capacity will increase or decrease according to outdoor ambient temperature. F reeze Protection: If the unit is operating in COOL mode and in low ambient temperature, frost may form on the heat exchanger.
  • Page 23 Operation Tips Tips for energy saving: Do not overcool or overheat . Setting temperature at a moderate level helps energy saving. Cover windows with a blind or a curtain. Blocking sunlight and air from outdoors is favorable for cooling (heating). Clean air filters once per two weeks.
  • Page 24: Notices For Installation

    Notices for Installation Caution The unit should be installed only by authorized service center according to local or government regulations and in compliance with this manual. Before installing, please contact with local authorized maintenance center. If the unit is not installed by the authorized service center, the malfunction may not be solved due to incovenient contact between the user and the service personnel.
  • Page 25 Notices for Installation Installation Site of Indoor Unit The air inlet and outlet should be away from the obstructions. Ensure the air can be blown through the whole room. Select a site where the condensate can be easily drained out, and where it is easily connected outdoor unit.
  • Page 26 Notices for Installation Earthing Requirements 1. Air conditioner is type I electric appliance. Please ensure that the unit is reliably earthed. 2. The yellow-green wire in air conditioner is the earthing wire which can not be used for other purposes. Improper earthing may cause electric shock. 3.
  • Page 27: Installation Dimension Diagram

    Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for proper ● installation of the unit include the minimum permissible distances to adjacent parts.
  • Page 28: Installation Of Indoor Unit

    Installation of Indoor Unit Installation of Mounting Plate 1. Mounting plate should be installed horizontally. As the water tray's outlet for the indoor unit is two-way type, during installation, the indoor unit should slightly slant to water tray's outlet for smooth drainage of condensate.
  • Page 29 Installation of Indoor Unit Connecting Indoor and Outdoor Electric Wires 1.Open the front panel. 2.Remove the wiring cover and wire clamp.Make the power connection cord pass through the hole at the back of indoor unit. 3.Connect and fix the power connection cord to the terminal board. (As shown in Fig.6) 4.Fix the power connection cord with wire clamp and reinstall wiring cover.
  • Page 30 Installation of Indoor Unit Installation of Indoor Unit External connection The piping can be output from right, right rear, left Gas side piping electric wire ● Liquid side piping or left rear. Tailing 2 When routing the piping and wiring from the left Tailing 1 or right side of indoor unit, cut off the tailings Gas side piping...
  • Page 31: Installation Of Outdoor Unit

    Installation of Outdoor Unit Electric Wiring Remove the handle on the right side plate of outdoor unit. Take off wire clamp. Connect and fix power connection cord to the terminal board. Wiring should fit that of indoor unit. Handle Fix the power connection cord with wire clamp. 09 12K 18K 、...
  • Page 32: Check After Installation And Operation Test

    Check after Installation and Operation Test Check after Installation Items to be checked Possible malfunction Has the unit been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? Is thermal insulation sufficient? It may cause condensation.
  • Page 33: Installation And Maintenance Of Healthy Filter(Optional)

    Installation and Maintenance of Healthy Filter(Optional) Installation of Healthy Filter Lift up the front panel from two ends, as shown by the arrow direction, and (as shown in Fig.a) then remove the air filter. Fig. a Fig. b Attach the healthy filter onto the air filter, Air filter (as shown in Fig.b).
  • Page 34: Configuration Of Connection Pipe And Additional Volume Of Refrigerant

    Configuration of connection pipe and additional volume of refrigerant 1. Standard length of connection pipe 5m、7.5m、8m 2. Min length of connection pipe For the unit with standard connection pipe of 5m, there is no limitation for the min length of connection pipe. For the unit with standard connection pipe of 7.5m and 8m, the min length of connection pipe is 3m.
  • Page 35 Configuration of connection pipe and additional volume of refrigerant Sheet 2. Additional refrigerant charging amount for R22 R407C R410A and R134a Diameter of connection pipe mm Indoor unit throttle Outdoor unit throttle Liquid pipe Gas pipe Cooling only, Cooling only Cooling and cooling and heating (g / m)
  • Page 36 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com...
