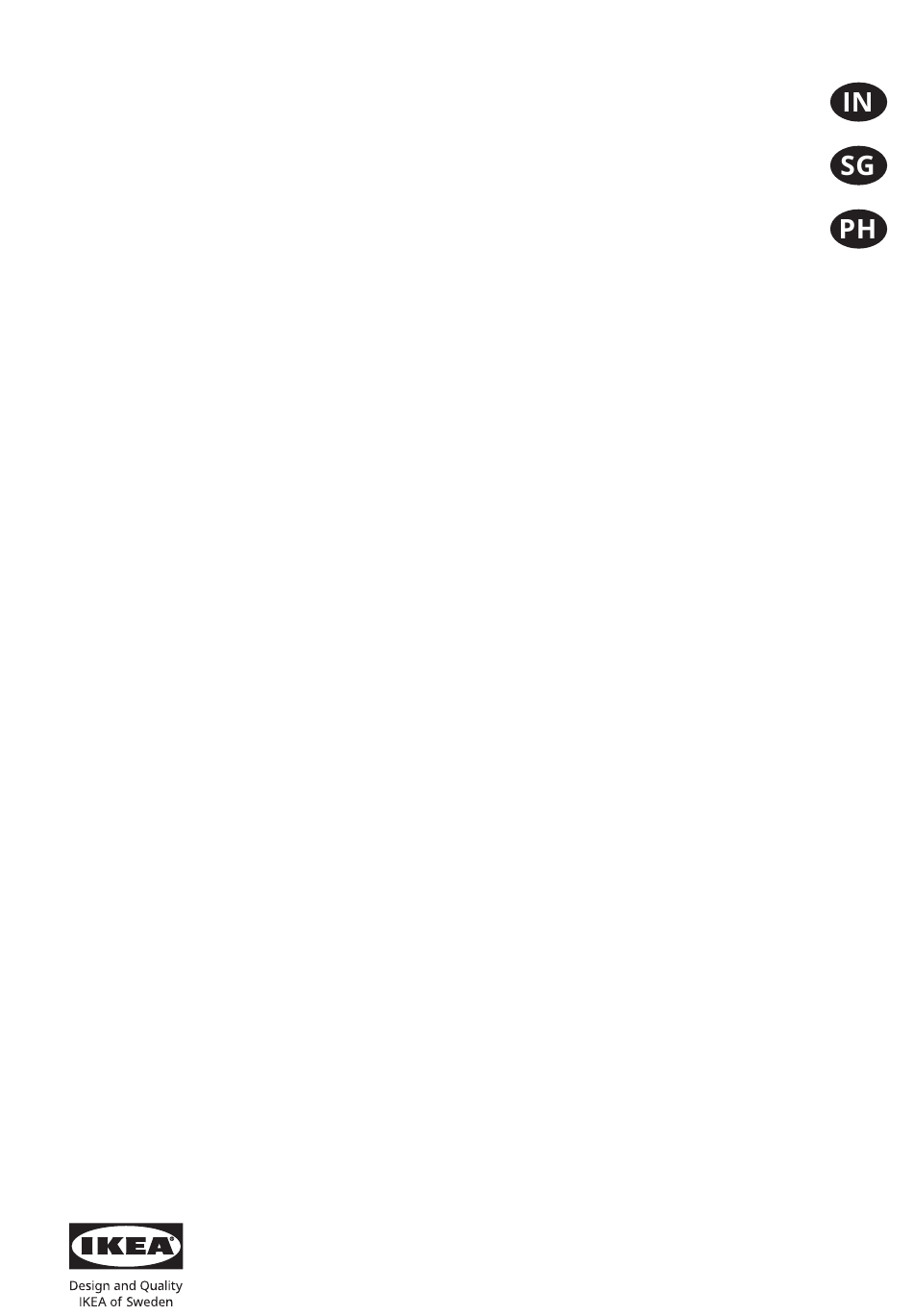

  • Page 1 UNDERVERK...
  • Page 3 Applicable for Indonesia Applicable for Korea Created by Bellucci, Daniele Denomination Lang 1 /1 Sheet Modif.by Approved by Approval date Doc. status Drawing N. DRW0001...
  • Page 4 AA-725532-7...
  • Page 5 Ø 5 mm ø120/125 mm ø150 mm AA-725509-5...
  • Page 6 ENGLISH For the IKEA appointed Authorized Service Centre, please refer to www.IKEA.com and select your local store for phone numbers and opening times...

  • Page 7: Safety Information

    ENGLISH Contents Technical data Safety information Environment concerns Product description IKEA GUARANTEE Care and cleaning What to do if... Safety information For your safety and correct operation of the appliance, read this manual carefully before installation and use. Look carefully at the warning images at the beginning of this manual.
  • Page 8 ENGLISH • For Class I appliances, check that the domestic power supply guarantees adequate earthing. • Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. •...
  • Page 9 ENGLISH • Do not look directly at the light through optical devices (binoculars, magnifying glasses…). • Do not flambè under the range hood; risk of fire. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...

  • Page 10: Recirculation Mode

    ENGLISH Recirculation mode (see symbol • Switch off or unplug the appliance from the mains supply before in installation booklet) carrying out any maintenance work. The air is filtered through one or more • The top of the hood must not to be used min 471 mm the charcoal filters, and then resent into min 569 mm...

  • Page 11: Product Description

    ENGLISH Product description Hood body LED Lighting Grease filter Control panel Control Panel To turn the lights on, press the dial and release it so that it pops out of its housing. Lights To turn the lights off, push the dial back inwards, returning it to the off position.

  • Page 12: General Hints

    ENGLISH General hints • Switch ON the hood at minimum speed when you start cooking and keep it running for few minutes after cooking is finished. • Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
  • Page 13 ENGLISH Grease Filters Clean or replace the filters continuously ac- cording to below time intervals, to maintain good performance of the hood and to prevent a potential fire hazard, caused by excessive grease build-up. The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
  • Page 14 ENGLISH What to do if... If there is a fault, first try to find a solution If you operated the appliance wrongly, to the problem yourself. If you cannot find a or the installation was not carried out solution to the problem yourself, contact an according to the Assembly instructions, the authorized service center.

  • Page 15: Technical Data

    ENGLISH Technical Data Unit Value Product Type Built-in hood Width 599 / 799 Dimensions Depth Height min/max Airflow max* - Exhaust m3/h Noise max* - Exhaust Airflow max* - Recirculating m3/h Noise max* - Recirculating Total Power Type LED BAR Number &...

  • Page 16: Environment Concerns

    IKEA. appliance at IKEA. The original sales receipt is required as proof of purchase. If service What will IKEA do to correct the prob- work is carried out under guarantee, this lem? will not extend the guarantee period for the IKEA appointed Service Provider will exam- appliance.
  • Page 17 • However, if an IKEA appointed Service the IKEA appliance in the dedicated IKEA Provider or its authorized service partner kitchen furniture; repairs or replaces the appliance under • ask for clarification on functions of IKEA the terms of this guarantee, the appoint- appliances.
  • Page 18 Before calling us, assure that You have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance.
  • Page 20 23199 © Inter IKEA Systems B.V. 2021 AA-2278859-3...
