Quick start guide

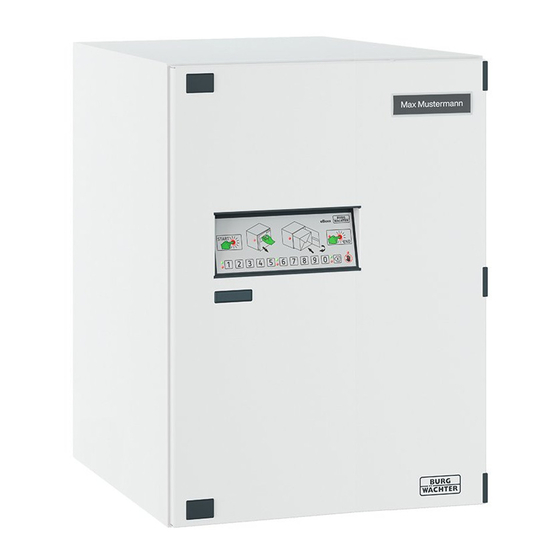

Thank you for choosing a parcel box with the
BURG-WÄCHTER eBoxx EASY+ electronics.
Design
Control panel Emergency lock*
Used for opening in an emergency
"Start" button
Signal LEDs
Initiates the opening process or
opens the parcel box immediately
Delete button
if the box does not contain any
Deletes entered digits
parcels (Empty"status).
Note message, general error
Numeric buttons
The digits "1" – "0" are used for
inputting the code
* Note: Please only remove the
"End button"
cover over the emergency lock if
- Ends the opening process and
you need to open the eBoxx in an
closes the parcel box.
emergency. Opening the parcel
- Status query (occupied/empty)
box using the enclosed key is only
intended for emergencies. This
procedure does not change the
status of the eBoxx and will cause
the unit to malfunction.
eBoxx instructions
Detailed instructions for using the eBoxx, its configuration, the
associated app and notes on setting up the storage location
can be found using the following link:
https://www.burg.biz/bedienungsanleitung-
paketkasten-eboxx-easy-plus/
or directly via the QR code displayed.
BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter
• •
eBoxx status
The electronics adopt different status properties depending on the interaction
with the eBoxx, and these properties have an influence on further operability.
Below is a list of the status options and what they mean.
Note: A status query is performed when the "End" button is pressed.
Details can be found in the chapter "Operation by user" on page 2.
Status Meaning
Empty parcel box is empty and can also be opened without requiring
a code.
Full Parcel box is occupied with at least one parcel and can be opened
using a user or delivery provider code.
Open eBoxx could not be locked automatically due to the child safety
lock and remains unlocked until it is locked manually.
Activation
Germany www.burg.biz BURG-WÄCHTER UK LTD
• •
Note: Please ensure that you are within the Bluetooth range of the eBoxx.
The BURG-WÄCHTER KeyApp is required for commissioning the eBoxx EASY+.
The following steps are necessary to connect the eBoxx with the app:
•
•
•
•
•
•
•
Open the eBoxx by pulling the door
using the recessed grip above the •
keypad. Please remove and retain
all of the documents supplied with
the parcel box, store in a safe and
secure place.
Change administrator code
Note: Please carry out the following settings in the BURG-WÄCHTER KeyApp.
Please ensure that you are within the Bluetooth range of the eBoxx.
Pull out the battery compartment
which is located on the inside of
The first step during commissioning is to change the factory set administrator
the door to the bottom left of the
code to a personal code. Any changes to the administrator code and the
electronics, remove the contact
user code must be made with the door open. Once the locking system has
strip and reinsert the battery
been updated to a new code it must be checked several times keeping the
compartment with the required
door open.
batteries.
An administrator code is required for the administration of the eBoxx. The
administrator code is used, for example, to carry out firmware updates and to
add or delete users. However, the administrator code cannot be used to open
An automatic calibration process
an eBoxx.
starts when the batteries are
•
deposited. All of the LEDs on the
eBoxx illuminate for one second and
•
the eBoxx EASY+ lock is opened and
closed several times. After calibration
the lock is in the "Open" status.
•
Please do not close the door. Perform
the following steps immediately and
with the door open.
Attention: If the door is locked at
this point, it can only be opened
using the emergency lock.
Eurocam Technology Park Chase Way Bradford
• • •
The BURG-WÄCHTER KeyApp is available for download free of charge
from the App Store appropriate for your smartphone. Download and
install the app.
Open the app, read through the licence conditions and confirm with "OK".
You will now be asked to register; please enter the applicable data.
Read and confirm the data protection guidelines and the terms of use
and select "Register".
Note: The BURG-WÄCHTER KeyApp is GDPR compliant. No personal data
is forwarded to BURG-WÄCHTER.
The KeyApp requires access to the camera and Bluetooth functionality
to scan the QR code and connect the eBoxx. Please grant access when
prompted.
Add your eBoxx in the KeyApp by clicking on the "Menu Button" (top left)
and navigating to "eBoxx / eBoxx Setting / eBoxx Units". Press the
(bottom right) and scan the QR code supplied with your eBoxx.
Confirm with "Continue".
Enter any desired name as the name of the box and the administrator
code. The factory set default administrator code is "1-2-3-4-5-6".
Confirm your selection in the KeyApp with the start button
Navigate to "eBoxx / eBoxx settings / Change administrator code" in the
smartphone app, and select the eBoxx.
Enter the previously valid administrator code (default factory set code
"1-2-3-4-5-6") and the new administrator code.
Confirm the new administrator code by repeating the entry and confirm in
the KeyApp with the "Start" button.
West Yorkshire England BD5 8 HW
• •
icon
eBoxx EASY+ | English
