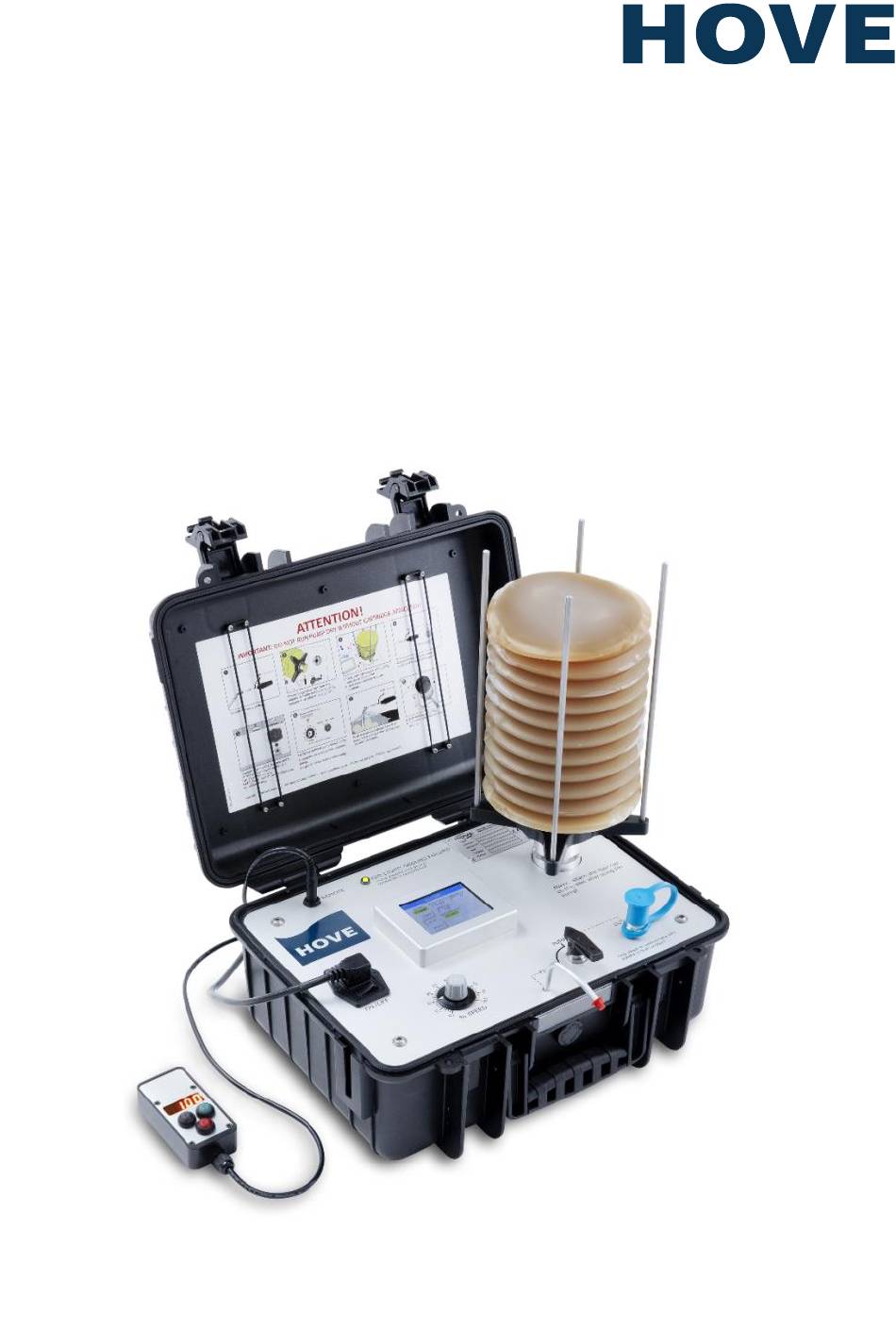

- Page 1 Hove ONE ver. 1 Manual...
-
Page 2: Table Of Contents
Start of manual dosing ....................- 12 - Pausing/aborting ....................- 12 - Empty detection ......................- 12 - Remote Control ......................- 13 - Display ........................- 13 - Push buttons ......................- 13 - Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 1 / 19... - Page 3 Troubleshooting guide ..................- 16 - Disposal ........................- 17 - Technical Data ......................- 17 - EU Declaration of Conformity ..................- 18 - Support, Service, and Repair ..................- 19 - Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 2 / 19...
- Page 4 (G) Control Panel (H) Remote Control Support Pins for Cartridge Indicator LED for Ground Failure Detection (only on models with Ground Failure Detection) (K) Flush Valve (L) Flush Pipe Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 3 / 19...
-
Page 5: General Description Of The Machine

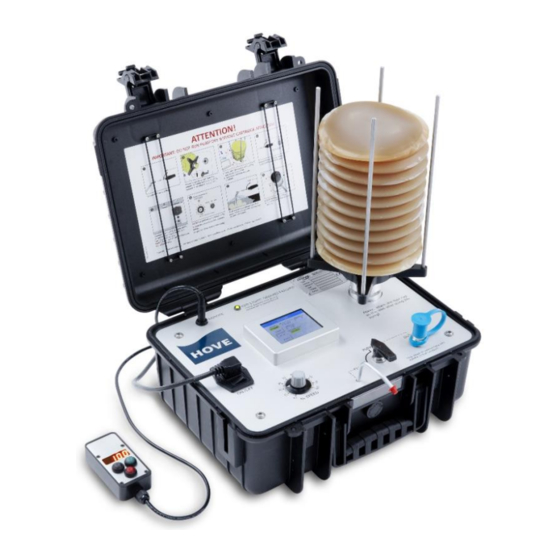

(M) Speed Adjustment Knob General description of the machine Hove ONE ver. 1 is a semi-automatic lubrication pump intended for direct lubrication of bearings. The small size and low weight make the machine the best choice for lubrication tasks in places with ladders and stairs. -
Page 6: On Delivery Of The Machine
• If the machine is equipped with the Hove ground failure detection feature, the high voltage components of the machine will be switched off until a safety earth connection is detected. The PE wire in the power cord must be connected to safety earth. -
Page 7: Daily Use
• Screw the adapter (C) onto a full Hove Grease Cartridge (E) with the desired type of grease. Be sure to screw the adapter sufficiently firm, so the join is airtight. Make sure the grease is fully advanced in the adaptor •... -
Page 8: Operating The Machine
- The SPEED field turns white if the potentiometer setting is higher than the MAX. SPEED setting General Buttons Returns to the previous display screen. Returns to the SYSTEM screen. Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 7 / 19... -
Page 9: Change Settings
- Press to confirm the entered value. Set DENSITY Enter the density of the grease. The decimal point is set automatically after the first digit. Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 8 / 19... -
Page 10: Set Max Speed
START button is pressed again. Set PRESSURE REGULATION Enter the Pressure Regulation setting. - ”0” = Pressure regulation off - ”1” = Pressure regulation on Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 9 / 19... -
Page 11: Set Model
- The SPEED field turns white if the potentiometer setting is higher than the MAX. SPEED setting - The remaining amount of grease is shown in “AUTO (g)” Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 10 / 19... -
Page 12: Pausing/Aborting
- Pressing the AUTO START button will make the pump start and continue from where it left off. - Pressing the AUTO RESET button will abort the current dosing and reset the “AUTO (g)” counter. Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 11 / 19... -
Page 13: Start Of Manual Dosing
“EMPTY”. - Pressing the AUTO/MANUAL START button will start the pump again - Pressing the AUTO/MANUAL RESET button will abort the dosing. Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 12 / 19... -
Page 14: Remote Control
Push buttons The black button starts/stops the pump at automatic dosing. The green button starts/stops the pump at manual dosing. The red button resets the dosing counters Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 13 / 19... -
Page 15: Automatic Dosing
Regular inspection and maintenance of the machine helps to ensure smooth operation. Always clean the Hove ONE after use. Check regularly the O-ring at the bottom of the adapter thread for wear and tear. Check regularly the O-ring at the cartridge locking mechanism for wear and tear. -
Page 16: In The Event Of Damage To The Machine
Once a year, check the pump as to correct measuring (check that the density factor is set correctly in the display for the lubricant used for control). Pump a certain amount and check the weight. If the weight is not correct, we recommend you to contact Hove A/S to have the flow meter checked. -
Page 17: Troubleshooting Guide
Set the speed adjustment knob to 100% and flush until pure grease comes out of the flush pipe(L) • Stop the pump and turn the flush valve to pump position Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 16 / 19... -
Page 18: Disposal
68-1500 ml/min • 2,3-50,73 oz/min Operation • Semi-automatic Controller • Hove Electronic Controller Repeatability • +/- 1 % Sound Pressure Level • 58 dB(A) Power Consumption • Max. 1300 W Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 17 / 19... -
Page 19: Eu Declaration Of Conformity
- Electrical, thermal and energy EN 60204-1:2018 - Safety of machinery - Electrical equipment of machines - General requirements EN 60990:2016 - Methods of measurement of touch current and protective conductor current Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 18 / 19... -
Page 20: Support, Service, And Repair
Hove Service Center Herstedoestervej 7 2600 Glostrup Denmark Phone: +45 61 71 22 83 Whatsapp: +45 61 71 22 83 Email: repairs@hove-as.dk Website: www.hove-as.dk Other service centers are listed at ww.hove-as.dk Hove ONE ver. 1 Manual 2021-03-01 Rev. 1.0 19 / 19...
