Summary of Contents for Hove HOVE REFILLER v2

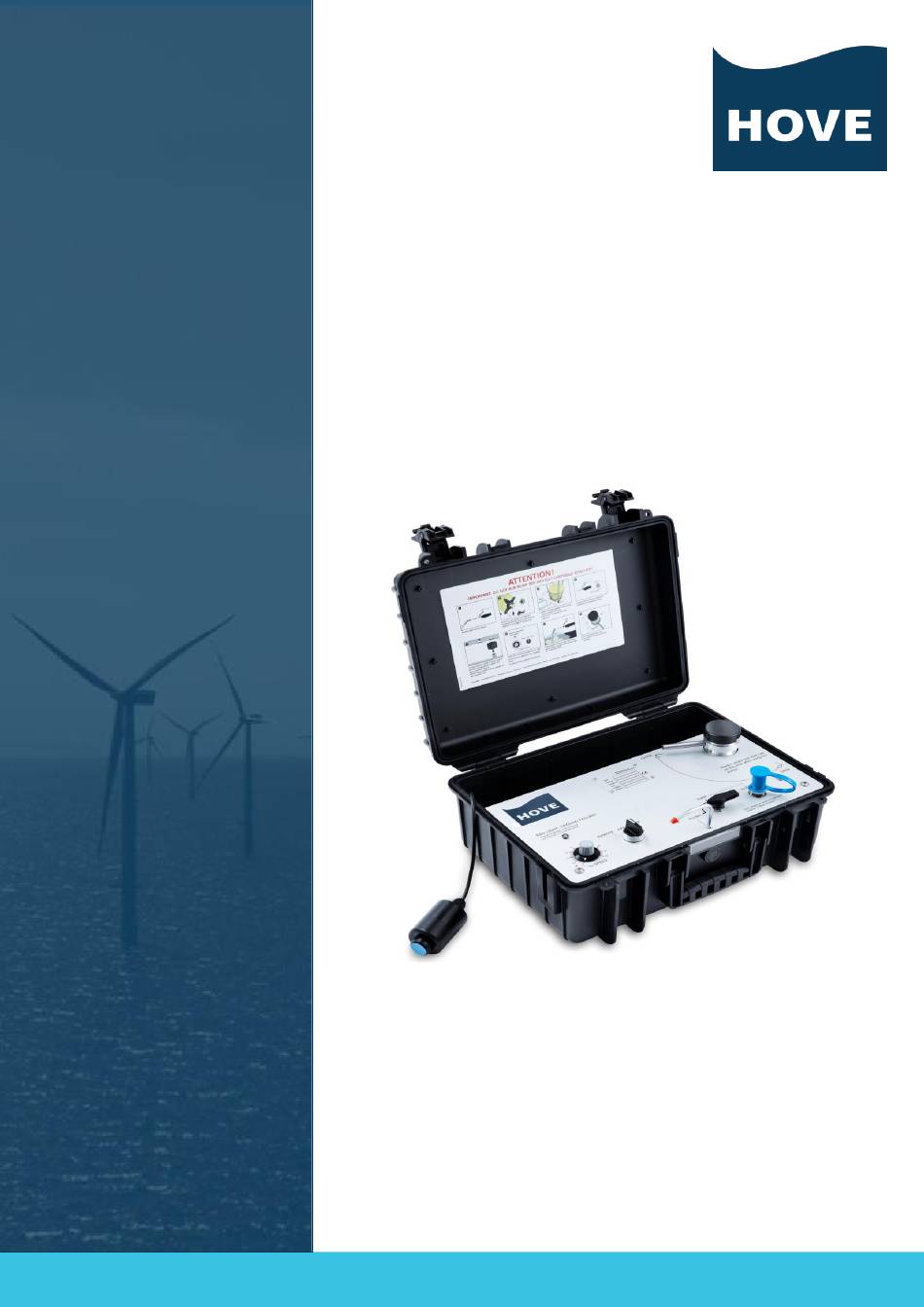

- Page 1 Manual HOVE REFILLER v2 © Hove A/S January 2022...
-
Page 2: Table Of Contents
TECHNICAL DATA ……………………………………………………………………………………………………. - 9 - EU DECLARATION OF CONFORMITY ………………………………………………………………………… - 10 - IN-SERVICE INSPECTION & TESTING OF ELECTRICAL EQUIPMENT …………………………… - 11 - - 11 - ACCEPTANCE LIMITS ………………………………………………………………………………………………………… SUPPORT, SERVICE, AND REPAIR ……………………………………………………………………………. .- 12 - © Hove A/S... - Page 3 Indicator LED for Ground Failure Detection c. Grease Cartridge Adapter (only on models with Ground Failure Detection) d. Lock Lever (only on models with low viscosity adapter) Flush Valve e. Hove Grease Cartridge Flush Pipe m. Speed Adjustment Knob f. Hose Connection Flush Kit g.
-
Page 4: General Description Of The Machine

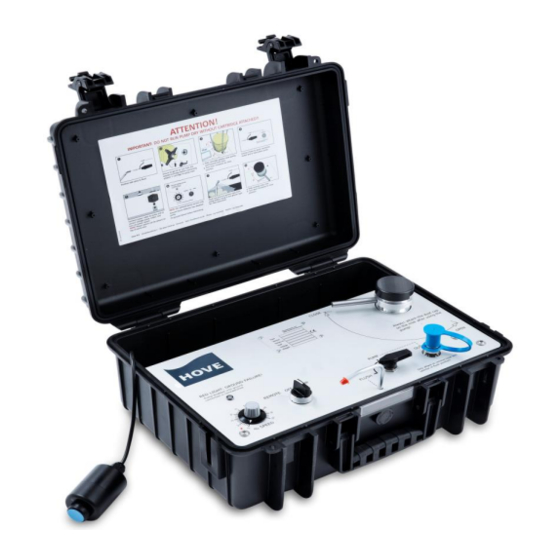

The small size and low weight of this machine make it the best choice for refilling central lubrication systems in places with ladders and stairs. Hove Refiller can be operated by means of a switch at top panel of the machine or by a remote control. INTENDED USE Hove Refiller can be used for refilling central lubrication systems in any industry. -
Page 5: When Using The Machine For The First Time
On models with cartridge push on coupling: • Pull off the dust cap • Screw the grease cartridge adapter (C) onto a full Hove Grease Cartridge (E) with the desired type of grease. Be sure to screw the adapter sufficiently firm, so the join is airtight. -
Page 6: Daily Use
• Close the Hove Refiller. Make sure that the lid is closed correctly. OPERATING THE MACHINE The Hove Refiller can be operated by the control switch (G) at the machine. or by means of a remote control (H). Setting is done by turning the switch to one on the positions: “OFF”, “PUMP”, or “REMOTE”. -
Page 7: In The Event Of Damage To The Machine
IN THE EVENT OF DAMAGE TO THE MACHINE WARNING Unless agreed otherwise, only HOVE A/S may carry out repairs and alterations to the machine. Worn or defective parts must be replaced by original spare parts. Incorrect repairs or use of non-original spare parts can lead to serious damage to the machine and danger to the user. -
Page 8: Troubleshooting Guide
• Set the speed adjustment knob to 100% and flush until pure grease comes out of the flush pipe(L) • Stop the pump and turn the flush valve to PUMP position © Hove A/S... -
Page 9: Disposal
• Up to 1800 g/min, depending on lubricant • Up to 63.49 oz/min, depending on lubricant Operation • Semi-automatic LpA Sound Pressure Level • 58 dB(A) Power Consumption • Max. 1300 W Cartridges • 1.5, 3, and 5 kg © Hove A/S... -
Page 10: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Hove Refiller ver. 2 is in conformity with: Directive 2014/30/EU - Electromagnetic Compatibility (EMC) Directive 2014/35/EU - Low voltage (LVD) Directive 2006/42/EC - Machinery (MD) Directive 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS) -
Page 11: In-Service Inspection & Testing Of Electrical Equipment
• Touch current must be measured when the pump is switched on and running (direct measurement) • The measurement must be performed with the mains plug polarized in both directions • Touch current ITOUCH must be <= 0,5 mA RMS © Hove A/S... -
Page 12: Support, Service, And Repair
Technology with Ingenuity Hove A/S is a Danish-owned company that was founded in 2000 and has grown significantly since. Hove A/S has its own production and development departments. We sell and develop: • Specially designed pumps • Dosing units • Fittings •...
