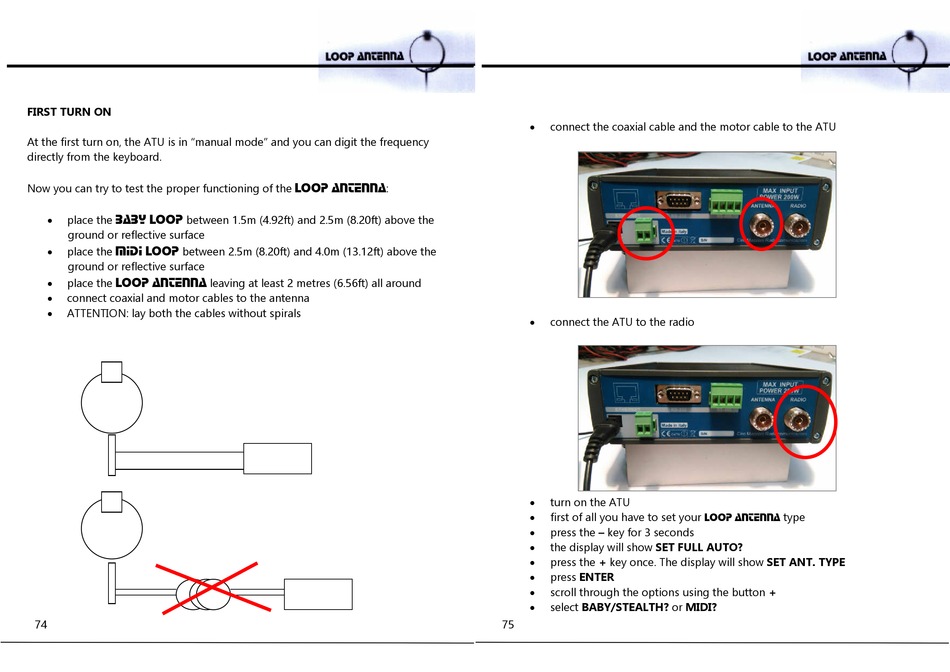

FIRST TURN ON

At the first turn on, the ATU is in "manual mode" and you can digit the frequency
directly from the keyboard.
Now you can try to test the proper functioning of the
BABY LOOP
place the between 1.5m (4.92ft) and 2.5m (8.20ft) above the

ground or reflective surface
MIDI LOOP
 place the between 2.5m (8.20ft) and 4.0m (13.12ft) above the
ground or reflective surface
LOOP ANTENNA
place the

connect coaxial and motor cables to the antenna

ATTENTION: lay both the cables without spirals

74
LOOP ANTENNA
:
leaving at least 2 metres (6.56ft) all around
connect the coaxial cable and the motor cable to the ATU

connect the ATU to the radio

turn on the ATU

first of all you have to set your LOOP ANTENNA type

press the – key for 3 seconds

the display will show SET FULL AUTO?

press the + key once. The display will show SET ANT. TYPE

press ENTER

scroll through the options using the button +

select BABY/STEALTH? or MIDI?

