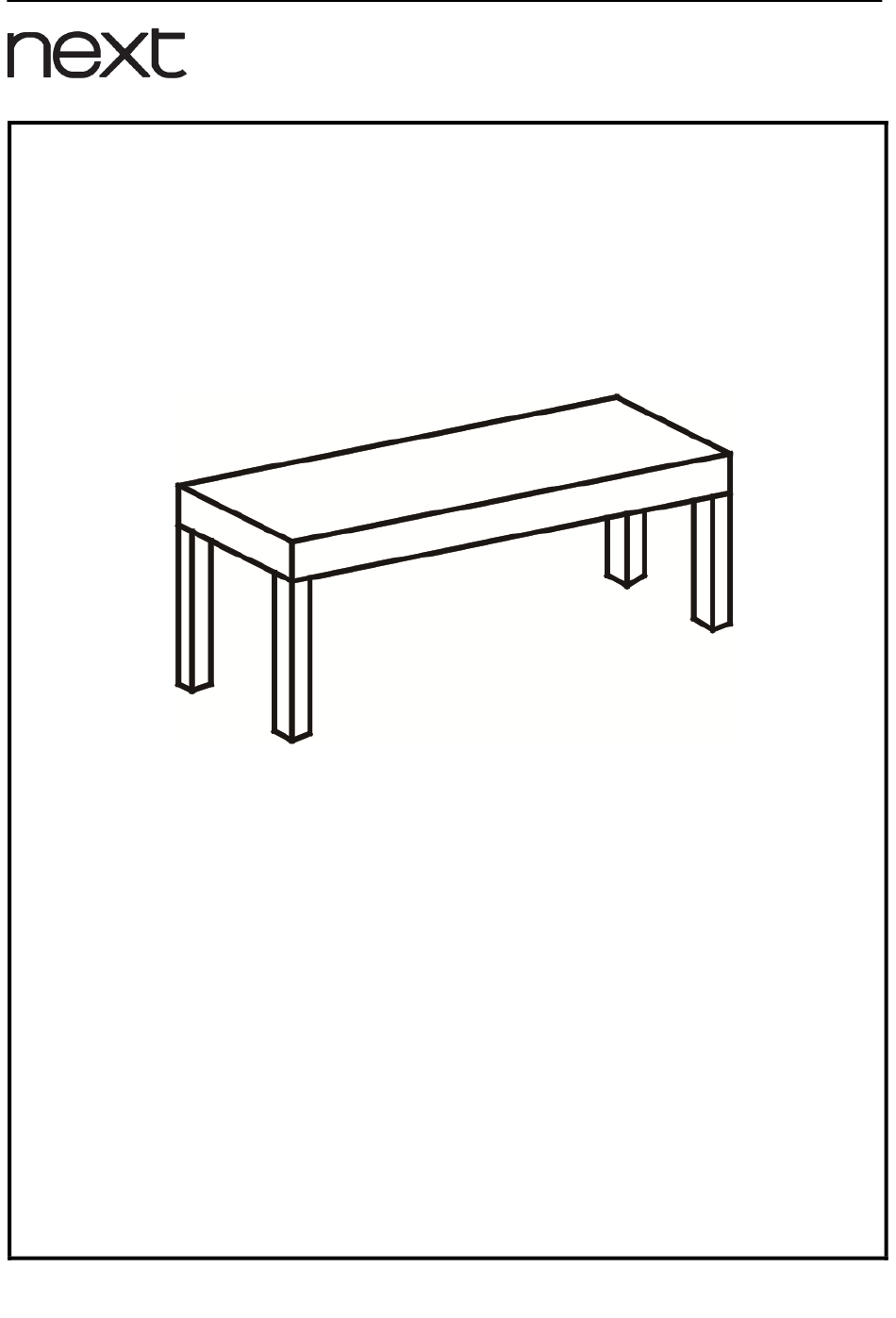

- Page 1 672531 Assembly instructions Actual Product Size L130 x W35 x H45cm Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd. 672531-2014-V1 ...
- Page 2 Do not use abrasive cleaners, strong detergents, bleach, Home Customer Services acid or solvents on the frame parts. Next Retail Ltd, Desford Road, Leicester, LE19 4AT To View our full furniture range please visit www.next.co.uk Produced in China for Next Retail Ltd. 672531-2014-V1 ...
- Page 3 GETTING TO KNOW YOUR PRODUCT Components supplied. Please use this guide if you require replacement parts. Dimensions Diagram Dimensions Diagram 130 x 35cm 4.7 x 4.7cm 36 x 5.5cm M8 x 340cm Dia4.8 x 2.7cm Produced in China for Next Retail Ltd. 672531-2014-V1 ...
- Page 4 Locate the assembly parts. Place the Bench Legs (2) onto the Protruding Parts under the bottom side of the Bench Panel (1). Make sure they match each other. Produced in China for Next Retail Ltd. 672531-2014-V1 ...
- Page 5 Once you are satisfied with alignment of all components, tighten the Connecting Rods (3) with Socket Spanner (6). Cover all Table Leg Ends with Leg Caps (4). Attach the adjustable feet screw (7) to the Leg Caps. Produced in China for Next Retail Ltd. 672531-2014-V1 ...
- Page 6 Turn over the Bench and place it on the flat ground. Make sure there is no wobbling by adjusting the feet screw when the Bench Is placed on the flat ground. Your Bench is now ready for use. Produced in China for Next Retail Ltd. 672531-2014-V1 ...
