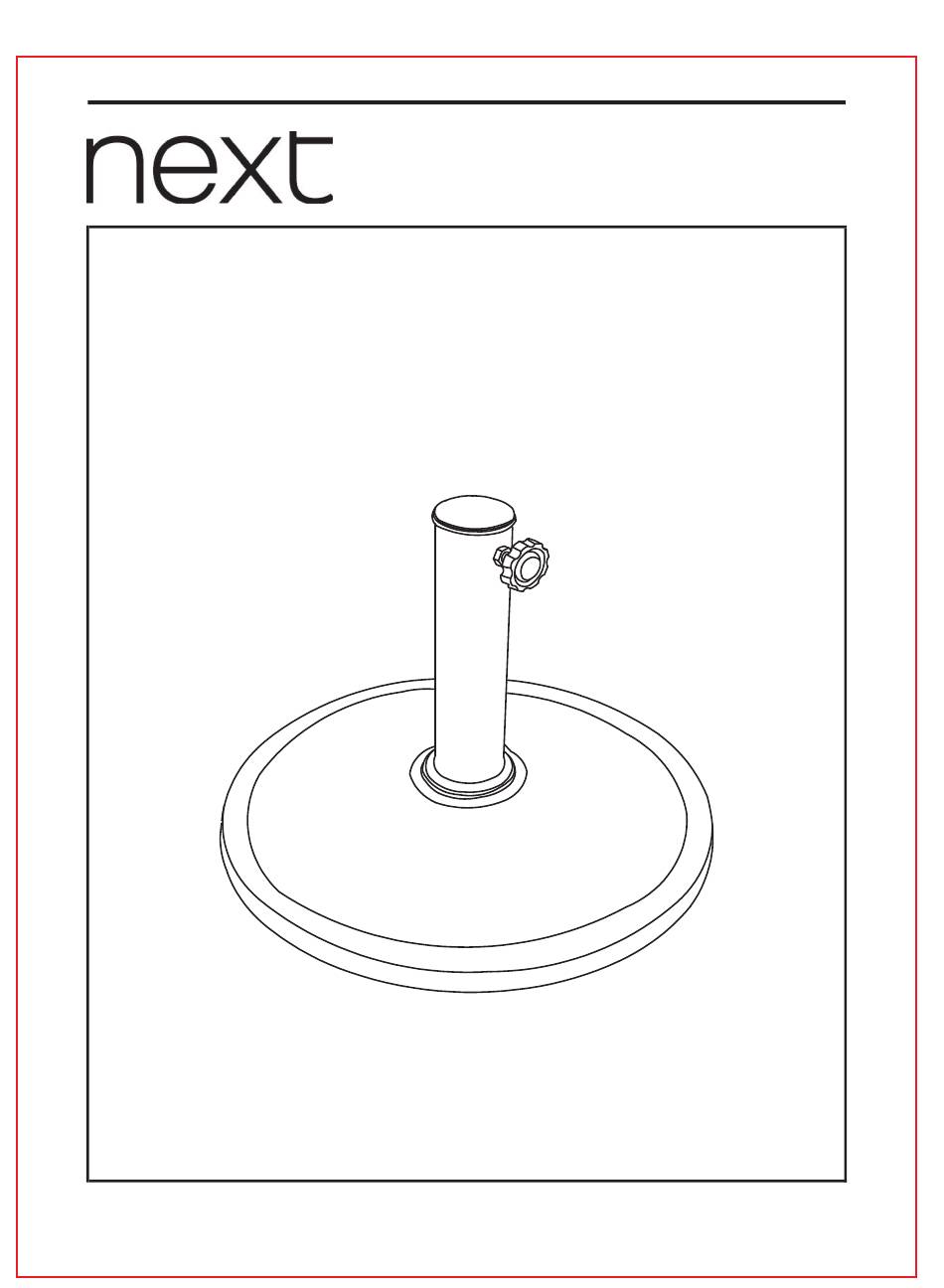

21x28.5cm Parasol Base 394304 Assembly instructions Actual product size Dia.44.5 x H 33cm Need Help? With:Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT-RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd...
Do not use this product if parts are missing, damaged or worn. Never use scourers, abrasives or chemical cleaner. To View our full furniture range please visit www.next.co.uk Never use a pressure hose or washer to clean the product. Never drag furniture when moving it, always lift it.
Components supplied. Please use this guide if you require replacement parts. B X1 C X1 A X1 E X1 D X1 F X1 I X1 H X1 G X1 SPRING K X1 J X1 SPANNER Produced in China for Next Retail Ltd...
Page 4
21x28.5cm Parasol Base 394304 Assembly instructions Fixtures and fittings Supplied (actual size) ***Extra Dimensions Fittings Produced in China for Next Retail Ltd...
Page 5
Note:Please assemble the toppest one first,then from up to down for others E X 1 Dia.74mm G X 1 Dia.21mm I X 1 M10 x 65mm H X 1 Dia.16.5mm 17X25.5X75mm K X 1 J X 1 Dia 40.5mm Produced in China for Next Retail Ltd...
Page 6
21x28.5cm Parasol Base 394304 Assembly instructions ¢ 44.5cm Produced in China for Next Retail Ltd...
