Summary of Contents for Next 693096

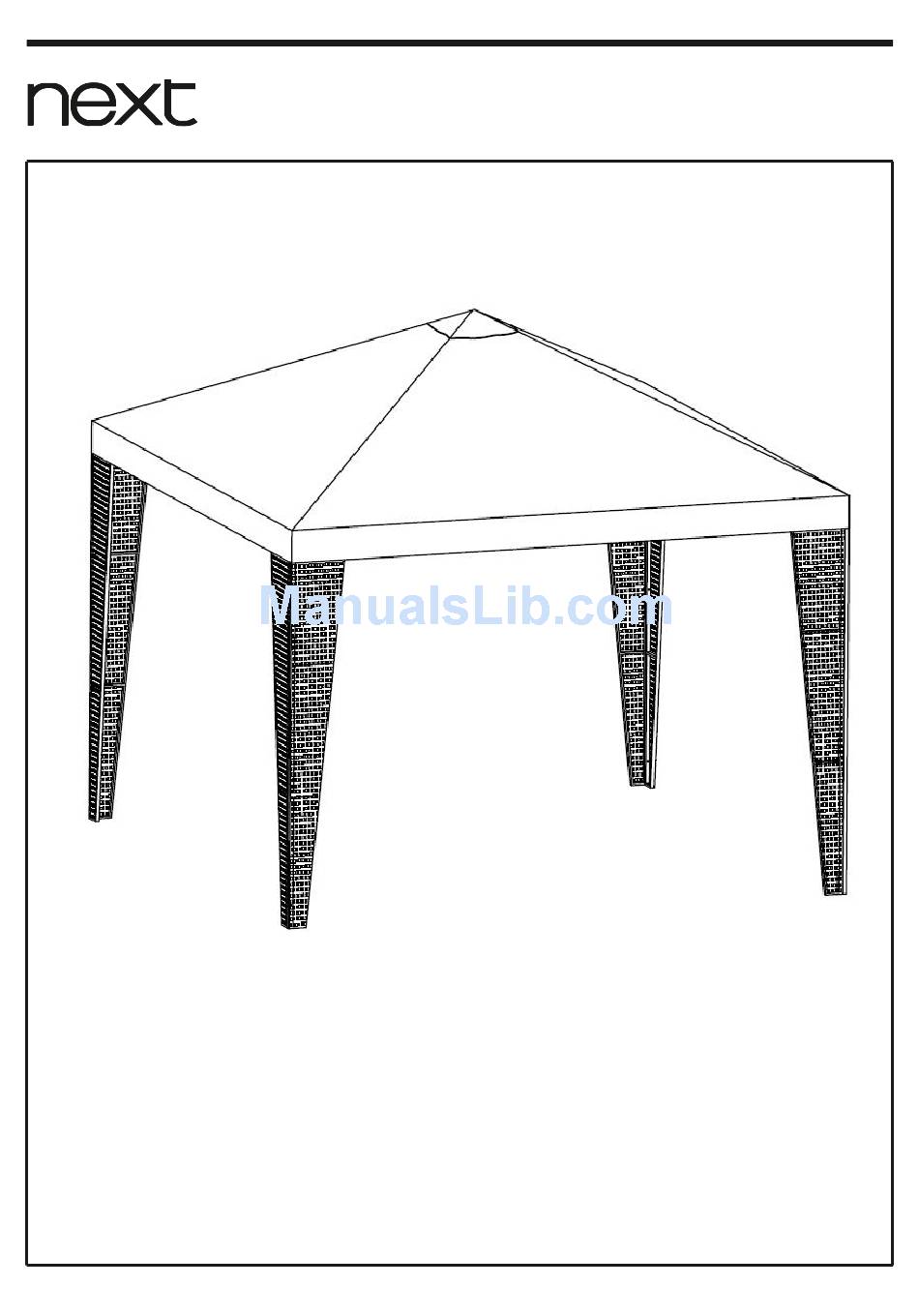

- Page 1 Rattan Gazebo Grey 693096 Assembly instructions Actual Product Size H2.5 x W2.5 x L2.5m Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd. 693096-2014-V1...
- Page 2 During bad weather and winter months the product should be dismantled where possible and stored in a cool dry place. To View our full furniture range please visit www.next.co.uk Do not use siliconebased furniture polish. Produced in China for Next Retail Ltd.
- Page 3 Rattan Gazebo Grey 693096 Assembly instructions GETTING TO KNOW YOUR PRODUCT Components supplied. Please use this guide if you require replacement parts. Visual Visual Produced in China for Next Retail Ltd. 693096-2014-V1...
- Page 4 (actual size) Dimensions M6x10 M6x18 M6x28 M6x52 M6x 38 Fixtures and fittings supplied (not to scale) Product Visual Washers, Nuts and Caps Quantity M6 Washer M6 Nuts Spanner M6 Caps Allen Key ROPE Produced in China for Next Retail Ltd. 693096-2014-V1...
- Page 5 Part ( H).Add M6 washers and M6 nuts and tighten with Spanner ( Q) and Allen key (R ). Place M6 caps onto the nuts. Repeat to construct the other three crossbars Produced in China for Next Retail Ltd. 693096-2014-V1...
- Page 6 Revert back to all M screws in step 5 & 6 and tighted with Allen key (R) and Spanner (Q). Place M6 caps onto the nuts. Produced in China for Next Retail Ltd. 693096-2014-V1...
- Page 7 Step 8: Tighten the rope on the corner of canopy(J) secure the other end of rope to the peg(pushing the peg into ground). Repeat on other three corners. Produced in China for Next Retail Ltd. 693096-2014-V1...
