Summary of Contents for Smeg KSEU912X

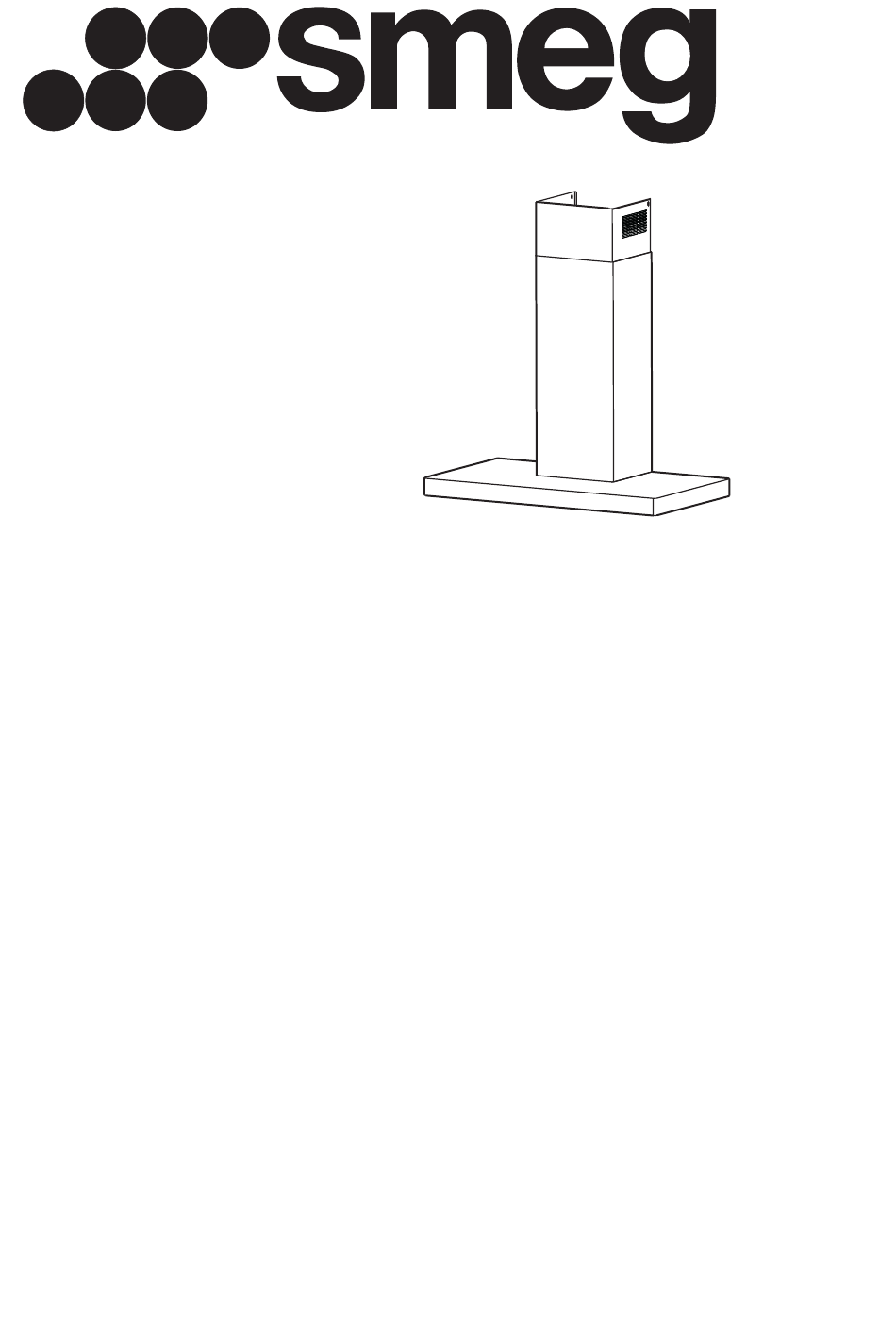

  • Page 1 Manuel d’Instructions Instructions Manual Manual de instrucciones Libretto Istruzioni KSEU912X...
  • Page 2: Table Of Contents

    INDEX WARNINGS AND REQUIREMENTS ............................ 3 RECOMMENDATIONS AND SUGGESTIONS ........................6 DIMENSIONS and MAIN PARTS ............................7 INSTALLATION ..................................8 USE ...................................... 11 CARE ....................................12...
  • Page 3: Warnings And Requirements

    READ AND SAVE THESE INSTRUCTIONS The Installer must leave these instructions with the homeowner. The homeowner must keep these instructions for future reference and for local electrical inspec- tors’ use. READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: Never leave surface units unattended at high settings.
  • Page 4 W A R N I N G • Venting system MUST lead the air outside the building. • DO NOT expel the air through a ductwork in an attic or other enclosed space. • DO NOT use 4" laundry-type wall caps. •...
  • Page 5 WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes And Standards, In- cluding Fire-Rated Construction. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting.
  • Page 6: Recommendations And Suggestions

    RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. According- ly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incor- rect or improper installation.
  • Page 7: Dimensions And Main Parts

    DIMENSIONS and MAIN PARTS Dimensions 5" 1/8 2" 7/16 12" 35" 3/8 Components 14.1 Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters 12a 7.2.1 11 Telescopic Chimney comprising: Upper Section Lower Section Right Air Outlet Grill Aria Left Air Outlet Grill Aria Damper 14.1...
  • Page 8: Installation

    INSTALLATION Wall drilling and bracket fixing ÷1/16" 7.2.1 4"9/16 4"9/16 Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the center of the area in which the hood will be installed. •...
  • Page 9 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten support screws 12a. • Adjust screws Vr to level the hood body. Note: The Hood body should be secured to wall studs.
  • Page 10 ELECTRICAL CONNECTION • Remove the cover from the Field Wiring Compartment with a Green Ground wire phillips screwdriver. Ground screw • Feed the Power Supply Cable through the electrical knockout. Power supply cable Connect the Power Supply Cable to the range- hood cable. At- tach the Power Supply Cable grounding lead to the green screw provided.
  • Page 11: Use

    Control board Function Display Switches the motor on/off at the latest selected speed Indicates the selected speed Decreases the suction speed. Increases the suction speed. By pressing this key it is possible to start the intensive HI and the remaining time appear alternately. speed from any previously selected speed.
  • Page 12: Care

    CARE Metal grease filters Filters can be washed in the dishwasher. They need to be washed when FG-sign appears on the display or in any case every 2 months, or even more frequently in case of particularly intensive use of the hood. Alarm reset •...
  • Page 13 Charcoal filter (ductless version) This filter cannot be washed or regenerated. It has to be replaced when the FC appears on the display or at least once every 4 months. Activation of the alarm signal • In the recycling version hoods the filter saturation alarm has to be activated during the in- stallation or later.
