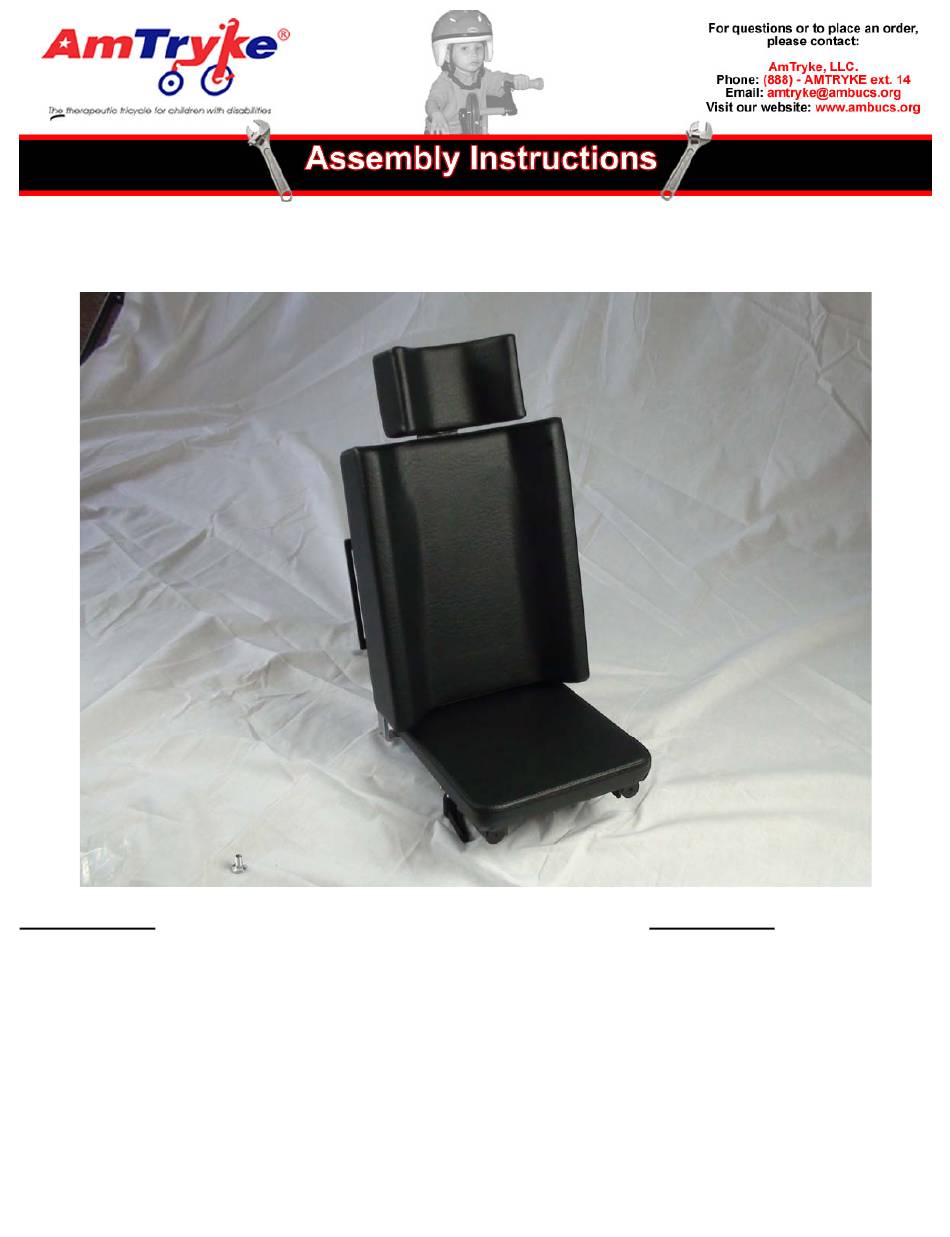

AmTryke Snappy Seat #30-1500
This seat may be used on the Snappy Tricycle (#50-0150), AM-9 models (#50-0102) and AM-12 (#50-0210 using
special mounting bracket #30-1503)
Carton Contents
Tools Required
1-Padded seat back
1-Seat Belt
1-5/32 Allen Wrench
1-Padded head rest
1-Metal seat bracket
1-Padded seat
2-Threaded seat knobs
Revise Date: 6/24/09
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for AmTryke 30-1500
Summary of Contents for AmTryke 30-1500
- Page 1 AmTryke Snappy Seat #30-1500 This seat may be used on the Snappy Tricycle (#50-0150), AM-9 models (#50-0102) and AM-12 (#50-0210 using special mounting bracket #30-1503) Carton Contents Tools Required 1-Padded seat back 1-Seat Belt 1-5/32 Allen Wrench 1-Padded head rest...
- Page 2 1) Attach the padded head rest to the padded back by using four Allen screws and four flat washers as shown. Use a 5/32 Allen wrench to tighten. 2) Attach the metal seat bracket to the back side of the padded back using four Allen screws and four flat washers as shown.
- Page 3 5) Attach the seat belt by using one lag bolt and one wing nut on each side as shown. Step 2 Step 3 6) Attach seat belt center strap with one Allen screw and a flat washer to bottom of padded seat as shown.
- Page 4 Snappy Seat Parts Padded seat back Padded Head Rest Threaded seat knobs Seat Belt & Center Strap Padded Metal Seat Seat Bracket Mounting Hardware Additional Accessory Parts used on Snappy Seat Small Laterals - #30-1501 Large Laterals - #30-1502 H-harness – #30-0336 - 11.5-inch H-harness - #30-0337 –...
