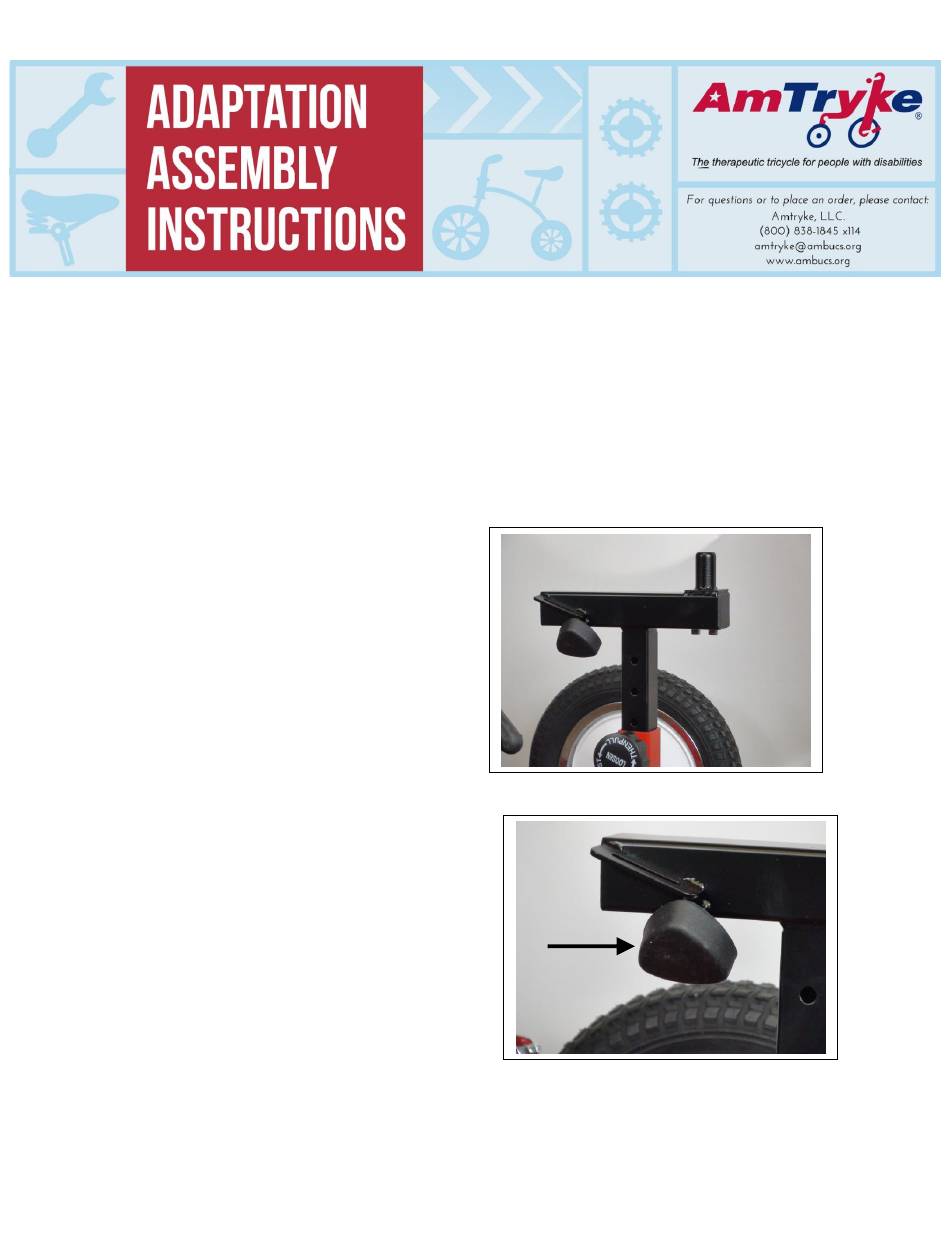

AmTryke 30-13-1400 Adaptation Assembly Instructions

Fits all standard Seat Posts except AM-10/Snappy – use seat post #30-13-1402 for those models
1) Remove old seat back and seat post if this is
an upgrade to the seating system.
2) Install seat post 30-13-1402 if needed. Make
sure that seat post is pointed toward the front
of the trike. It is easier to install the saddle
before mounting seat post on the bike.
3) Loosen the black knob located on the seat post.
This will allow the double seat back support to
slide into the bracket.
Revise Date: 4/16/2016
n:\amtryke\manuals and instructions\accessories\1400 seat back\1400 seat back system.doc
1400 SEAT BACK SET
Part #: 30-13-1400
What's inside:
Two Padded Lateral Supports with chest strap
Double Seat Back Support Rods
Two lateral support brackets with cam lock levers
1 of 5
