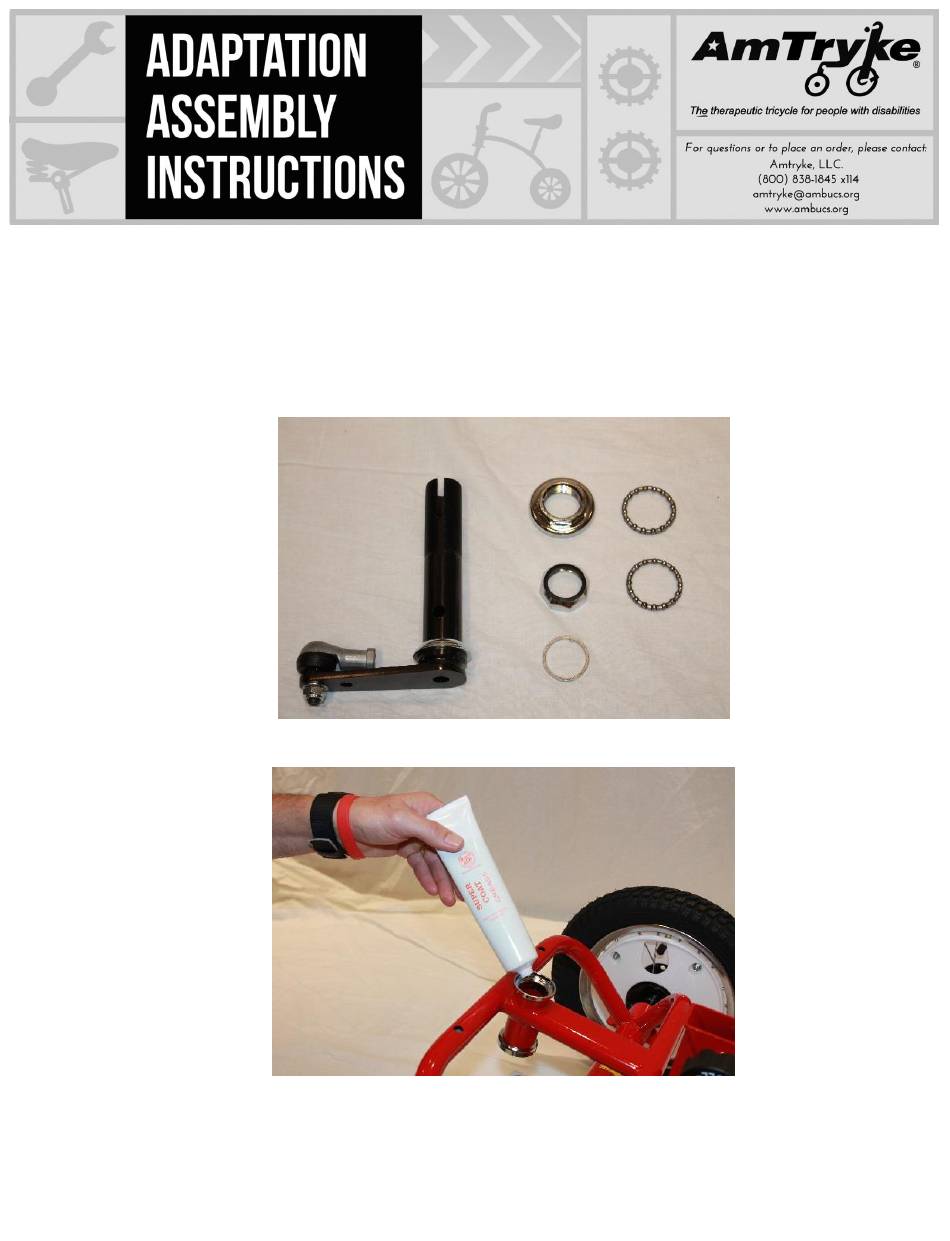

ProSeries 1412 Rear Steer Kit
Part #: 30-50-1512
Tools Needed: 10mm wrench or socket, 13mm wrench or socket, 6mm Allen/Hex wrench.
Rear Steering Kit Instructions (skip this section if you are not installing the rear steering kit).
1) Installation of the rear steering shaft.
2) Remove dust cap from top of rear steering support tube.
3) Apply grease to upper and lower race.
4) Install the steering shaft.
5) Insert one of the bearing sets so that the ball bearings face up.
Revised: 7/7/2016
n:\amtryke\manuals and instructions\accessories\rear steering kits\rear steering kit 1412.docx
Advertisement
Table of Contents
Related Manuals for AmTryke 1412 Pro Series
Summary of Contents for AmTryke 1412 Pro Series
- Page 1 2) Remove dust cap from top of rear steering support tube. 3) Apply grease to upper and lower race. 4) Install the steering shaft. 5) Insert one of the bearing sets so that the ball bearings face up. Revised: 7/7/2016 n:\amtryke\manuals and instructions\accessories\rear steering kits\rear steering kit 1412.docx...
- Page 2 6) Insert shaft through steering tube and seat into lower race. 7) Install remaining bearing set into the upper race – ball bearings face down. 8) Thread adjustable race onto the steering shaft. Hand tighten to remove excess play, but allow easy turning. 9) Discard plastic seal for this application.
- Page 3 15) Finish the installation by tightening the two Allen screws in the cinch collar. 16) Resume normal assembly in the instructions on page 8 in the handle bar section. Questions or Concerns Regarding your Build? No problem! Please Contact Derek Shaw, AmTryke Technical and Customer Support Coordinator @ 1-800-838-1845 x114 or dereks@ambucs.org...
