FRANCO BELGE e-Ubinas Owner's Manual

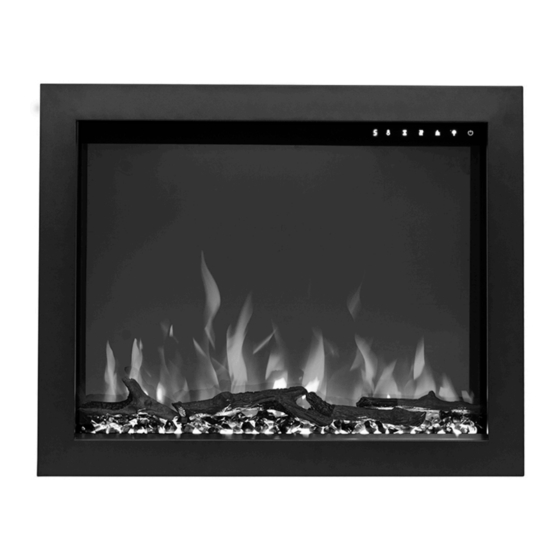

Fully recessed 29" built-in electric fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

FULLY RECESSED ELECTRIC FIREPLACE
Item Name: e-Ubinas
Model# : 190 0004
OWNER'S MANUAL
29" Built-in Electric Fireplace
AC 220-240V 50Hz 1400-1600W
Read and understand this entire owner's manual, including all safety
WARNING
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-Ubinas and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FRANCO BELGE e-Ubinas

Summary of Contents for FRANCO BELGE e-Ubinas

  • Page 1 FULLY RECESSED ELECTRIC FIREPLACE Item Name: e-Ubinas Model# : 190 0004 OWNER’S MANUAL 29” Built-in Electric Fireplace AC 220-240V 50Hz 1400-1600W Read and understand this entire owner’s manual, including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this fireplace!  DO NOT operate any fireplace with a damaged cord or plug or after the fireplace malfunctions, has been dropped or damaged in any manner. Discard fireplace, or return to authorized service facility for examination and/or repair.

  • Page 3: Parts And Hardware

     ALWAYS check your fireplace cord and plug connections with each use! i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs can cause the outlet to overheat. ii) fireplaces draw more current than small appliances. Overheating may occur even if it has not occurred with the use of other appliances.

  • Page 4: Installation And Assembly

    Parts and hardware C – Drywall Anchors B – Wood Screws E - Decorative Dark Crystals D - Decorative Dark Crystals A – Fireplace (big) (small) F - Drift Log Piece RC - Remote Control Installation and Assembly Step 1. Find a safe location. Front View of Fireplace Minimum clearance on each side: 19.7”...

  • Page 5: Installation

    Installation STEP 1. Select a dry wall to open a hole for fireplace box. Size of holes as below chart Model No. e-Ubinas 26.6” 22.4” 8.1” Figure ( A )
  • Page 6 STEP 2. Place the fireplace to a soft clean place. Use the screw driver to take off the TWO screws in both sides. Pull the trim up and take it out of the firebox. Figure (B) Figure ( B ) STEP 3.
  • Page 7 STEP 4. Have two people lift the fireplace box and put it into the hole. Fix the FOUR wall screws in each side of the fireplace box. Figure (D) Figure ( D ) STEP 5. Place the decorative crystals and drift log pieces on the designed slot and keep them even.

  • Page 8: Methods Of Operation

    Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 220~240 Volt 10 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 9 Touch Panel Operation BUTTON FUNCTION ACTION & INDICATION Power Turns the fireplace on/off. Controls flame brightness. Settings: F4-Brightest flame(default) F3-Bright flame FLAME F2-Medium flame F1-Small flame F0-Flame off Changes the color of the flame effect. Settings: Orange COLOR Blue Orange & Blue Turns the heater and blower on/off.
  • Page 10 Controls the timer. Settings: 30min TIMER Controls the temperature. Settings: 64℉ [18℃] 66℉ [19℃] 68℉ [20℃] 70℉ [21℃] TEMPERATURE 72℉ [22℃] 74℉ [23℃] 76℉ [24℃] 78℉ [25℃] 80℉ [26℃] 82℉ [27℃] 84℉ [28℃] 86℉ [29℃] 88℉ [30℃] and OFF Note: To change temperature format from Fahrenheit to Celsius or vice versa, press and hold the temperature button for 5 seconds.
  • Page 11 Remote Control Operation BUTTON FUNCTION ACTION & INDICATION Turns the fireplace on/off. POWER Controls flame brightness. Settings: BLUE FLAME F4-Brightest flame F3-Bright flame F2-Medium flame F1-Small flame ORANGE FLAME F0-Flame off Turns the heater and blower on/off. Settings: HO-Heater and blower off bL-Blower on HEATER H1-Low heat...
  • Page 12 Controls the speed of the flame. Settings: FLAME SPEED 01-slow 02-medium 03-fast Controls ember bed light settings. Settings: 01-Orange (default) 02-Red 03-Blue 04-Yellow 05-Green 06-Purple 07-Azure EMBER BED COLOR 08-Carmine 09-White 10-Auto-cycle through orange, red, blue, yellow, green, purple, azure, carmine, white. (NOTE: It will take 7 seconds to switch between colors.) 11-Lock to the desired color 12-Ember bed light off...
  • Page 13 Controls the temperature. Settings: 64℉ [18℃] 66℉ [19℃] 68℉ [20℃] 70℉ [21℃] 72℉ [22℃] 74℉ [23℃] 76℉ [24℃] 78℉ [25℃] TEMPERATURE 80℉ [26℃] 82℉ [27℃] 84℉ [28℃] 86℉ [29℃] 88℉ [30℃] and OFF Note: To change temperature format from Fahrenheit to Celsius or vice versa, press and hold the temperature button for 5 seconds.
  • Page 14 TIMER SETTINGS ON REMOTE CONTROL Timer: Press to enter timer settings. Confirm: Press to confirm timer settings. Delete: Press to clear timer settings. Up/Down: Press to go up and down. Weekday: Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday Note: The functions can only be Timer display: adjusted when the related letters or Current Time / Timer From 00: 00 to...
  • Page 15 1. Set current day and time Hold for 5 seconds. When “M” (Monday) begins flashing, use to select the current day. Press OK button and the hour digits begin flashing. Use to select the current hour. Press OK button and the minute digits begin flashing. Use to select the current minute.
  • Page 16 4. Set OFF time only Press once. When “M” begins flashing, use to select the desired day to turn off the heater. Press OK button twice to skip ON time setting and enter OFF time setting. Hour and minute digits begin flashing.

  • Page 17: Temperature Limiting Control

    Temperature Limiting Control This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the heater will automatically turn OFF. To reset: 1. Unplug the power cord from the outlet. 2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes. 3.

  • Page 18: Maintenance

    Maintenance Risk of electric shock! DO NOT OPEN any panels ! No user-serviceable parts inside! ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury.
