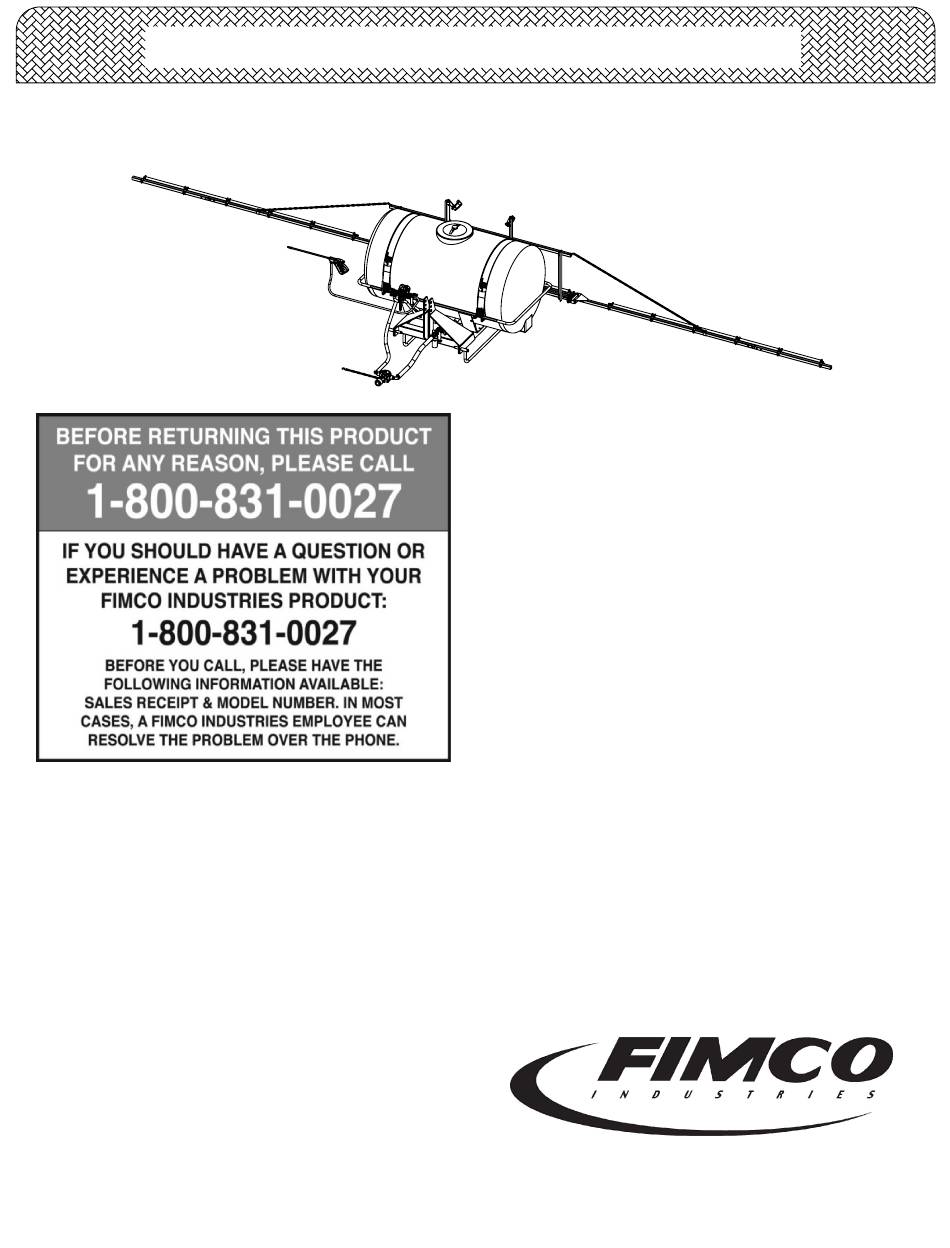

Fimco 300-3PT-1PC-TSC Owner's Manual

Owner's Manual

(300 Gallon 3-Point Carrier w/8-Row Boom, Handgun, Pump, & Coupler)
General Information
Thank you for purchasing this FIMCO product. The purpose of
this manual is to assist you in operating and maintaining your
3-Point sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.
Assembly Instructions
1. Install the tee valve sub-assembly to the 3 point carrier
valve mounting and position as shown.
2. Slip the ½" bypass hose (from the relief valve) over the
fitting on the bottom of the tank. Slide the hose clamp to
the end of the hose and secure.
3. Find the 1" x 36" pump feeder hose. Using a good
quality thread sealant, carefully thread the 1" fitting into
the strainer and the ¾" fitting into the inlet side of the
pump. Slip the hose all the way onto the fittings and
secure with the hose clamps.
4. Attach the ¾" hose coming off the valve assembly to
the output side of the pump by threading the ¾" fitting into
the pump and securing with the hose clamp. Remember
to use sealant.
5. The roller pump is included with the assembly. Attach
the adapter, the torque chain and S-hook to the pump as
shown. It is intended for this pump to be mounted directly
to the tractor PTO. The torque chain needs to be secured
to the tractor to keep the pump from spinning.
6. Wrap the handgun hose around the hose hangers
which are attached to the tank straps.
7. Using sealant thread the gauge into the top of the tee
valve assembly.
8. Mount the upright angles to the inside of the mounts on
the 3-point carrier using the supplied ½" bolts and nuts.
Attach the backrack to the upright angles using the
square U-bolts and nuts. Note: the backrack can be
mounted in either a high or low position and the uprights
can be adjusted for desired height. Attach the U-brackets
as shown.
9. Loosen the eye bolts and remove the 7" hinge bolts.
Line up the outer booms and reassemble the hinge bolt
through the outer boom yoke, the hinge casting and the
spring connector. Tighten the eye bolt until the spring is at
the desired tension. Lock the eye bolt in place with the
inner whiz flange locknut. Bolt on the boom extensions
using the 3/8" X 1-3/4" bolts and hex lock nuts.
